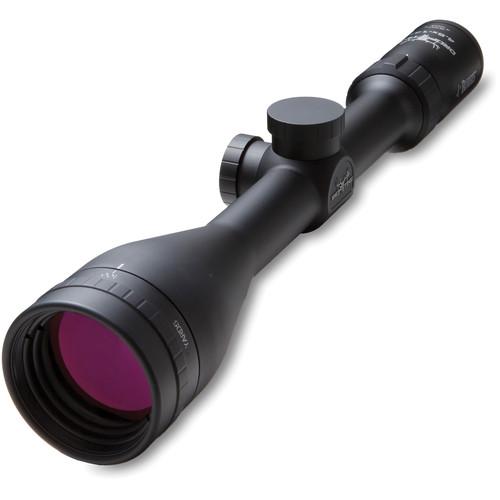

User Manual for Burris Optics 4.5-14x42 DropTine Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4.5-14x42 DropTine Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 4.5-14x42 DropTine Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 4.5-14x42 DropTine Riflescope from Burris Optics is a versatile, general-purpose scope for medium to long-range use. With anti-reflection, multicoated optics, views through it are bright and clear, even in low-light conditions, with high contrast and true color representation. Precise 1/4 MOA per click shot correction helps you get on-target faster, and its 40 MOA windage/elevation adjustment range will allow you to compensate for most conditions and terrain. This riflescope also features a third turret for parallax adjustment to increase accuracy at longer ranges.The DropTine scope employs the G2B Mil-Dot reticle, placed on the second (rear) focal plane. To match the turret's MRAD scale, is the G2B Mil-Dot reticle. This is a duplex crosshair-style with hashmarks set 1 MRAD apart and dots between. Developed for precision shooters, the reticle provides the tools to accurately range, measure distances, correct shot placement, and calculate wind hold-off. - Optical Performance
-
- 4.5x - 14x zoom magnification
- 42mm diameter objective lens
- Anti-reflection Hi-Lume multicoated optics for reduces glare and increases light transmission for bright and clear images with high contrast and true color transmission
- 22-7.5' field of view at 100 yd
- G2B Mil-Dot Reticle
-
- MRAD based duplex crosshair-style reticle
- Hashmarks set at 1 MRAD intervals with dots between on both axes
- Hashmarks and dots can be used for ranging, distance calculations, and hold-off for wind
- Reticle placed on the second (rear) focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 50 MOA windage/elevation adjustment range
- Capped low-profile turrets can be re-zeroed after initial sighting
- Fast focus eyepiece with up to 3.8" eye relief
- Construction Details
-
- Aluminum housing, with 1" one-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
- Double-spring tensioned for shock and recoil resistance
UPC: 000381000781 In the Box Burris Optics 4.5-14x42 DropTine Riflescope (G2B Mil-Dot Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4.5-14x42 DropTine Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200078 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 42 mm | | Field of View | 4.5x: 22' @ 100 yd / 7.3 m @ 100 m
14x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 9 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | G2B MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13" / 33 cm | | Weight | 18 oz / 510.3 g |
