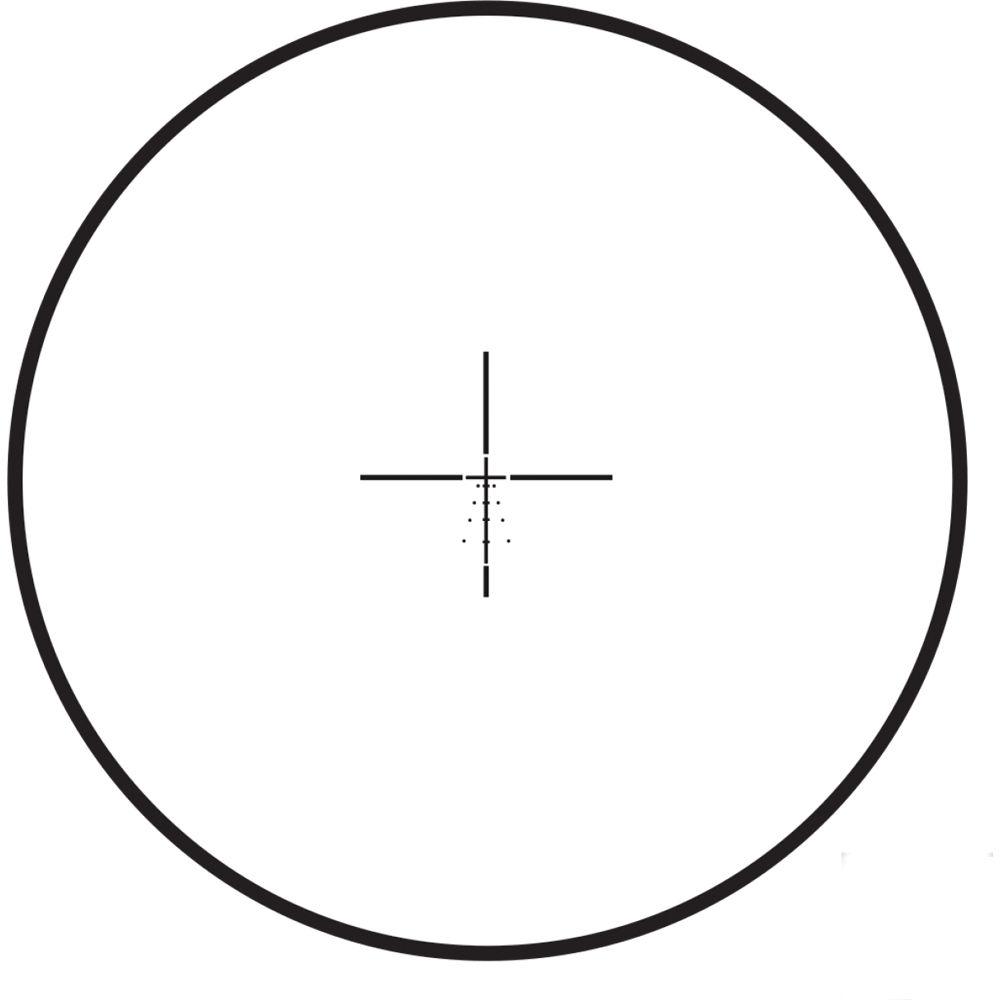

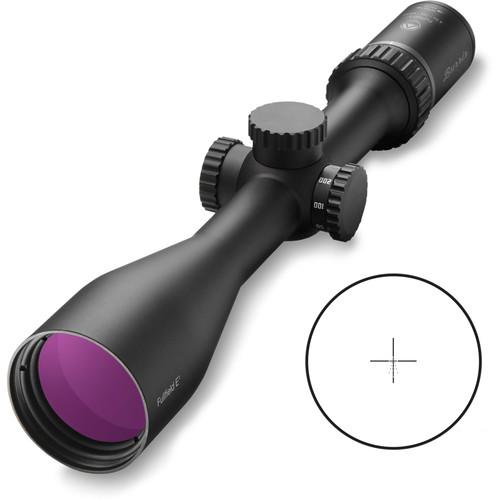

Product description The waterproof and fogproof 4.5-14x42 Fullfield E1 Riflescope from Burris Optics features a Ballistic Plex E1 Reticle, index-matched Hi-Lume multi-coated optics, a quick zoom eyepiece and a shock-resistant single-piece maintube. The Hi-Lume index-matched anti-reflection coatings deliver high light transmission, improve visibility in low-light conditions, and reduce glare and ghost images. Among other optical performance highlights are a 4.5-14x zoom and a 3.1-3.8" long eye relief. To compensate for ballistics and wind drift, the riflescope offers a 40 MOA windage and elevation range with a 1/4 MOA impact point correction. Located in the second focal plane is the Ballistic Plex E1 Reticle. It claims minimal space in your field of view and features a fine, small crosshair with vertical hash marks for aiming from 100 to 500 yd and cascading dots to help adjust for trajectory compensation wind. The dots also represent hold-offs for 10 mph winds with accuracy of +/- 1.5" at 400 yards.

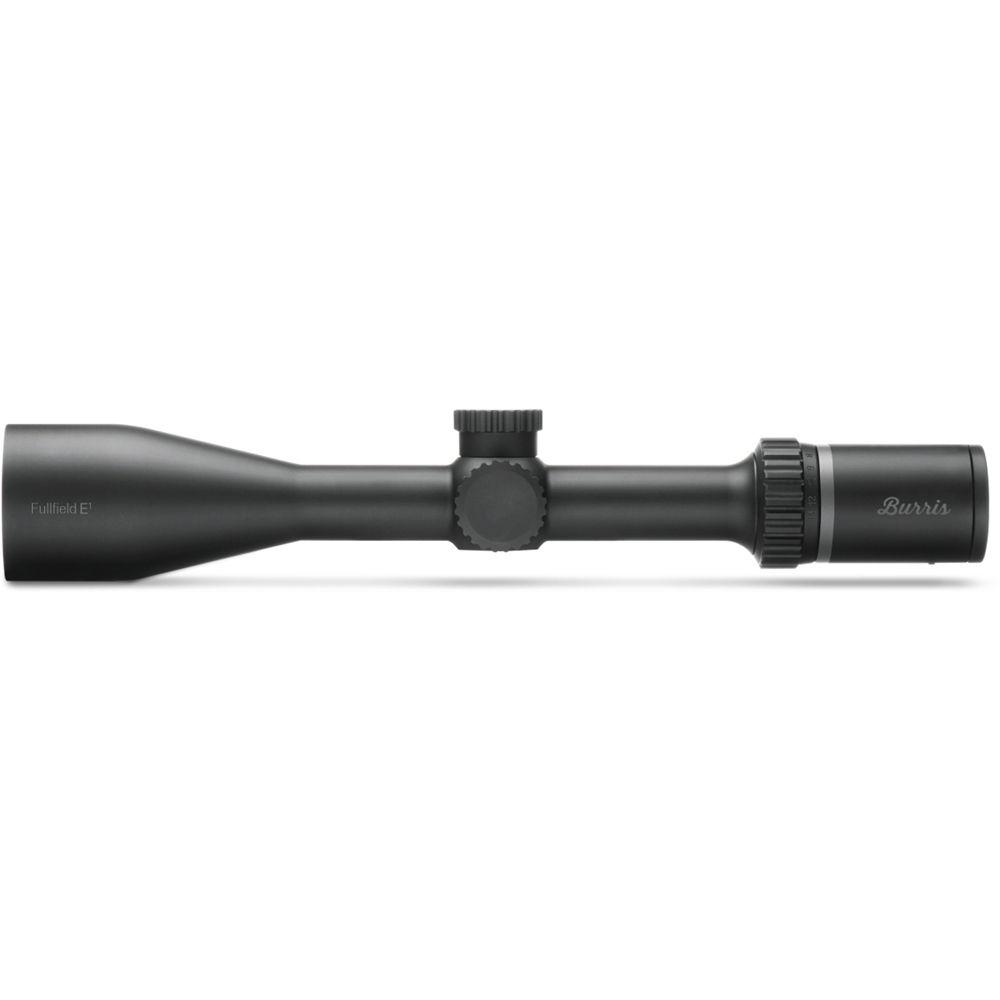

The waterproof and fogproof housing features a single-piece aluminum maintube with a hard anodized matte black finish. The eyepiece offers a quick zoom and focus, which allow for fast target acquisition. The knurled zoom ring provides a fast adjustment. - Ballistic Plex E1 Reticle
-
- 2nd focal plane
- Hash marks on lower vertical line for dead-on aiming from 100 to 500 yd
- Trajectory compensation and cascading dots help adjust for wind
- Dots represent hold-off for 10 mph wind with an accuracy of +/- 1.5" at 400 yd
- Parallax-free from 50 yd to infinity
- Optical Performance
-
- High-quality optical glass offers excellent image brightness and clarity
- Index-matched Hi-Lume multi-coated optics improve visibility in low light
- Objective diameter: 42mm
- Magnification: 4.5 - 14x
- Linear field of view: 22 - 7.5' @ 100 yd
- Eye relief: 3.1 to 3.8"
- Use and Handing
-
- 40 MOA windage and elevation adjustment range
- 1/4 MOA per click impact point correction
- Construction Details
-
- 1" Maintube diameter
- Single-piece aluminum
- Anodized matte black finish
- Finger-operated windage and elevation turrets
- Ergonomic side focus allows easy-to-reach parallax adjustment
- Steel-on-steel adjustment gear ensures repeatability
- Double spring-tension system holds zero through shock, recoil, and vibrations
- Knurled zoom eyepiece for easy adjustments
- Eyepiece accepts flip-up lens covers
- Nitrogen-purged fogproof
- Recoil-resistant
- Waterproof
UPC: 000381003386 In the Box Burris Optics 4.5-14x42 Fullfield E1 Riflescope (Ballistic Plex E1 Reticle, SFP) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4.5-14x42 Fullfield E1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200338 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 42 mm | | Field of View | 4.5x: 22' @ 100 yd / 7.3 m @ 100 m
14x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 9 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic Plex E1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.6" / 32 cm | | Weight | 15.3 oz / 433.8 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 14.7 x 3.6 x 3.2" |
