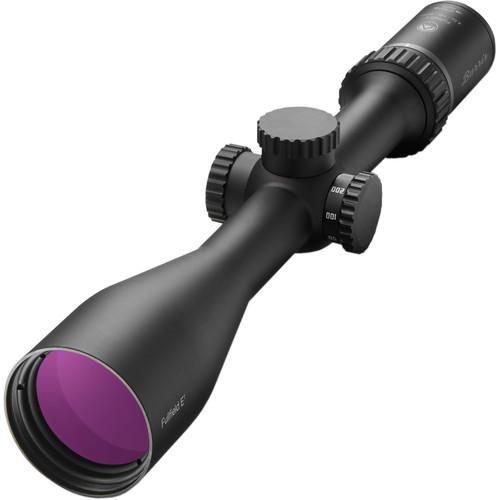

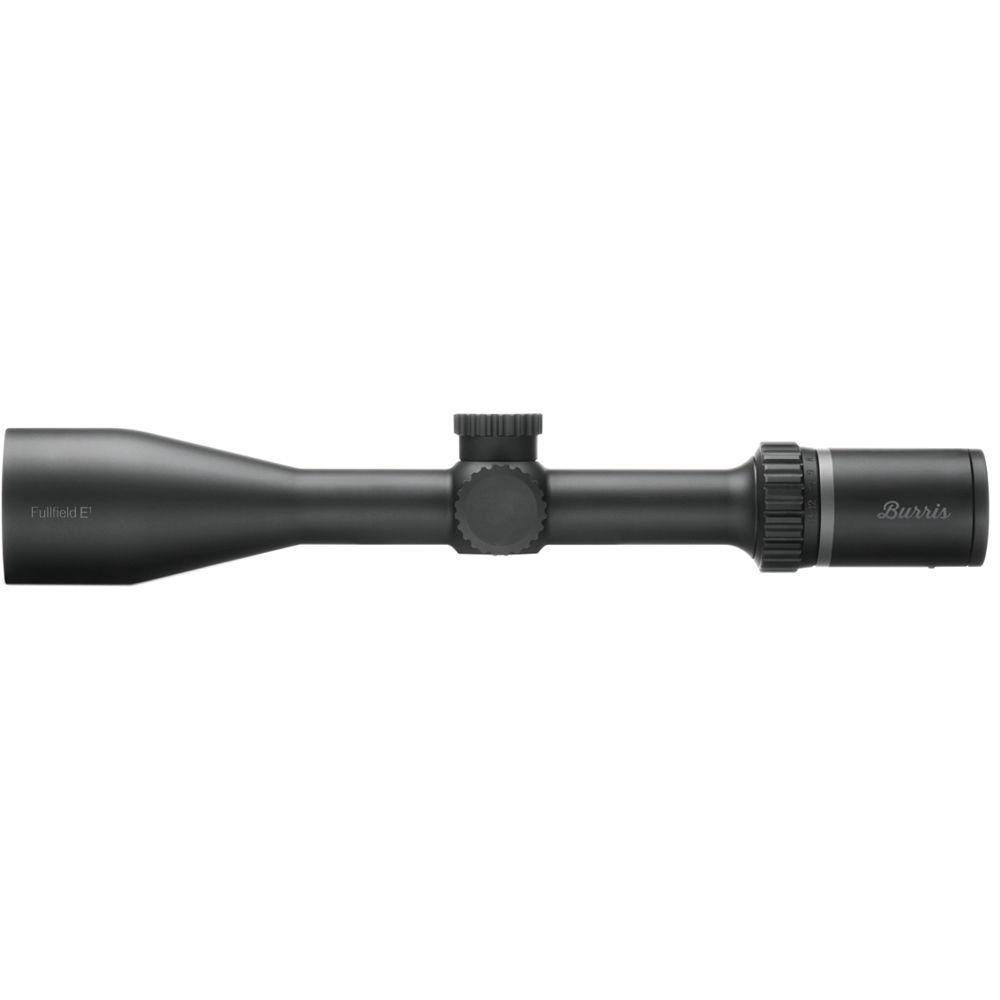

User Manual for Burris Optics 4.5-14x42 Fullfield E1 Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4.5-14x42 Fullfield E1 Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 4.5-14x42 Fullfield E1 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

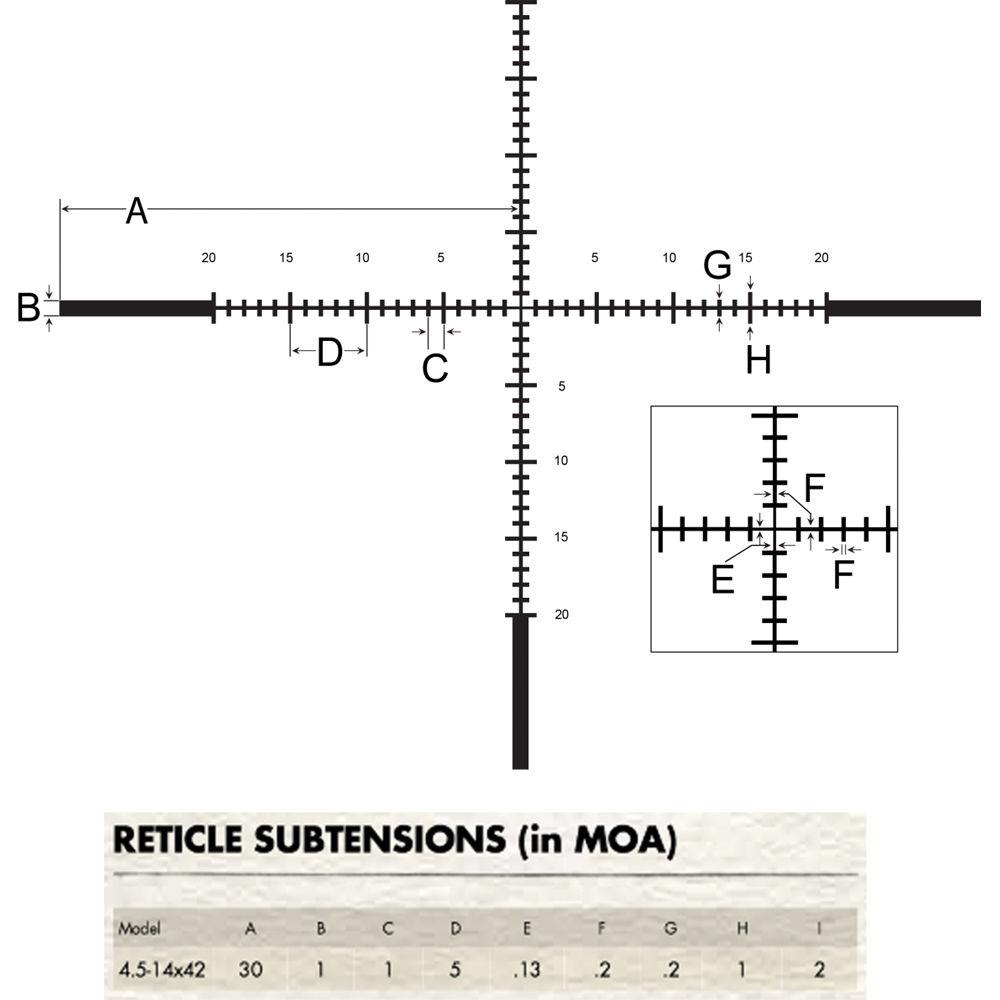

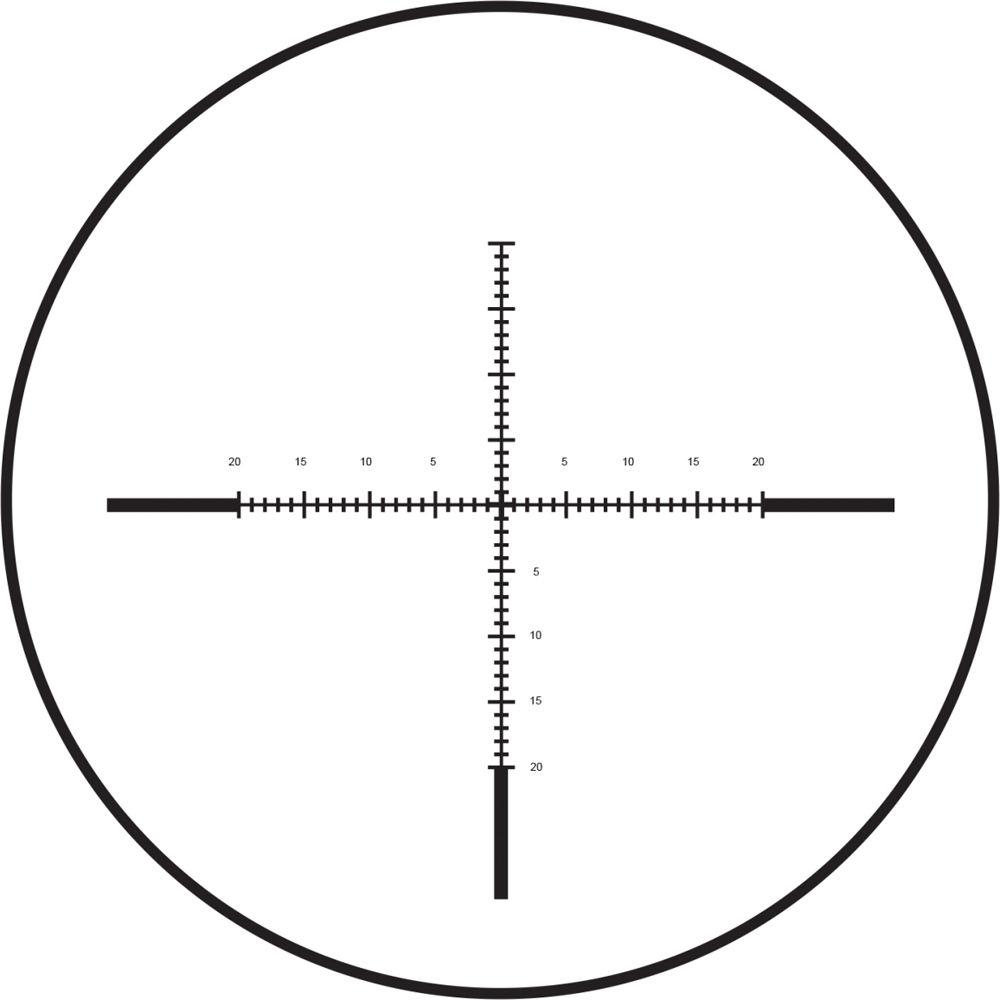

Product description The waterproof and fogproof 4.5-14x42 Fullfield E1 Riflescope from Burris Optics features a Long-Range MOA Reticle, index-matched Hi-Lume multi-coated optics, a quick zoom eyepiece and a shock-resistant single-piece maintube. The Hi-Lume index-matched anti-reflection coatings deliver high light transmission, improve visibility in low-light conditions, and reduce glare and ghost images. Among other optical performance highlights are a 4.5-14x zoom and a 3.1-3.8" long eye relief. To compensate for ballistics and wind drift, the riflescope offers a 40 MOA windage and elevation range with a 1/4 MOA impact point correction. Located in the second focal plane is the Long-Range MOA Reticle. It features three short, medium-weight suspended posts and a heavily populated thin crosshair with bar-shaped markings at 1 MOA intervals. The crosshair spans 40 MOA top-to-bottom and left-to-right and together with posts offers clean and unobtrusive views of your targets.
The waterproof and fogproof housing features a single-piece aluminum maintube with a hard anodized matte black finish. The eyepiece offers a quick zoom and focus, which allow for fast target acquisition. The knurled zoom ring provides a fast adjustment. - Long-Range MOA Reticle
-
- 2nd focal plane
- Increases accuracy for long-range shooting
- Ultra-fine center area and dot help engage targets with extreme precision
- MOA-based design increases exactness of long-range shooting and reduces clutter and distraction
- Provides accuracy for wind hold-off, range estimation, and impact measurement
- Three short, medium, suspended posts
- Heavily populated thin crosshair with a 40 MOA span in each axis
- Bar-shaped markings with 1 MOA intervals
- Parallax-free from 50 yd to infinity
- Optical Performance
-
- High-quality optical glass offers excellent image brightness and clarity
- Index-matched Hi-Lume multi-coated optics improve visibility in low light
- Objective diameter: 42mm
- Magnification: 4.5 - 14x
- Linear field of view: 22 - 7.5' @ 100 yd
- Eye relief: 3.1 to 3.8"
- Use and Handing
-
- 40 MOA windage and elevation adjustment range
- 1/4 MOA per click impact point correction
- Construction Details
-
- 1" Maintube diameter
- Single-piece aluminum
- Anodized matte black finish
- Finger-operated windage and elevation turrets
- Ergonomic side focus allows easy-to-reach parallax adjustment
- Steel-on-steel adjustment gear ensures repeatability
- Double spring-tension system holds zero through shock, recoil, and vibrations
- Knurled zoom eyepiece for easy adjustments
- Eyepiece accepts flip-up lens covers
- Nitrogen-purged fogproof
- Recoil-resistant
- Waterproof
UPC: 000381003447 In the Box Burris Optics 4.5-14x42 Fullfield E1 Riflescope (Long-Range MOA Reticle, SFP) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4.5-14x42 Fullfield E1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200344 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 42 mm | | Field of View | 4.5x: 22' @ 100 yd / 7.3 m @ 100 m
14x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 9 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.6" / 32 cm | | Weight | 15.3 oz / 433.8 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 14.8 x 3.6 x 3.3" |
