User Manual for Burris Optics 4.5-14x42 Fullfield II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4.5-14x42 Fullfield II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 4.5-14x42 Fullfield II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

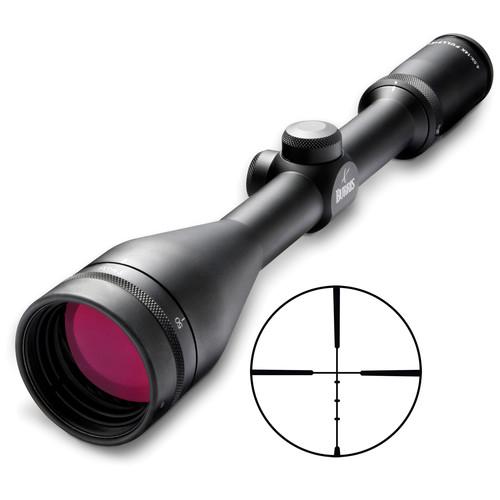

Product description Ideally suited for mid to long-range use, the Burris Optics 4.5-14x42 Fullfield II Riflescope is outfitted with a wide and versatile zoom range and an objective that balances light-gathering capabilities without being oversized. Its minimalist design and ease-of-use is carried through with textured zoom and adjustable objective parallax correction collars, low-profile capped turrets, and an uncluttered ranging duplex crosshair reticle. To get you on-target faster and easier, impact point correction is made at 1/4 MOA per click with a total adjustment range of 40 MOA on both the windage and elevation. Its 6061 T-6 aluminum housing features a 1" one-piece main-tube with a corrosion and scratch-resistant matte-black anodized finish. The optical tube is nitrogen-filled and O-ring sealed for water and fogproof performance in all weather and conditions. - Optical Performance
-
- 4.5-14x zoom magnification
- 42mm objective lens
- Index-matched, Hi-Lume multi-coated optics:
- Increases light transmission
- Improves color rendition and contrast
- Reduces glare
- 22-7.5' field of view at 100 yards
- 3.1-3.8" eye relief
- 9-3mm exit pupil
- Ballistic Plex Reticle
-
- Duplex crosshair ranging design
- Long, thick outer posts are easily visible, especially in low light
- Short, thin center hairs provide a precise aiming point without obstructing target
- Longer lower vertical hair with dots for ballistic drop compensation out to 500 yards
- Parallax-free to 50 yards
- Reticle placed on rear (second) focal plane
- Use and Handling
-
- Turrets:
- Capped to prevent dirt and mud from entering mechanism
- Caps also prevent accidental adjustments when moving through dense brush
- Resettable to zero after initial sighting
- 1/4 MOA per click impact point correction
- ±20 MOA windage and elevation adjustment
- Objective parallax adjustment from 50 yards to infinity
- Construction Details
-
- 1" one-piece main-tube
- 6061 T-6 aluminum housing
- Scratch and corrosion-resistant matte black anodized finish
- Nitrogen-filled, water and fogproof
- Double, internal-spring tension system holds zero through shock, recoil, and vibrations
- Weight: 18 ounces
UPC: 000381001832 In the Box Burris Optics 4.5-14x42 Fullfield II Riflescope (Ballistic Plex Reticle, Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4.5-14x42 Fullfield II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200183 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 42 mm | | Field of View | 4.5x: 22' @ 100 yd / 7.3 m @ 100 m
14x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 9 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
