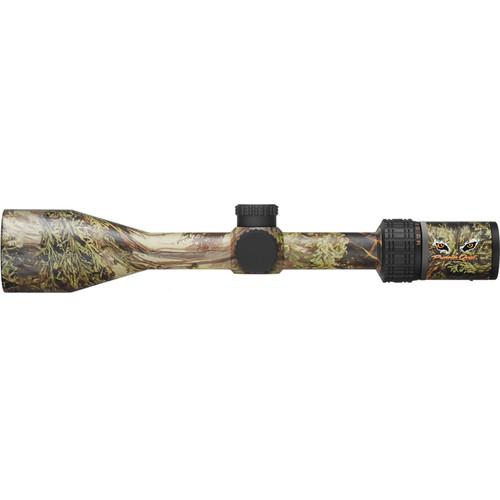

User Manual for Burris Optics 4.5-14x42 Predator Quest Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4.5-14x42 Predator Quest Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 4.5-14x42 Predator Quest Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The camo waterproof and fogproof 4.5-14x42 Predator Quest Riflescope from Burris Optics features a Ballistic Plex E1 Reticle, multicoated optics, a quick zoom eyepiece and a shock resistant main tube. The anti-reflection coatings deliver high transmission of light and reduce glare and ghost images. Among other optical performance highlights are a 4.5-14x zoom and a 3.1 - 3.8" long eye relief. To allow you to counter setbacks from bullet drop and wind drift, the riflescope offers a 40 MOA windage and elevation range with a 1/4 MOA impact point correction. The Ballistic Plex E1 Reticle, located in the second focal plane, is intended for a long-distance shooting with hash marks calibrated for aiming from 100 to 500 yards.
The waterproof and fogproof housing features a single piece aluminum main tube with a camo finish. The eyepiece offers a quick zoom and focus, which allow for a fast target acquisition. The knurled zoom ring provides a fast adjustment. Included with the scope are protective lens caps. - Ballistic Plex E1 Reticle
-
- Second focal plane
- Intended for long-range shooting
- Hash marks on lower crosshair are calibrated for aiming from 100 to 500 yd
- Dots represent hold off for a 10 mph crosswind
- Optical Performance
-
- Objective diameter: 42mm
- Magnification: 4.5 - 14x
- Linear field of view: 22 - 7.5' @ 100 yd
- Anti-reflective coatings deliver high transmission
- Eye relief: 3.1 to 3.8"
- 40 MOA windage and elevation adjustment range
- 1/4 MOA per click impact point correction
- Construction Details
-
- Main tube diameter: 1"
- Single piece aluminum tube with a camo finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen purged fogproof
- Shock resistant
- Waterproof
UPC: 000381003713 In the Box Burris Optics 4.5-14x42 Predator Quest Riflescope (Camo, Ballistic Plex E1, SFP) - Protective Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4.5-14x42 Predator Quest Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200371 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 42 mm | | Field of View | 4.5x: 22' @ 100 yd / 7.3 m @ 100 m
14x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4.5x: 9 mm
14x: 3 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic Plex E1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13.4" / 34.1 cm | | Weight | 16.7 oz / 473 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 15.4 x 4.2 x 4.1" |
