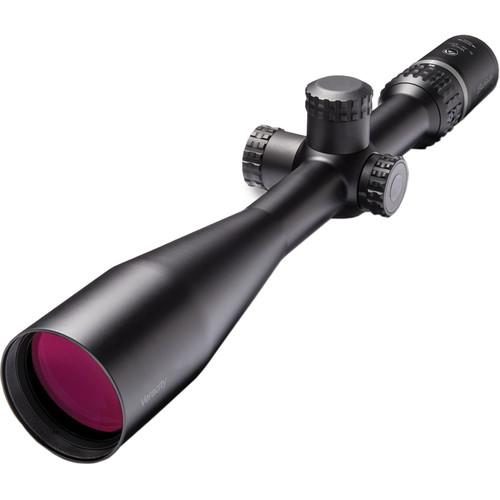

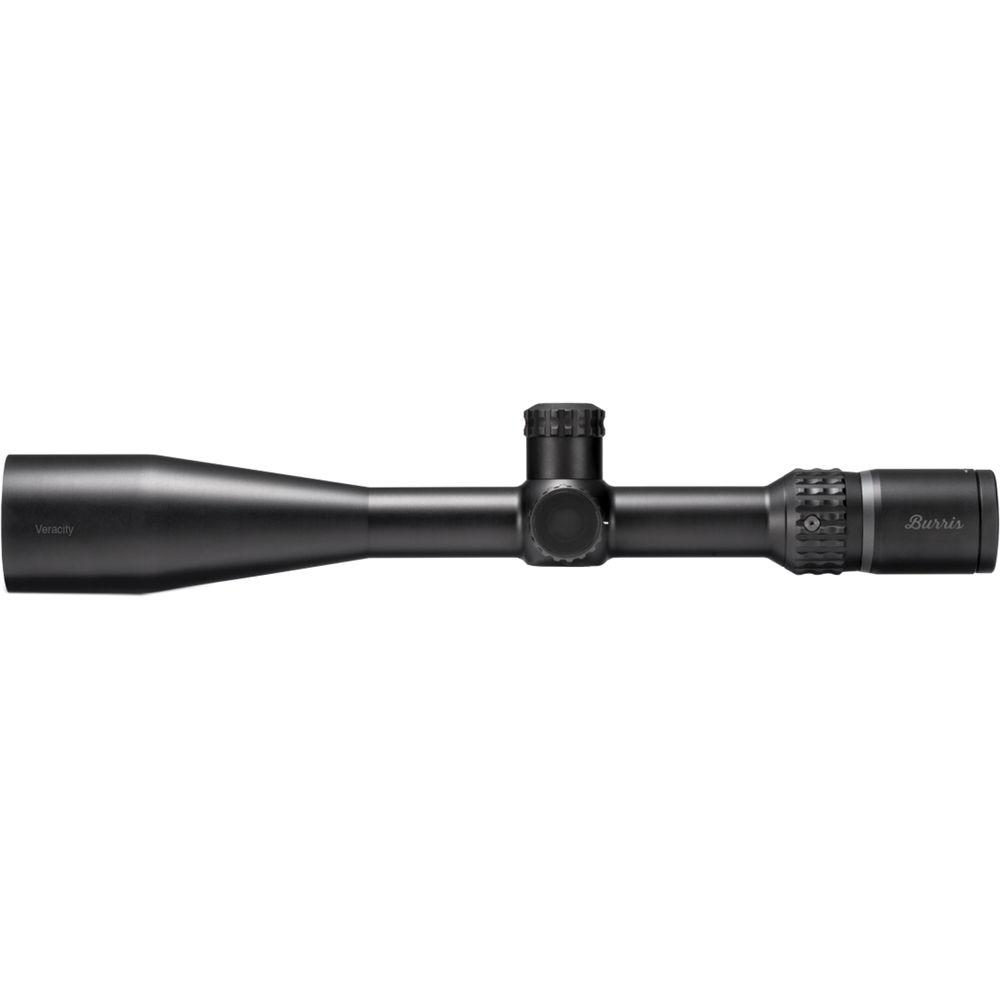

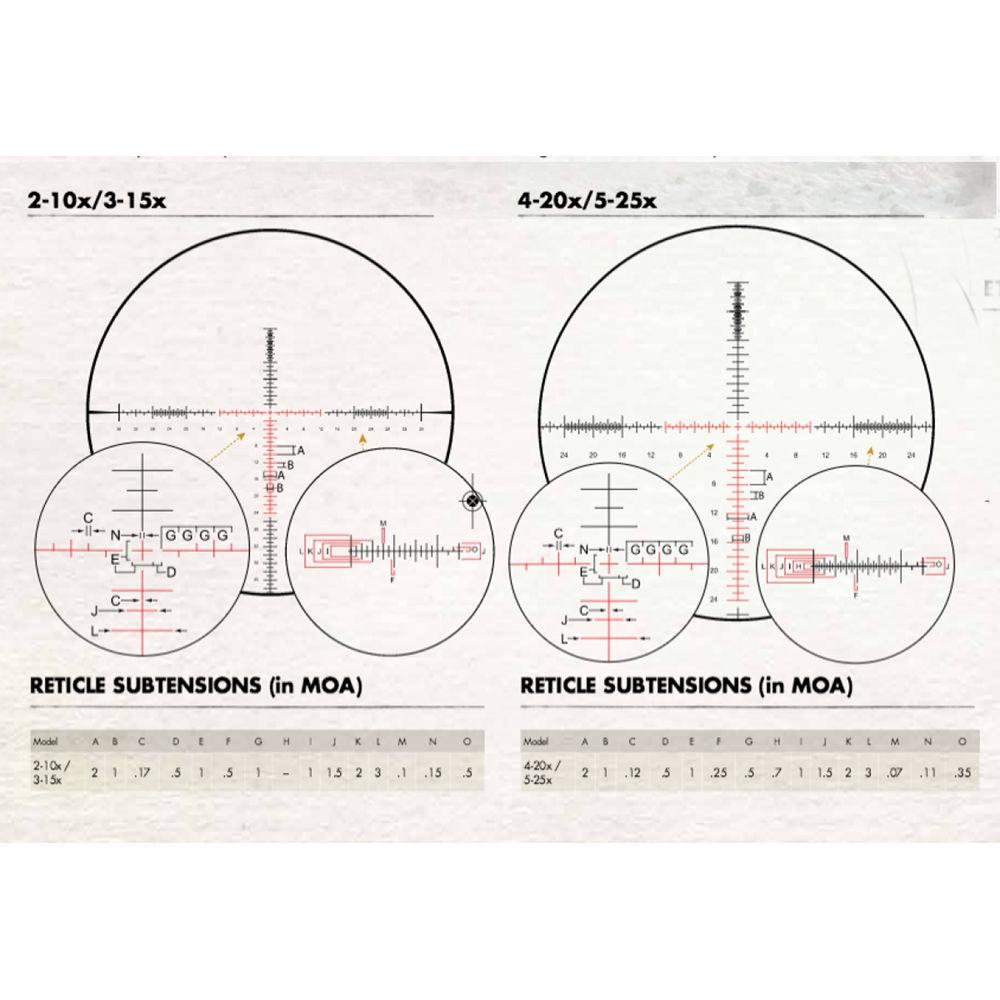

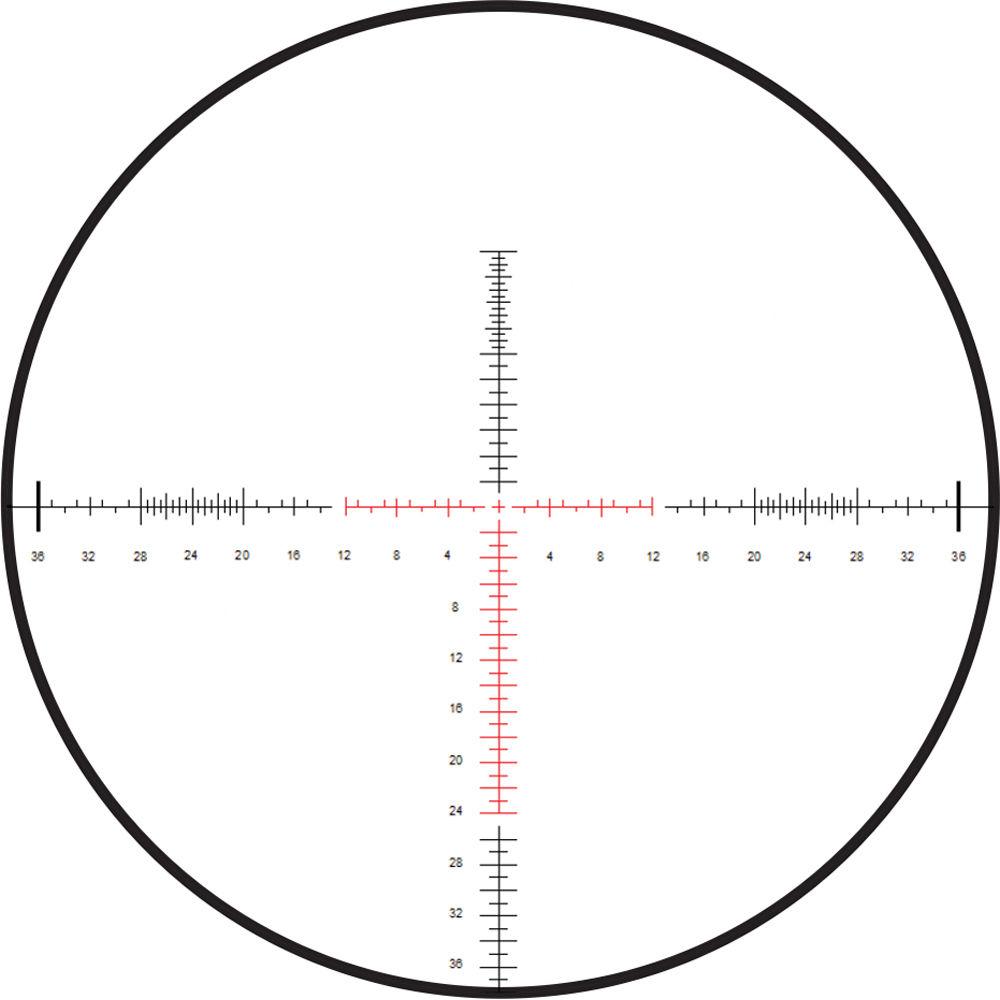

Product description Burris Optics combines state-of-the-art engineering with refinements for accuracy in the 5-25x50 Veracity Riflescope. This riflescope is optimized for hunting prairie predators, elk, or dangerous game. The optical system offers bright and clear images, with high contrast and true colors, thanks to the indexed-matched multi-coated optics. To compensate for wind and ballistics you have adjustable windage and elevation and a 1/4 MOA impact point correction. One of the central features of the scope is the Illuminated SCR Reticle. It is located in the first focal plane and allows you to estimate accurate ranges at any magnification, while giving both ballistic drop compensation and windage reference points. The reticle features a thin crosshair, heavily populate with bar-shaped markings: 1-MOA holdover lines, 1/2-MOA and 1-MOA windage hold-off lines, and 1/4-MOA ranging brackets on the crosshairs. This pattern is designed improve precision for long-range competition without adding clutter or distraction.
Another definite highlight of this optic is the Modular Adjustment Dial (M.A.D.)System that allows you to choose from competition-style exposed knobs, capped knobs, or custom knobs on both windage and elevation adjustments in order to match precisely the trajectory of your ammunition.
The housing is made of lightweight and durable aluminum with a corrosion-resistant anodized finish. It features a 30mm single-piece maintube for resistance to shock and recoil, nitrogen filling for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Illuminated SCR MOA Reticle
-
- 1st focal plane
- Maintains ranging proportions with zoom
- For long-range special competitions
- 1-MOA holdover lines
- 1/2-MOA and 1-MOA windage hold-off lines
- 1/4-MOA ranging brackets on the crosshairs: at the top, left and right extremes
- Parallax-free from 50 yd to infinity
- Optical Performance
-
- High quality optical glass improves image brightness and clarity
- 50mm objective lens collects more light
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 21-4.3' at 100 yd
- Use and Handing
-
- 1/4 MOA impact point correction
- 30 MOA windage range
- 64 MOA elevation range
- Construction Details
-
- 30mm single-piece maintube
- Lightweight aluminum housing
- Corrosion-resistant anodized finish
- Double spring-tension system resists shock, recoil, and vibrations
- Side focus parallax correction turret
- Fast focus eyepiece with 4.3" eye relief
- Modular Adjustment Dial (M.A.D.) System
- Re-engineered low-profile windage and elevation turret adjustment system
- Accepts competition-style exposed knobs or capped knobs
- Allows custom knobs to match the trajectory of your ammunition
- Zero Click Stop function
- Nitrogen-filled, fogproof
- Waterproof, sealed with O-rings
In the Box Burris Optics 5-25x50 Veracity Riflescope with M.A.D. Knob System (Illuminated SCR MOA) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 5-25x50 Veracity Riflescope with M.A.D. Knob System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200652 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 21' @ 100 yd / 7 m @ 100 m
25x: 4.3' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
25x: 2 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | SCR MOA Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 64 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.4" / 416.6 mm | | Weight | 28.2 oz / 799.5 g |
