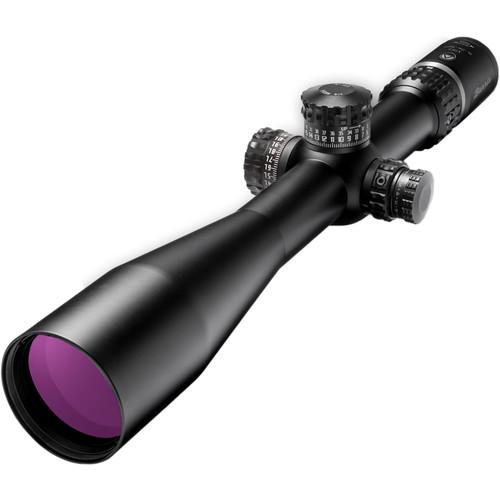

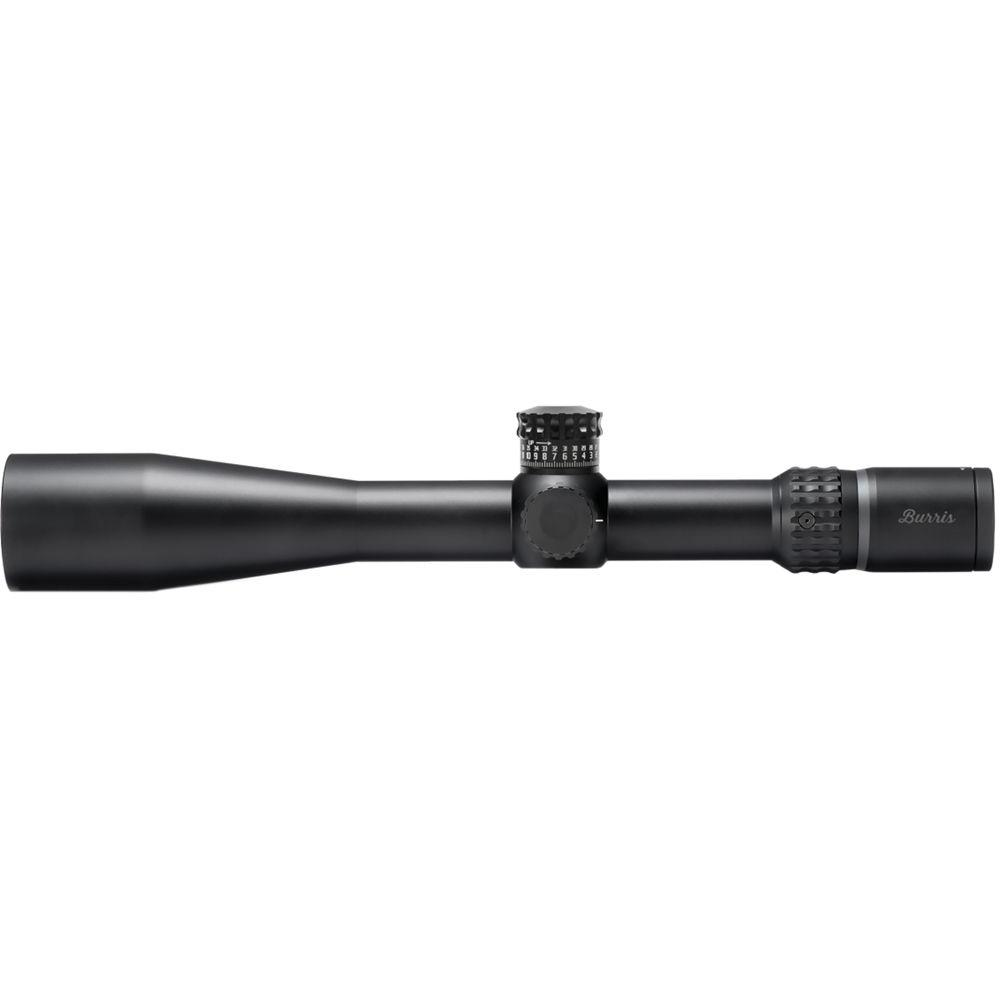

Product description Gain a tactical advantage with Burris Optics' 5-25x50 XTR II Side Focus Riflescope. This riflescope is intended for tactical and competitive long-range shooters, and represents a robust, precise optic with a 5x optical system and a thicker maintube (25% more) than the original XTR riflescope. The lenses feature index-matched fully multi-coated surfaces that deliver great clarity and visibility in most lighting or environmental conditions. In addition to excellent image quality, this optic provides a generous maximum eye relief of 4.25", windage and elevation ranges, and an illuminated G2B Mil-Dot reticle. This 1st focal plane reticle features a MIL-based modified duplex style. It offers four posts with brackets and an illuminated milling crosshair for ranging targets, and is intended for engaging targets at medium to long ranges in tactical situations.
Designed for a lifetime of service, the 6061-T6 aluminum housing (with a single-piece 34mm maintube) is waterproof, fogproof, and shock-resistant. Featuring Burris' triple internal spring-tension system, it will hold zeros through hard recoil and impact. Also noteworthy are its graduated and finely knurled XT-100 windage and elevation turrets with 10 MILs per revolution and Zero Click Stop technology that permits for a quick and easy return to zero. The side focus parallax corrector offer a range from 50 yd to infinity, helping to improve precision aiming by removing ambiguity. - Optical Performance
-
- 5x optical system, resulting in a 5 - 25x total zoom
- 50mm objective delivers bright images even in challenging light conditions
- High-grade optical glass provides excellent brightness and clarity with lasting durability
- Index-matched, fully multi-coated optics increase transmission and reduce glare
- Linear field of view: 21.0 - 4.3' at 100 yd

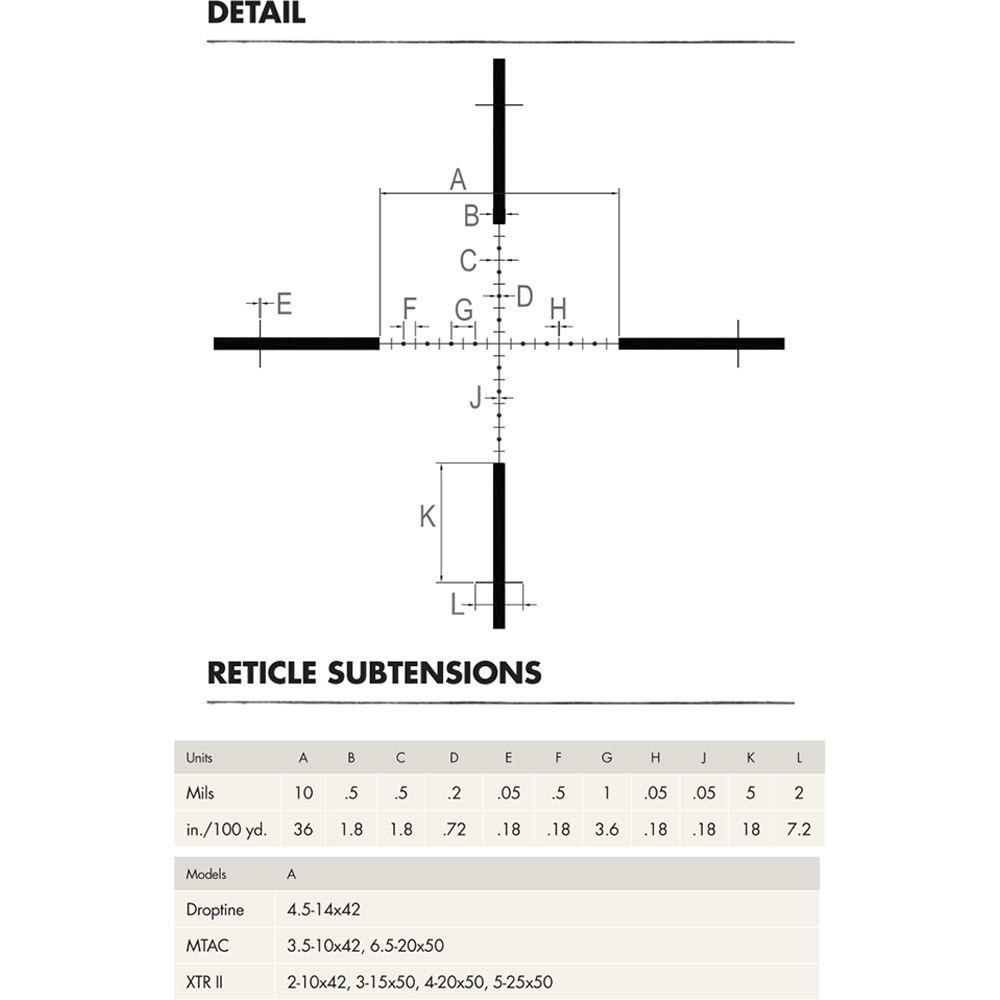

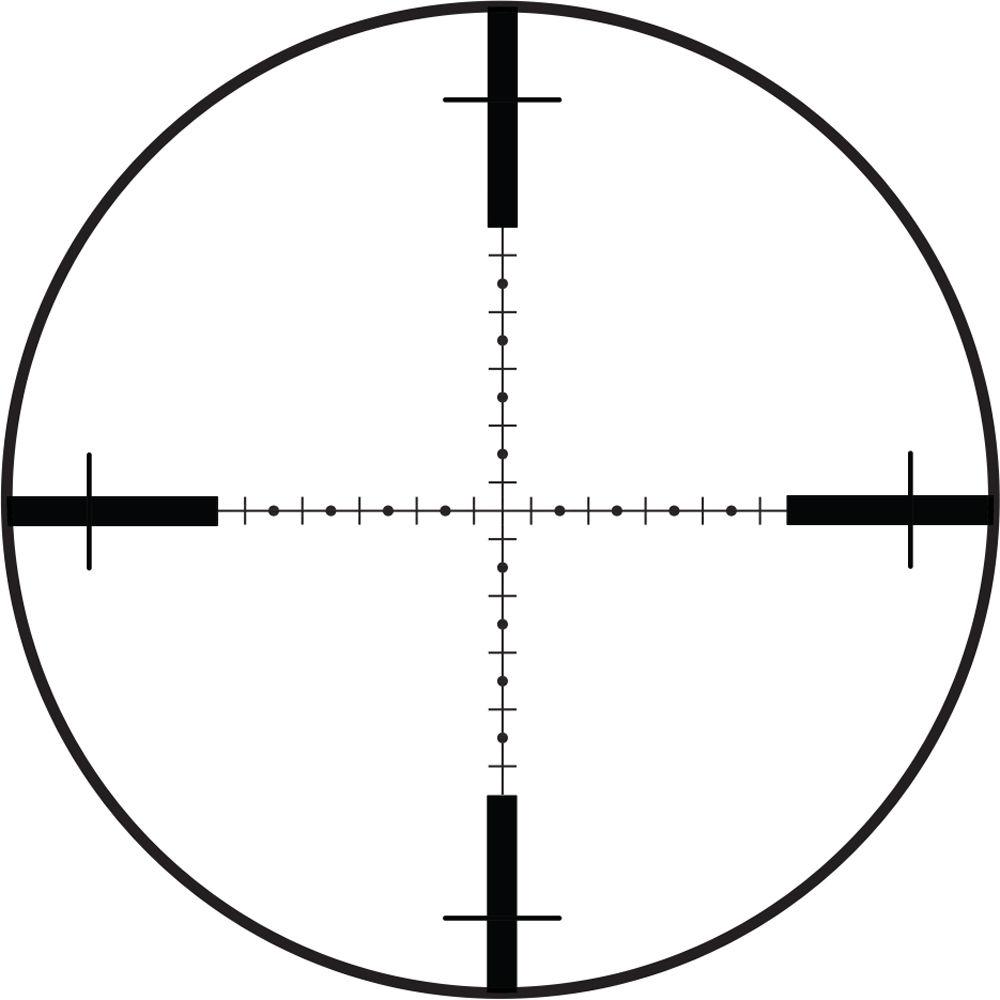

- Illuminated G2B Mil-Dot Reticle
-
- 1st focal plane reticle
- MIL-based modified duplex style
- Four posts with brackets and an illuminated milling crosshair for ranging
- For engaging targets at medium and long ranges in tactical situations
- Parallax correction from 50 yd to infinity
- Use and Handling
-
- 1/10 MIL impact point correction
- 16.3 MILs Windage / 26.7 MILs Elevation
- Eye relief: 3.5 - 4.3"
- Exit pupil: 10.0 - 2.0 mm
- Construction Details
-
- 6061-T6 aluminum
- 34mm single-piece maintube
- XT-100 graduated, finger-operated turrets allow 10 MILs per rotation
- Side focus parallax correction knob also has a reticle brightness adjustment
- Zero Click Stop adjustments allow to revert to zero quickly and easily
- Burris triple internal spring-tension system holds zeros through heavy recoil and impact
- Corrosion-resistant anodized finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen-filled, fogproof
In the Box Burris Optics 5-25x50 XTR II Side Focus Riflescope (Illuminated G2B Mil-Dot Reticle, Matte Black) CR-2032 Battery 2 x Protective Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 5-25x50 XTR II Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201053 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 21' @ 100 yd / 7 m @ 100 m
25x: 4.3' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
25x: 2 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | G2B MIL Dot Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 16.3 MIL | | Elevation Adjustment | 26.7 MIL | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.3" / 41.4 cm | | Weight | 32.1 oz / 910 g |
