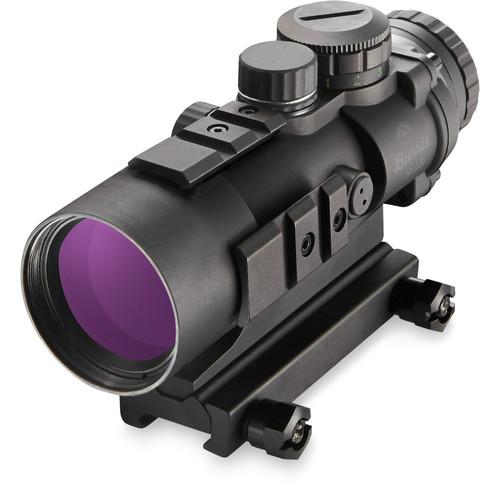

User Manual for Burris Optics 5x36 AR-536 Rifle Sight Click to enlarge the picture
Contents of the user manual for the Burris Optics 5x36 AR-536 Rifle Sight
- Product category: Red Dot/Holographic Sights Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Red Dot/Holographic Sights
|
User manual for the Burris Optics 5x36 AR-536 Rifle Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description Get an upper hand in close quarters combat with Burris Optics' 5x36 AR-536 Rifle Sight. This battle-ready sight offers a notable 5x zoom, bright and clear fully multi-coated optics, and a Ballistic AR reticle to help you make laser-sharp placements. This reticle is optimized for 5.56/.223 cartridges and features an illuminated round target horseshoe, an illuminated target dot, and a T-shaped MRAD-based crosshair — which provides compensation out to 600 yards. Its LED illumination system offers two colors, green or red, and five brightness settings for each color. With the illumination system off, the reticle provides a black aiming pattern. To remove any ambiguity while aiming, the device is set to be parallax-free at 100 yd. To account for crosswinds and ballistics, the scope also offers windage and elevation adjustments with 70 MOA ranges and 1/3 MOA per click values.
To withstand the rigors of the battlefield, hostile environments, and adverse weather, the optical system is complemented with a robust and durable aluminum housing that provides a waterproof, fogproof, and impact-resistant performance. This optic has a quick detach (QD) mount to fit any of your ammo with a Picatinny rail and offers three short Picatinny rails on both sides and the top to carry additional accessories like lasers, flashlights, or cameras. The optic also offers slip-free knurled windage and elevation knobs and an oversized reticle rheostat knob, located on the top for ambidextrous use. - Optical Performance
-
- 5x magnification
- 36mm objective diameter
- Fully multi-coated optics
- 20' at 100 yards linear field of view
- 25' close focus distance
- Reticle
-
- Ballistic AR reticle
- Optimized for 5.56/.223 cartridges
- Red or green LED illumination with 5 brightness levels
- Illuminated round target horseshoe and target dot
- T-shaped MRAD crosshair provides compensation and ranging capability out to 600 yards
- Black non-illuminated reticle pattern
- Parallax-free at 100 yards
- Use and Handling
-
- 1/3 MOA impact point correction
- 70 MOA windage and elevation adjustments
- 3.5" maximum eye relief
- Exit pupil: 7.2 mm
- Construction
-
- Anodized aluminum housing
- Capped windage and elevation turrets
- Oversized illumination adjustment knob on the top
- Three Picatinny accessory rails on the top and sides
- Quick detach (QD) Picatinny rail mount
- Waterproof and fogproof
In the Box Burris Optics 5x36 AR-536 Rifle Sight (Red-Green Ballistic AR Reticle, Matte Black) - CR-2032 Battery
- Picatinny QD Mount
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 5x36 AR-536 Rifle Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics AR-536 Specs | Magnification | 5x | | Objective Lens Diameter | 36mm | | Field of View | 20' @ 100 yard / 6.7 m @ 100 m | | Reticle | Ballistic AR reticle
LED illumination | | Parallax-Free | 100 yd / 91.4 m | | Optical Center Height | 1.6" / 40.6 mm | | Exit Pupil Diameter | 7.2 mm | | Eye Relief | 3.5 - 2.5" / 88.9 - 63.5 mm | | Close Focus | 25.0' / 7.6 m | | Mounting System | Picatinny QD mount | | Impact Point Correction | 1/3 MOA | | Windage/Elevation Adjustment | 70 MOA | | Weatherproofing | Waterproof and fogproof | | Battery | 1 x CR-2032 battery | | Length | 5.8" / 14.7 cm | | Weight | 18.8 oz / 531.6 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
