User Manual for Burris Optics 6.5-20x50 Fullfield E1 Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 6.5-20x50 Fullfield E1 Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 6.5-20x50 Fullfield E1 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

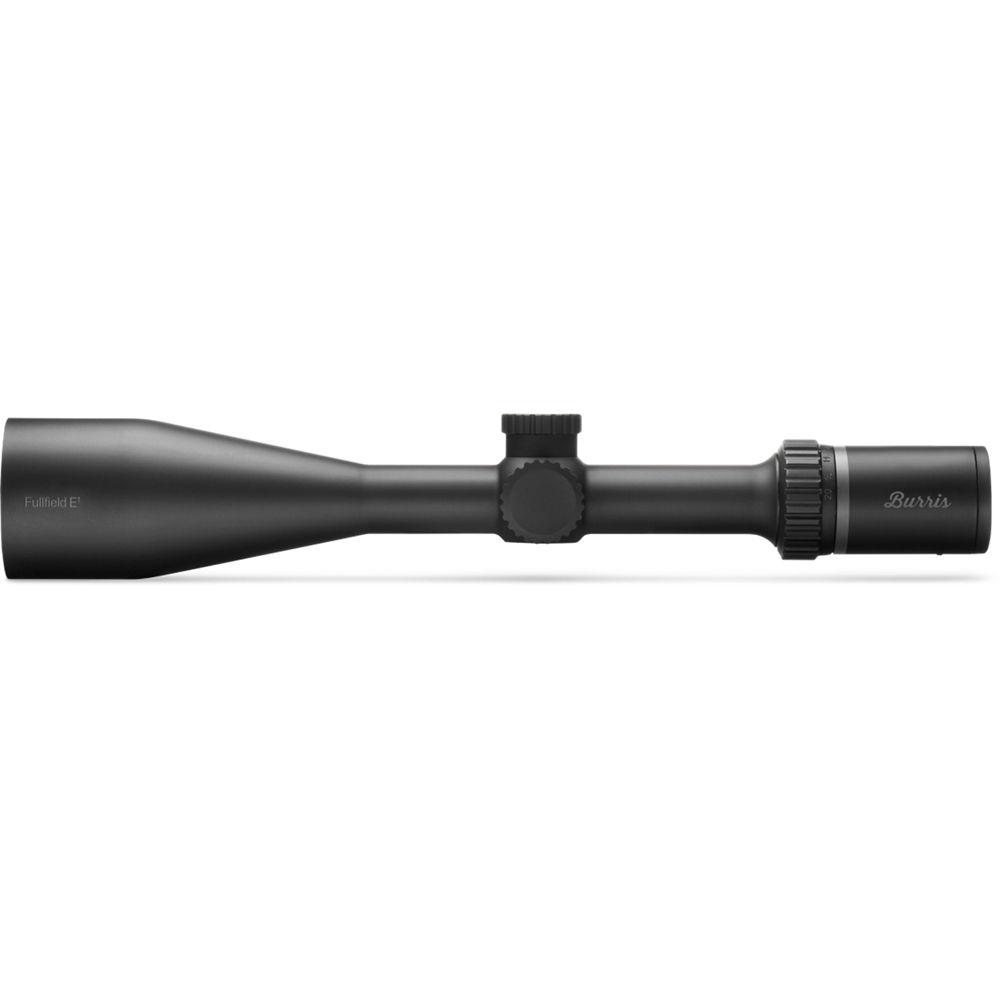

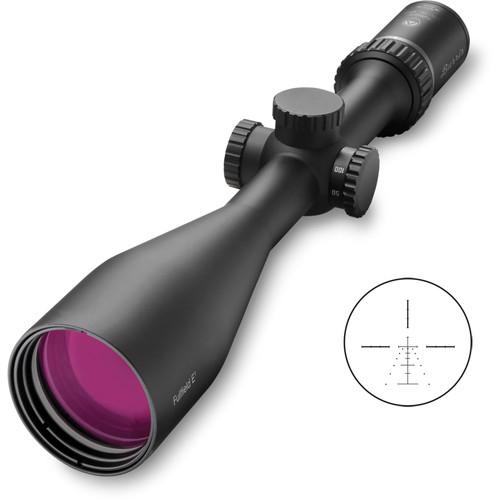

Product description The waterproof and fogproof 6.5-20x50 Fullfield E1 Riflescope from Burris Optics features second focal plane Ballistic Plex E1 Reticle, anti-reflection coated optics, a quick zoom eyepiece and a shock resistant main tube. The anti-reflection coatings deliver high transmission of light and reduce glare and ghost images. Among other optical performance highlights are a 6.5-20x zoom and a 3.1 - 3.6" long eye relief. To allow you to counter setbacks from bullet drop and wind drift, the riflescope offers a 30 MOA windage and elevation range with a 1/4 MOA impact point correction. The Ballistic Plex E1 Reticle, located in the second focal plane, does not change in size as you zoom. It is intended for a long range accurate shooting out to 700 yards and features dot hold-off marks for 10 mph crosswinds.
The waterproof and fogproof housing features a single piece aluminum main tube with a hard anodized matte black finish. The eyepiece offers a quick zoom and focus, which allow for a fast target acquisition. The knurled zoom ring provides a fast adjustment. Included with the scope are protective lens caps. - Reticle
-

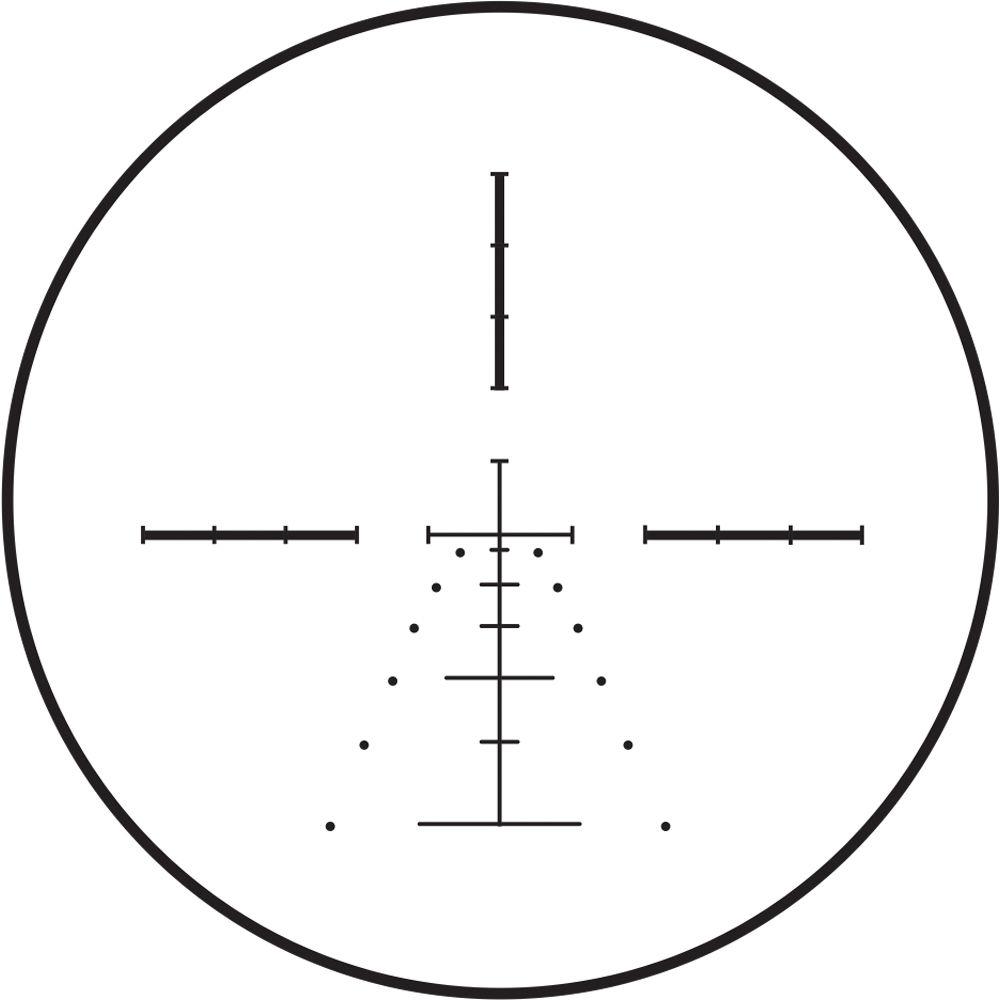

- Ballistic Plex E1 Reticle
- For long range accurate target acquisition out to 700 yd
- Dot hold-off marks to account for 10 mph crosswinds
- Second focal plane
- Optical Performance
-
- Objective diameter: 50mm
- Magnification: 6 - 20x
- Linear field of view: 18 - 6' @ 100 yd
- Anti-reflective coatings deliver high transmission
- Eye relief: 3.1 to 3.6"
- 30 MOA windage and elevation adjustment range
- 1/4 MOA per click impact point correction
- Construction Details
-
- Main tube diameter: 1"
- Single piece aluminum tube with anodized finish
- Knurled zoom eyepiece for easy adjustments
- Shock and recoil resistant
- Nitrogen purged fogproof
- Waterproof
UPC: 000381003416 In the Box Burris Optics 6.5-20x50 Fullfield E1 Riflescope (Ballistic Plex E1 Reticle, SFP) - Protective Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 6.5-20x50 Fullfield E1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200341 Specs | | | Magnification | 6.5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 18' @ 100 yd / 6 m @ 100 m
20x: 6' @ 100 yd / 2 m @ 100 m | | Exit Pupil Diameter | 5x: 7.6 mm
20x: 2.5 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic Plex E1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 30 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14" / 356 mm | | Weight | 17 oz / 481 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 15.4 x 4.0 x 3.6" |
