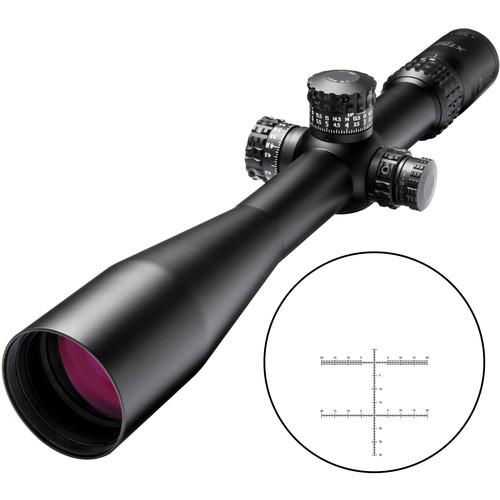

User Manual for Burris Optics 8-40x50 XTR II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 8-40x50 XTR II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 8-40x50 XTR II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 8-40x50 XTR II Riflescope from Burris Optical is designed for medium- to long-distance use in the field or at the range. Its optical system uses index-matched Hi-Lume multicoated lenses with a very functional 50mm objective lens to produce views that are bright and clear with high contrast and true color representation, even in low light - especially with the light-gathering capabilities of the large objective lens. The exposed tactical turrets make adjustments quick and easy, and with the Zero Click Stop system, there is no need to count clicks to return to zero after making temporary adjustments. To get you on target, the turrets have 1/8 MOA per click adjustment, with 30 MOA of windage range and 70 MOA of elevation range.The F-Class MOA reticle features multiple illuminated center dots and the Front Focal Plane reticle keeps the 1/2 MOA grid design accurate at any magnification. A second 20 MOA offset 1/2 MOA grid allow shooters to obtain an extra 20 MOA of elevation beyond the capability of the turret adjustments and still have horizontal wind hold-off references. At each 10 MOA section, there is an ultra-fine crosshair with 1/8 MOA illuminated dot for maximum versatility. - Optical Performance
-
- 8-40x magnification
- 50mm objective lens
- Index-matched, Hi-Lume multicoated lenses provide increased target resolution, contrast, and low-light performance
- 13.2-2.8' field of view at 100 yards
- F-Class MOA Reticle
-
- Front (First) Focal Plane
- Multiple illuminated center dots
- Keeps the 1/2 MOA grid design accurate at any magnification
- A second 20 MOA offset 1/2 MOA grid allows shooters to obtain an extra 20 MOA of elevation
- At each 10 MOA section there is an ultra-fine crosshair with 1/8 MOA illuminated dot
- Use and Handling
-
- 1/8 MOA impact point correction
- 30 MOA windage and 70 MOA elevation adjustments
- Exposed tactical turrets can be reset to zero after initial sighting
- Zero Click Stop system: quickly return dials to zero position without counting clicks
- Side parallax adjustment turret
- Fast focus eyepiece with up to 3.5 - 4.25" eye relief
- Construction Details
-
- Aluminum housing with 34mm one-piece maintube
- Scratch- and corrosion-resistant matte-black anodized finish
- Nitrogen-filled, water and fogproof
- All internal assemblies are triple-spring tensioned for shock-proof performance
- Knurled turret and focus knobs for easy adjustments in cold and wet weather
UPC: 000381010803 In the Box Burris Optics 8-40x50 XTR II Riflescope (F-Class MOA Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 8-40x50 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201080 Specs | | | Magnification | 8 to 40x | | Objective Lens Diameter | 50 mm | | Field of View | 8x: 13.2' @ 100 yd / 4.4 m @ 100 m
40x: 2.8' @ 100 yd / 0.9 m @ 100 m | | Exit Pupil Diameter | 8x: 6.25 mm
40x: 1.25 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | MOA F-Class Reticle (First Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 70 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.7" / 42.4 cm | | Weight | 31.4 oz / 890.2 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 19.5 x 4.8 x 4.1" |
