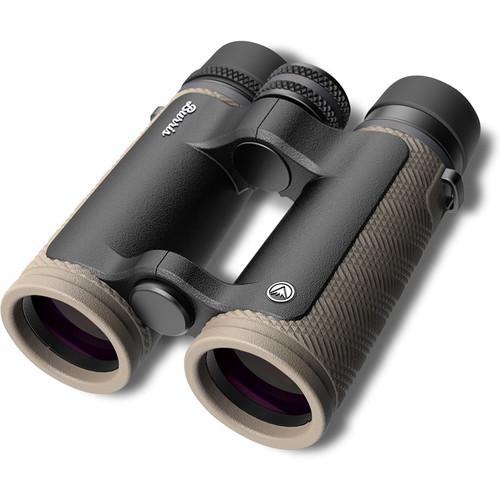

User Manual for Burris Optics 8x42 Signature HD Binocular Click to enlarge the picture
Contents of the user manual for the Burris Optics 8x42 Signature HD Binocular
- Product category: Binoculars Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Binoculars
|
User manual for the Burris Optics 8x42 Signature HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining comfort and performance, the Burris Optics 8x42 Signature HD Binocular features phase-corrected high-density BAK4 roof prisms, low-dispersion glass, and fully multi-coated optics that work together to maximize light transmission and limit internal light-loss, which all translates to bight and crisp high-contrast images with accurate color fidelity without comas or halos. Add to this impressive performance an extra-long eye relief, comfortable exit pupil, twist-up eyecups, and a large focus wheel; and users are presented with an immersive observational experience on the trail, at the range, or in the wild.To help improve grip strength and overall stability, Burris built this version with an open-bridge that opens the middle of the optic to allow fingers to wrap around the tubes, and dual hinges that support the front and rear of the tubes, and keep the barrels parallel and aligned. The optical tubes are nitrogen-filled and O-ring sealed to be watertight and resistant to internal fogging when moving through extreme temperature changes. Its lightweight and durable aluminum alloy chassis is wrapped in a protective slip-resistant rubber armoring, and textured palm pads provide additional grip strength — especially in cold and wet weather. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- BAK4 compact roof prisms
- Low-dispersion HD glass helps to limit color fringing and off-axis coma for true color fidelity, and increased light transmission for brighter, clearer, high-contrast images
- Phase-corrected prisms reduce internal light diffraction to improve contrast and clarity
- Anti-reflection fully multi-coated optics produce neutral and accurate color fidelity, and improves contrast and image brightness
- 330' field of view at 1000 yards
- Use and Handling
-
- Open-bridge, dual hinge configuration
- Large textured fast-focus wheel allows for easy manipulation in cold or wet conditions, or while wearing gloves
- Right-eye dioptric correction
- 57-74mm interpupillary adjustment range
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Extra-long 19.6mm eye relief
- Comfortable 5.25mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum alloy chassis
- Open-bridge/dual-hinge configuration provides more gripping surface area to improve hold and comfort
- Protective slip-resistant rubber armoring
- Textured palm rests proved additional grip strength and slip-resistance
- Nitrogen-filled and O-ring sealed to be watertight to 3.3' (1m) and resistant to internal fogging when moving through extreme temperature changes
- Weight: 23.2 ounces
UPC: 000381302922 In the Box Burris Optics 8x42 Signature HD Binocular Carrying Case Neoprene Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 8x42 Signature HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 300292 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.3° (Actual) | | Field of View | 330.7' @ 1000 yd / 110.2 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 19.6 mm | | Interpupillary Adjustment | 57 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.8 x 5.0 x 2.0" / 14.7 x 12.7 x 5.1 cm | | Weight | 23.2 oz / 657.7 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.4 x 7.9 x 4.2" |
