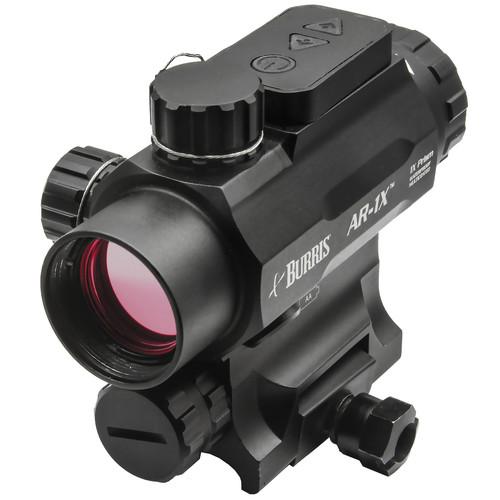

User Manual for Burris Optics AR-1X Prism Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Burris Optics AR-1X Prism Red Dot
- Product category: Red Dot/Holographic Sights Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Red Dot/Holographic Sights
|
User manual for the Burris Optics AR-1X Prism Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The AR-1X Red Dot Sight from Burris Optics is designed as a 1x magnification optical sight with a Ballistic CQ 1X black reticle engraved into the prism, allowing it to be used without illumination. For low light, the reticle features user selectable red and green illumination. The reticle features a horizontal split bar, central dot, and hashmarks below the dot for precise trajectory compensation out to 600 yards. The optics are anti-reflective and fully multicoated and the scope is protected by tethered turret caps and flip-up lens covers. The illuminated sight is powered by a AA battery that gives over 5000 hours of use. - Optical Performance
-
- 1x magnification
- Anti-reflective fully multicoated optics minimizes light loss, and maximizes contrast and color transmission
- Ballistic CQ 1X Reticle
-
- Close quarters (CQ) 1X reticle etched into prism
- Outer donut for fast close quarter target acquisition and tracking
- Horizontal posts with a center dot
- Ballistic-drop compensation hashmarks for elevation adjustments out to 600 yd
- Use and Handling
-
- Red/Green illuminated reticle
- 1/2 MOA per click impact point correction
- 60 MOA windage and elevation adjustment range
- Tethered caps, flip-up lens covers
- Construction Details
-
- Single-piece aluminum housing
- Nitrogen-filled, waterproof
- Low-glare, scratch and corrosion-resistant matte-black anodized finish
- 1.6" height above rail to optic centerline
UPC: 000381302144 In the Box Burris Optics AR-1X Prism Red Dot Sight (Ballistic CQ 1X Reticle) AA Battery Flip-up Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics AR-1X Prism Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics AR-1X Specs | | | Reticle | Ballistic CQ | | Eye Relief | 88.9 mm | | Power Source | 1 x AA | | | | Magnification | 1 x | | Field of View | 75' @ 100 yd / 24.9 m @ 100 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Dimensions | L: 4.0" / L: 10.2 cm | | Weight | 13.2 oz / 374.2 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.5 x 4.0 x 3.2" |
