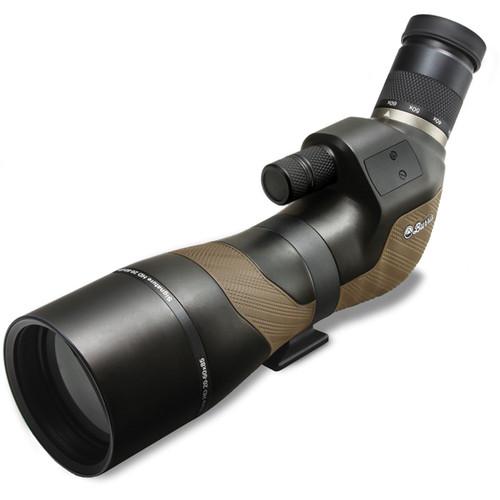

User Manual for Burris Optics Signature HD 20-60x85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Burris Optics Signature HD 20-60x85 Spotting
- Product category: Spotting Scopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Spotting Scopes
|
User manual for the Burris Optics Signature HD 20-60x85 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More ctyusdyvtxedatfffcayfzw The Burris Optics Signature HD 20-60x85 Spotting Scope lives up to its name as their flagship spotter, sporting low-dispersion glass, an apochromatic lens system, and index-matched broadband lens coatings. These features work together to produce bright and clear high-contrast images with accurate color rendition and minimal distortion across the entire field of view. A powerful and wide magnification range allows for detailed observation at medium to long range, while the oversized objective boosts its light-gathering capabilities to allow its use from dawn to dusk and to pick game out from under heavy canopies and brush. At low magnification it has a comfortable exit pupil to enjoy sweeping views, while higher magnification will be able to resolve minute details of subjects at extreme distances.Thoughtfully designed, the Signature boasts a lightweight and impact-resistant magnesium chassis wrapped in a protective armoring. The optical tube is argon filled and O-ring sealed to be watertight and resistant to internal fogging when moving through extreme temperature changes. For comfortable use, the eyepiece is set at an angle to place the head in a comfortable position when viewing, and the tripod collar rotates to enable precise positioning relative to the support system for perfect eyepiece placement whether users are sitting, standing, or lying prone. Two mounting points are compatible with the Burris FastFire red-dot sight to make finding and tracking subjects easy, while a dual-speed focuser provides fast focusing. - Optical Performance
-
- Powerful 20-60x zoom range
- Large 85mm objective lens
- Apochromatic lens system corrects chromatic and spherical aberrations to produce accurate colors and correct distortions at the lens edges
- Index-matched lens coatings eliminate color aberrations and produce true color fidelity across the entire visible spectrum
- 117-60' field of view at 1000 yards
- Use and Handling
-
- Eyepiece set at a 45° angle to body to put head in comfortable viewing position whether sitting, standing, or lying prone
- Dual-speed focuser enables fast coarse and precision fine focusing
- Textured zoom collar with magnification indicators
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Rotating tripod collar enables precise eyepiece positioning for optimum comfort and convenience
- Standard 1/4"-20 tripod mount
- Two optional 30x wide-angle reticle eyepieces for shooting and ranging
- Long 20-18mm eye relief
- Comfortable 4.25mm exit pupil at low, 20x magnification
- Construction Details
-
- Lightweight and impact-resistant magnesium-alloy chassis
- Argon filled and O-ring sealed to be watertight to 3.3' and resistant to internal fogging when moving through extreme temperature changes
- Textured rubber armor details adds slip-resistant handling
- Two mounting points for optional FastFire dot-sights help make finding subjects faster and easier
- Retractable sunshade prevents lens flare and interfering glare in bright light and keeps rain or snow off objective in inclement weather
- Weight: 4.2 pounds
UPC: 000381301024 In the Box Burris Optics Signature HD 20-60x85 Spotting Scope (Angled Viewing) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics Signature HD 20-60x85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics Signature Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 85 mm | | Field of View | 20x: 117.0' @ 1000 yd / 39.0 m @ 1000 m
60x: 60.0' @ 1000 yd / 20.0 m @ 1000 m | | Exit Pupil Diameter | 20x: 4.25 mm
60x: 1.4 mm | | Eye Relief | 20.0 to 18.0 mm | | | | Fogproof | Yes, Argon Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.3" / L: 38.9 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 17.8 x 8.0 x 6.6" |
