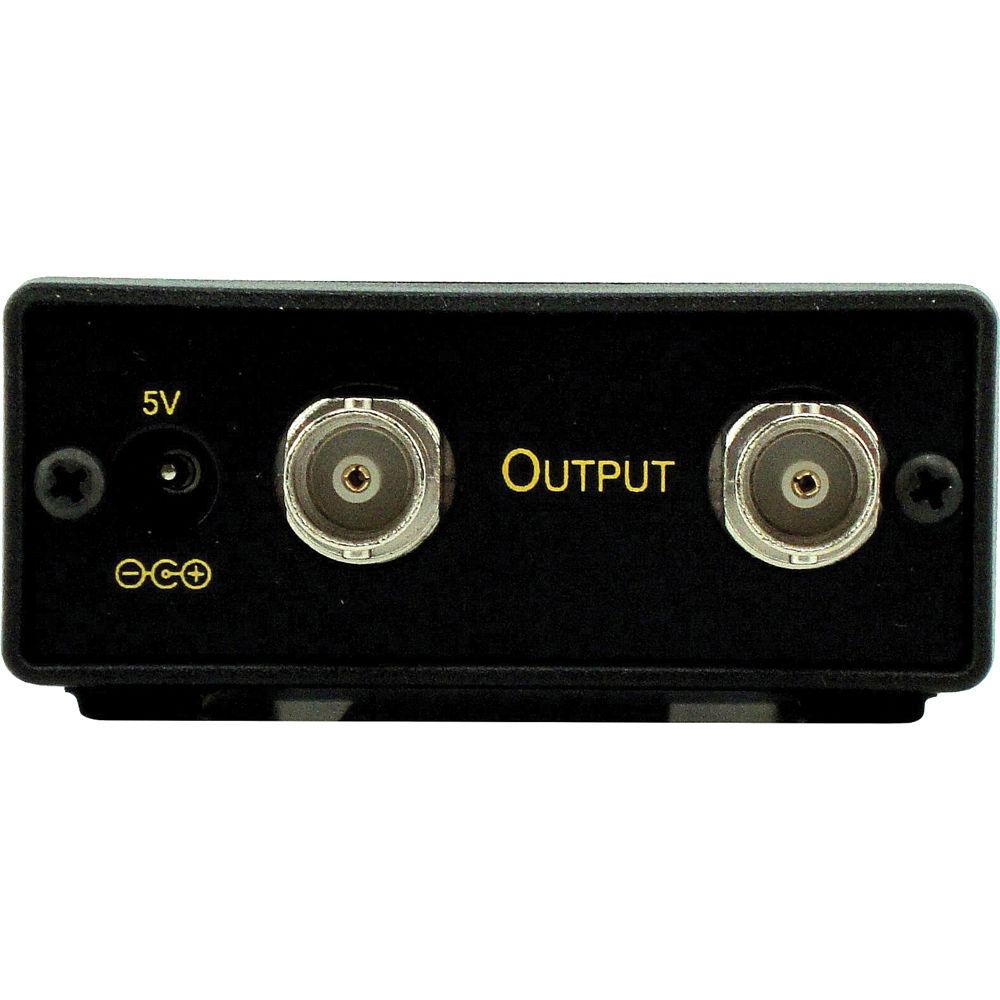

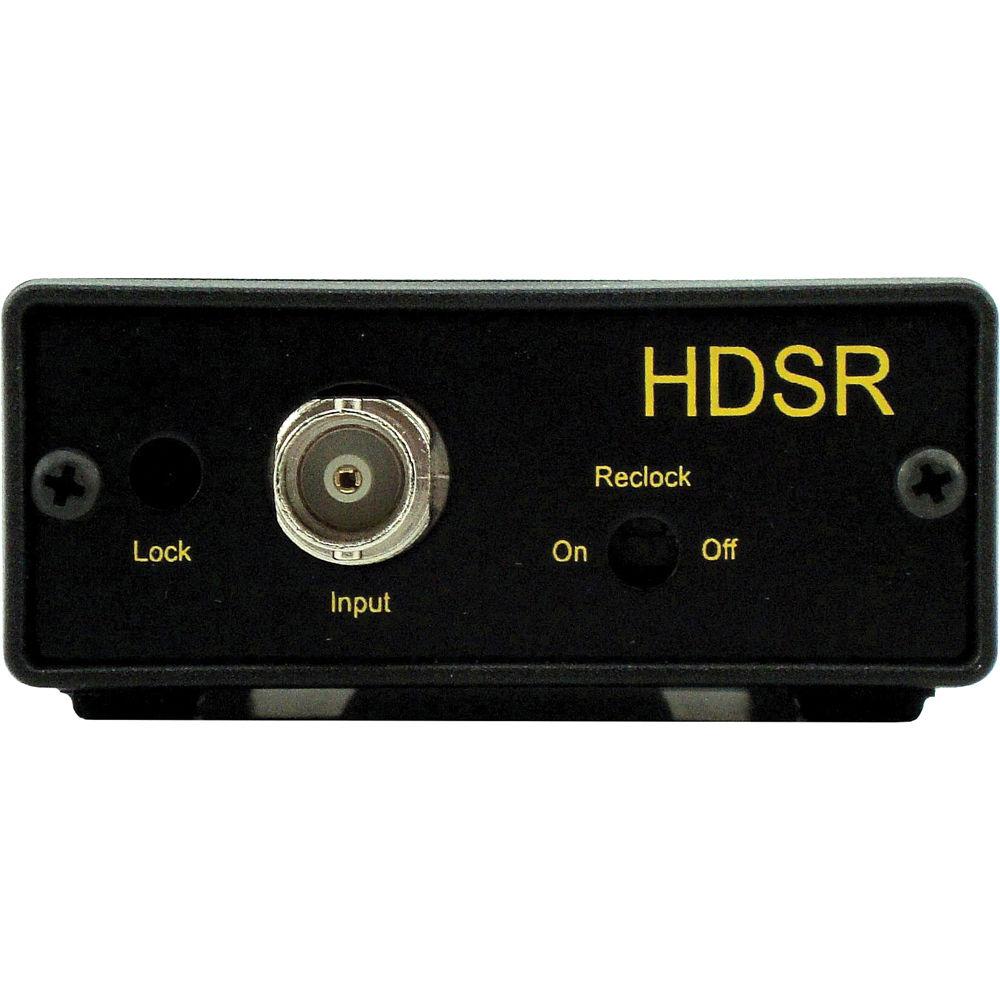

Product description The HDSR HD/SD SDI 2-Output Distribution Amplifier from Burst Electronics is a studio quality HD/SD SDI 1 x 2 distribution amplifier with equalized input and selectable reclocked/non-reclocked outputs. Each output can drive up to 330' of HD/SD SDI with embedded audio (Belden 1694). A front panel switch selects between reclocked and non-reclocked outputs. The outputs are unity to 330'. The input is equalized and the outputs can be selected to bypass or reclock the incoming video signal. The enclosure of the HDSR is designed to be placed in-line with long cable runs, but it can also be rack mounted with up to 6 units on a single 1RU rail (RM-6-2/sold separately). The HDSR is a 2-output version that is operated from an included 5VDC power supply. In the Box Burst Electronics HDSR HD/SD SDI 2-Output Distribution Amplifier External 5VDC Power Supply (120VAC to 5VDC @ 1A) Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Burst Electronics HDSR HD SD SDI 2-Output Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurst Electronics HDSR Specs | Support | SMPTE 292M/259M (NTSC 480i; PAL 576i; 720p59.94; 1080i50/59.94; 1080p30) | | Equalization | Automatic up to 330.0' (100.5 m) @ 1.5 GHz using Belden 1694 | | Output Jitter | 0.2 UI (expected) | | | | Connectors | 1 x BNC | | Level | 20 to 800 mV p-p | | Frequency Range | 143 Mb/s to 1.5 Gb/s | | Impedance | Hi-Z | | | | Connectors | 2 x BNC | | Level | 800 mV p-p Unity Gain | | Processing | Re-clocked outputs | | Frequency Range | 143 Mb/s to 1.5 Gb/s | | Impedance | 75 Ω | | | | Front Panel Controls | Switch 1: Power ON/OFF
Switch 2: Bypass/Reclocked | | Indicators | Number: 1
Signal present: LOCK (LED) | | Power | 120 VAC 60 Hz, 5 VDC, 0.5 A | | Operation Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 5% to 95% (noncondensing) | | Dimensions (W x H x D) | 4.2 x 1.5 x 5.5" (10.6 x 3.8 x 13.9 cm) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 4.0" |
