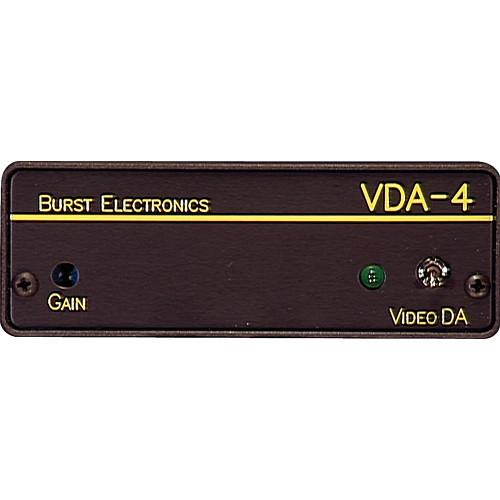

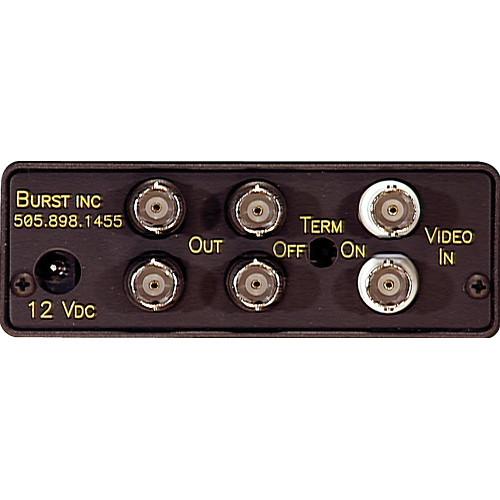

Product description The Burst Electronics' VDA-4 Four Output Distribution Amplifier offers wide bandwidth and high gain in a compact enclosure that allows it to be used on a tabletop or in an optional rackmount. Featuring internal regulated bipolar supplies and looping input, the VDA-4 also offers a rear panel switch for selecting an internal 75 Ohm termination resistor on the loop-through input. Combine that with NTSC/PAL capability, and you've got the perfect distribution amp for field or studio applications. In the Box Burst Electronics VDA-4 Four Output Distribution Amplifier Wall Module 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burst Electronics VDA-4 Four Output Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurst Electronics VDA-4 Specs | Input | 2x BNC (1V Standard Video) | | Output | 4x BNC, 75 Ohms
Voltage: 4 Vpp max | | Input Impedance | HiZ or 75 Ohms 1%, Looping | | Output Impedance | 75 Ohms 1% | | Signal Delay | Input to Output: 10nS | | Frequency Response | DC to 33MHz 0.2dB | | Gain | Unit, Adjustable +/- 3dB | | Video Signal-to-Noise Ratio | 68dB | | Differential Phase | 0.05 deg | | Differential Gain | 0.03% | | Coupling | DC Throughput | | Power Source | 11-14VDC
120VAC 60 Hz, 12VDC 500mA | | Dimensions | 4.2 x 1.5 x 5.5" (10.7 x 3.8 x 14 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.7 x 3.3" |
