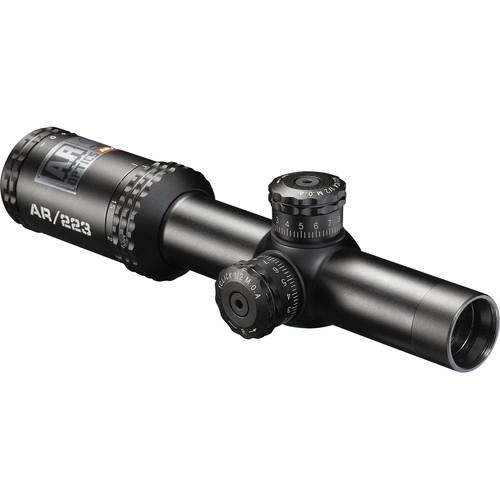

User Manual for Bushnell 1-4x24 AR Optics Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 1-4x24 AR Optics Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 1-4x24 AR Optics Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Unleash your fury with Bushnell's 1-4x24 AR Optics Riflescope. This optic is engineered for tactical scenarios and represents an ultra-compact (9.4"-long) and precise aiming tool. Its optical system features fully multi-coated elements that deliver great clarity and visibility. In addition to excellent image quality, it provides a 3.5" eye relief, a 112' field of view at 100 yard, a generous 100 MOA windage and elevation ranges, and a Drop Zone 300 Blackout illuminated reticle for laser-sharp placements. This 1st focal plane reticle is optimized for .300 Blackout cartridges and features an illuminated round target horseshoe and an illuminated target dot with underlying dots for ballistic compensation.
Designed for a lifetime of service, the aluminum housing (with a single-piece 30mm maintube) is waterproof and shock-resistant. Also noteworthy are graduated finger-operated target turrets and a built-in Throw Down PCL folding zoom lever that helps making instant and precise zoom changes while offering a low-profile in folded position. - Optical Performance
-
- 1 - 4x zoom magnification
- 24mm objective diameter
- Fully multi-coated optics
- 112 - 27' field of view at 100 yard
- Reticle
-
- Illuminated Drop Zone 300 Blackout reticle
- Located in the 1st focal plane
- Round illuminated horseshoe
- Illuminated target and BDC dots
- Use and Handling
-
- 1/2 MOA impact point correction
- 100 MOA windage and elevation range
- 13.1 - 5.2 mm exit pupil range
- 3.5" eye relief
- Construction Details
-
- 30mm maintube
- Aluminum housing
- Matte black finish
- Compact, 9.4"-long body
- Graduated finger-operated target turrets
- Fast focus eyepiece with knurled zoom ring
- Throw Down PCL folding zoom lever
- Two lens caps are included
- Waterproof
UPC: 029757000453 In the Box Bushnell 1-4x24 AR Optics Riflescope (Illuminated Drop Zone 300 Blackout Reticle, Matte Black) - 2 x Lens Covers
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 1-4x24 AR Optics Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell AR91424BI Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 112' @ 100 yd / 37 m @ 100 m
4x: 27' @ 100 yd / 9 m @ 100 m | | Exit Pupil Diameter | 1x: 13.1 mm
4x: 5.2 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | Drop Zone 300 Blackout Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 9.4" / 23.9 cm | | Weight | 16.9 oz / 479 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 13.5 x 3.8 x 3.1" |
