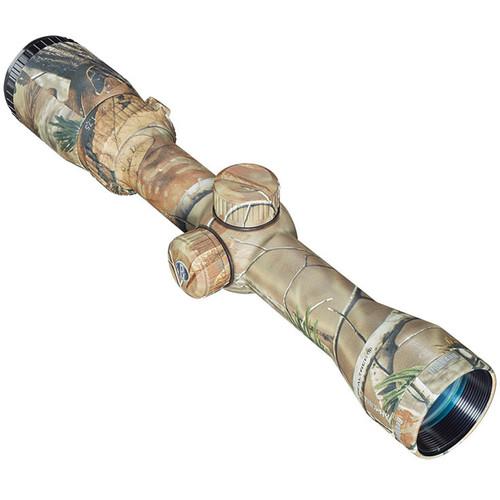

User Manual for Bushnell 1.75-4x32 Trophy Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 1.75-4x32 Trophy Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 1.75-4x32 Trophy Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell optimized the 1.75-4x32 Trophy Riflescope for use with lever guns and slug guns. To deliver bright and clear images of your target, the scope's optics are fully multi-coated and provide a high transmission of light. Ideal for big game, its Circle-X Reticle is located on the 2nd focal plane, and features four thick and long posts as well as an encircled thin narrow crosshair. To improve precision at longer distances, with cross-winds, the riflescope offers 1/4 MOA windage and elevation correction with a total range of 150 MOA. The 3.5" eye relief will give you enough space to obtain comfortable aim and to prevent recoil-related injury.
The lightweight, durable, and shock-resistant housing features a 1" single-piece maintube. To enable you to take it anywhere, the scope is filled with nitrogen for a fogproof and waterproof performance. The fast-focus eyepiece with knurled rings and a low-profile lever offers efficient and slip-free zooming. Circle-X Reticle -
- 2nd focal plane
- Four thick long posts
- Encircled thin narrow crosshair
Optical Performance -
- Fully multi-coated optics improve transmission
- Magnification of 1.75-4x for short-range target acquisition
- 32mm objective aperture for day-light hunting
- Field of view: 64-29' at 100 yd
Use and Handling -
- 1/4 MOA impact point correction
- 150 MOA Windage and elevation adjustments
- Fixed parallax adjustment
- Long eye relief of 3.5"
- Exit pupil: 13-8mm
Construction Details -
- 1" single-piece maintube
- Aluminum housing
- Fast-focus eyepiece
- Knurled adjustment rings
- Fogproof, waterproof, shock-resistant
UPC: 029757014320 In the Box Bushnell 1.75-4x32 Trophy Riflescope (Circle-X Reticle, Realtree AP) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 1.75-4x32 Trophy Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 751432AP Specs | | | Magnification | 1.75 to 4x | | Objective Lens Diameter | 32 mm | | Field of View | 1.8x: 64' @ 100 yd / 20 m @ 100 m
4x: 29' @ 100 yd / 9 m @ 100 m | | Exit Pupil Diameter | 1.75x: 13 mm
4x: 8 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Circle-X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 150 MOA | | Elevation Adjustment | 150 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 10.6" / 27 cm
Mount Length: 5.3" / 135 mm | | Weight | 12.7 oz / 360 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 16.3 x 3.2 x 2.4" |
