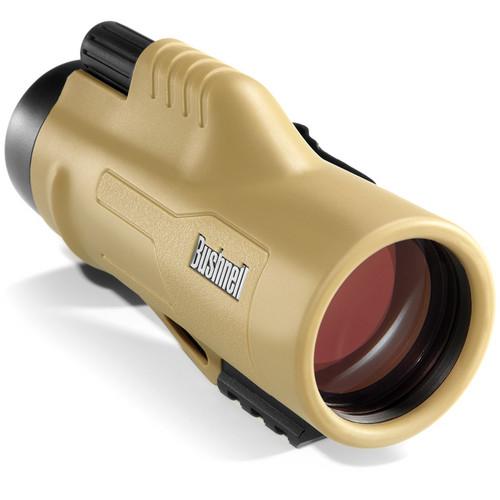

User Manual for Bushnell 10x42 Legend Ultra HD Tactical Monocular Click to enlarge the picture
Contents of the user manual for the Bushnell 10x42 Legend Ultra HD Tactical
- Product category: Monoculars Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Monoculars
|
User manual for the Bushnell 10x42 Legend Ultra HD Tactical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Employing many of the optical components found in premium spotting scopes, the 10x42 Legend Ultra HD Tactical Monocular (Tan) from Bushnell delivers bright, sharp imagery in a compact, waterproof design. The ED Prime extra low-dispersion glass, fully multi-coated optics, and BAK4 prisms capture the visual moment with vivid clarity and contrast, even in low-light conditions. Patented Rainguard HD, a permanent, water-repellent coating, causes moisture from rain, snow, sleet, or condensation to bead up, scattering less light and delivering a clear, bright view. The magnesium housing is O-ring sealed and purged with bone-dry nitrogen to ensure waterproof, fogproof performance. The built-in Picatinny rail accepts a variety of lights and tactical sights. This monocular has the Mil-Hash reticle for tactical, law enforcement, and other long-range shooting applications. - Optical Performance
-
- 10x magnification
- 42mm objective lens
- ED Prime extra low-dispersion glass
- Anti-reflective fully multi-coated & ultra-wide band coating
- BAK4 roof prisms
- PC3 prism phase coating
- Use and Handling
-
- Mil-Hash reticle: classic cross-hair configuration with calibrated hash marks for range estimation
- Twist-up eyecup
- 340' field of view at 1000 yards
- Close focus 6.5'
- Long 15mm eye relief
- Exit pupil: 4.2mm
- Construction and Handling
-
- O-ring sealed & nitrogen-purged for waterproof, fogproof performance
- RainGuard HD water-repellent coating causes moisture to bead tightly to scatter less light
- Lightweight magnesium chassis
- Compact at 5.4"
- Picatinny rail for accessories/lights/sights, etc.
- Rubber armoring for secure & comfortable grip, as well as added shock resistance
UPC: 029757191151 In the Box Bushnell 10x42 Legend Ultra HD Tactical Monocular (Tan) Limited Lifetime Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 10x42 Legend Ultra HD Tactical Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 191144 Specs | Magnification | 10x | | Objective Lens Diameter | 42mm | | Angle of View | 6.5° | | Field-of-View (@ 1000 Yds) | 340' @ 1000 yd / 112.9 m @ 1000 m | | Minimum Focus Distance | 6.5' / 1.9 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15.2 mm | | Weatherproofing | Waterproof | | Length | 5.4" / 13.7 cm | | Weight | 13.2 oz / 374.2 g | | | | Package Weight | 1.355 lb | | Box Dimensions (LxWxH) | 6.75 x 4.6 x 4.0" |
