User Manual for Bushnell 10x50 PowerView Binocular Click to enlarge the picture
Contents of the user manual for the Bushnell 10x50 PowerView Binocular
- Product category: Binoculars Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Binoculars
 |
User manual for the Bushnell 10x50 PowerView Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

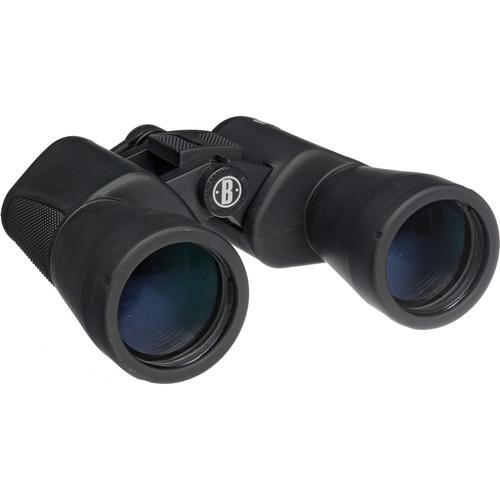

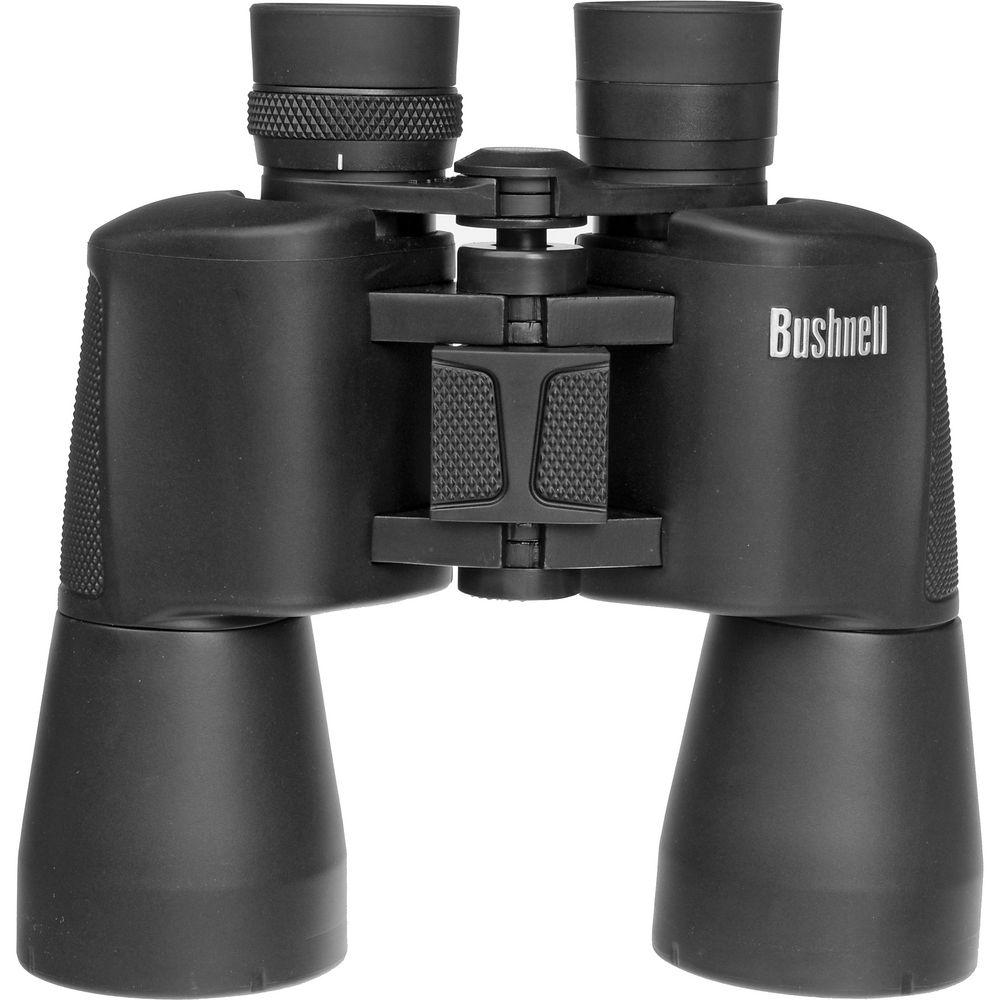

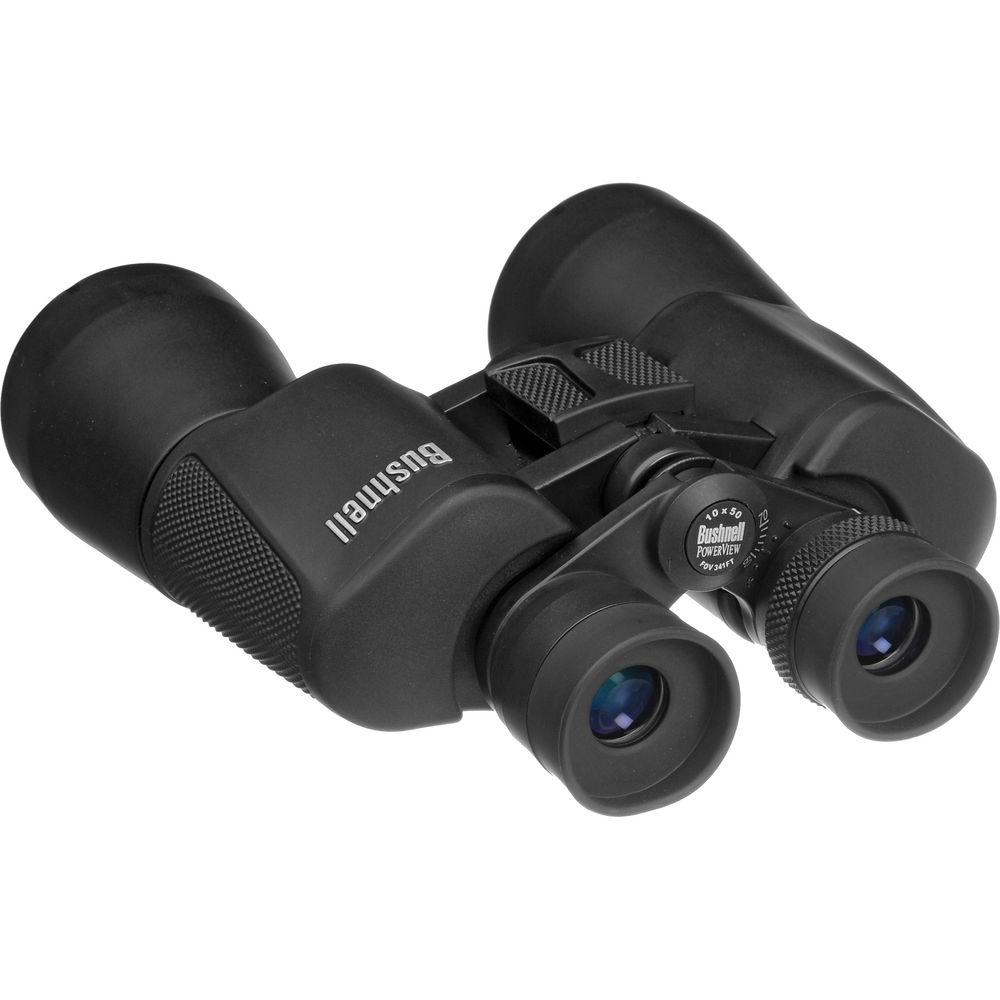

Product description The B&H Binocular Buying Guide Read More tqzcrqvecvdfrfvdvcrsrrzbzxs Enhance your outdoor adventures using the 10x50 PowerView Binocular from Bushnell. This Porro prism binocular offers an improved perception of depth, a wide 65° apparent angle of view, and a high 10x magnification power. For delivering glare-free, clear, and bright images the lenses have multiple anti-reflection coatings. A definite highlight is its unique InstaFocus center focusing system that provides a center focusing lever rather than the more commonly encountered center wheel, which enables you to change focus much faster. Your binocular is also protected from impact and adverse weather conditions by its polymer housing with a rubber covering. For conducting observations that require long periods of time or stability, the binocular can be mounted on tripods using an optional tripod adapter. - Optical Performance
-
- 10x magnification
- Wide 50mm objectives allow more light and increase image brightness in low light
- BK7 Porro prisms improve perception of depth
- Multi-coatings increase transmission and reduce glare
- Wide 65° apparent angle of view
- 20' minimum focus distance
- Use and Handling
-
- Closed bridge configuration
- InstaFocus lever allows fast focus adjustments
- Fold-down rubber eyecups
- Diopter adjustment
- 5.0mm exit pupil
- 10mm eye relief
- Construction
-
- Polymer housing
- Rubberized covering ensures a slip-free grip
- Weather- and impact-resistant
- Adaptable to tripods
UPC: 029757165015 In the Box Bushnell 10x50 PowerView Binocular (Black) - Carrying Case
- Neck Strap
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 tqzcrqvecvdfrfvdvcrsrrzbzxs A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 10x50 PowerView Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 131056 Specs | Prism Type | Porro | | Magnification | 10.0 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.5° (Actual) | | Field of View | 341.00' @ 1000 yd / 113.21 m @ 1000 m | | Minimum Focus Distance | 20' / 6.1 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 10 mm | | Dioptric Correction | None | | Focus Type | Center | | Tripod Mount | Yes | | Weight | 25.00 oz / 708.75 g | | | | Package Weight | 2.44 lb | | Box Dimensions (LxWxH) | 8.4 x 8.3 x 3.4" |
