User Manual for Bushnell 2-6x32 Trophy Riflescope for Handguns Click to enlarge the picture
Contents of the user manual for the Bushnell 2-6x32 Trophy Riflescope for Handguns
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
 |
User manual for the Bushnell 2-6x32 Trophy Riflescope for Handguns contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

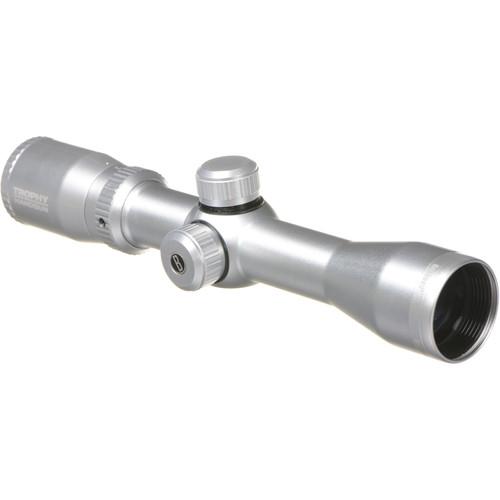

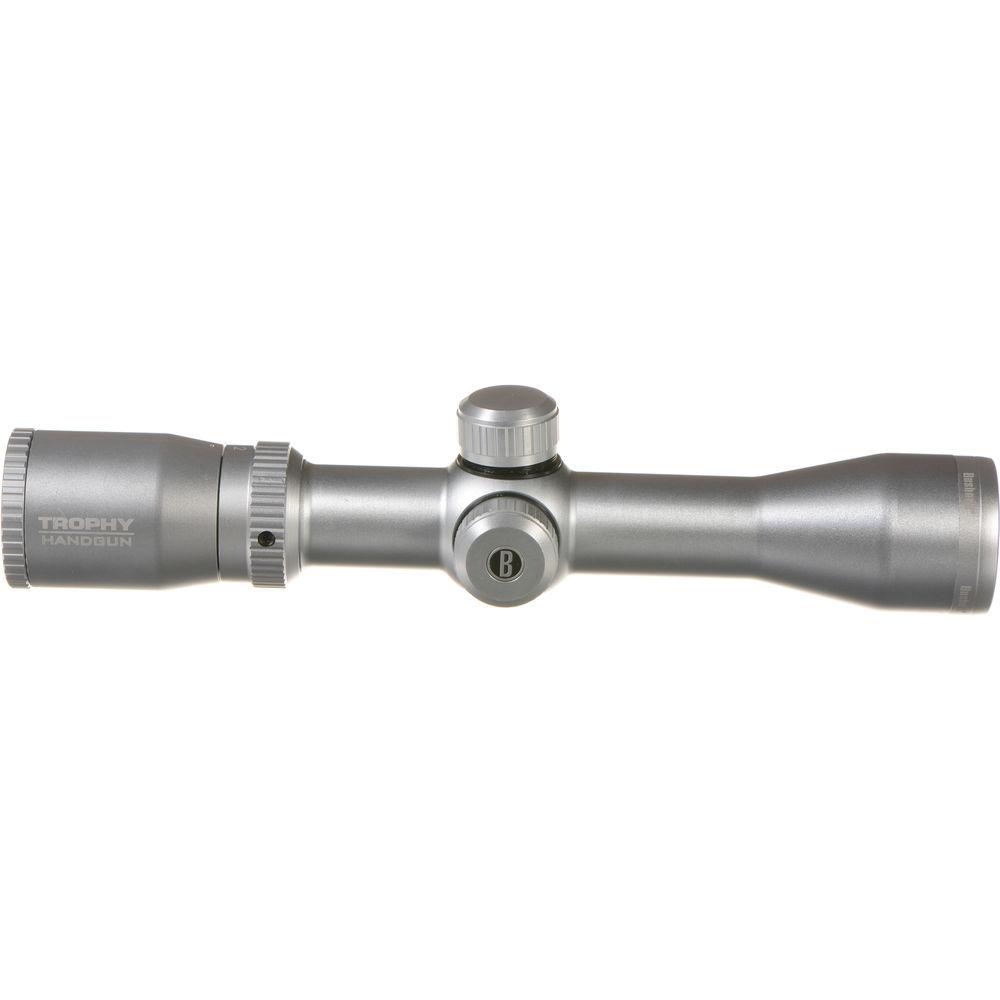

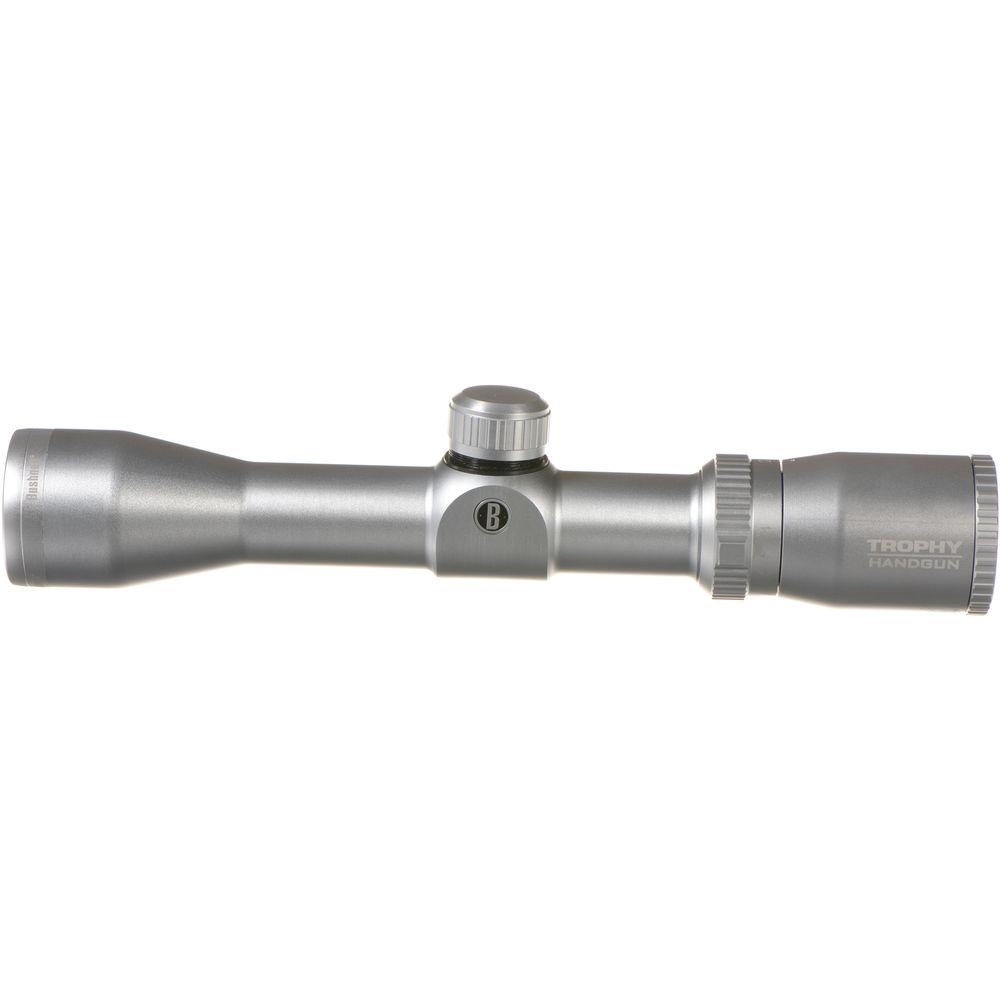

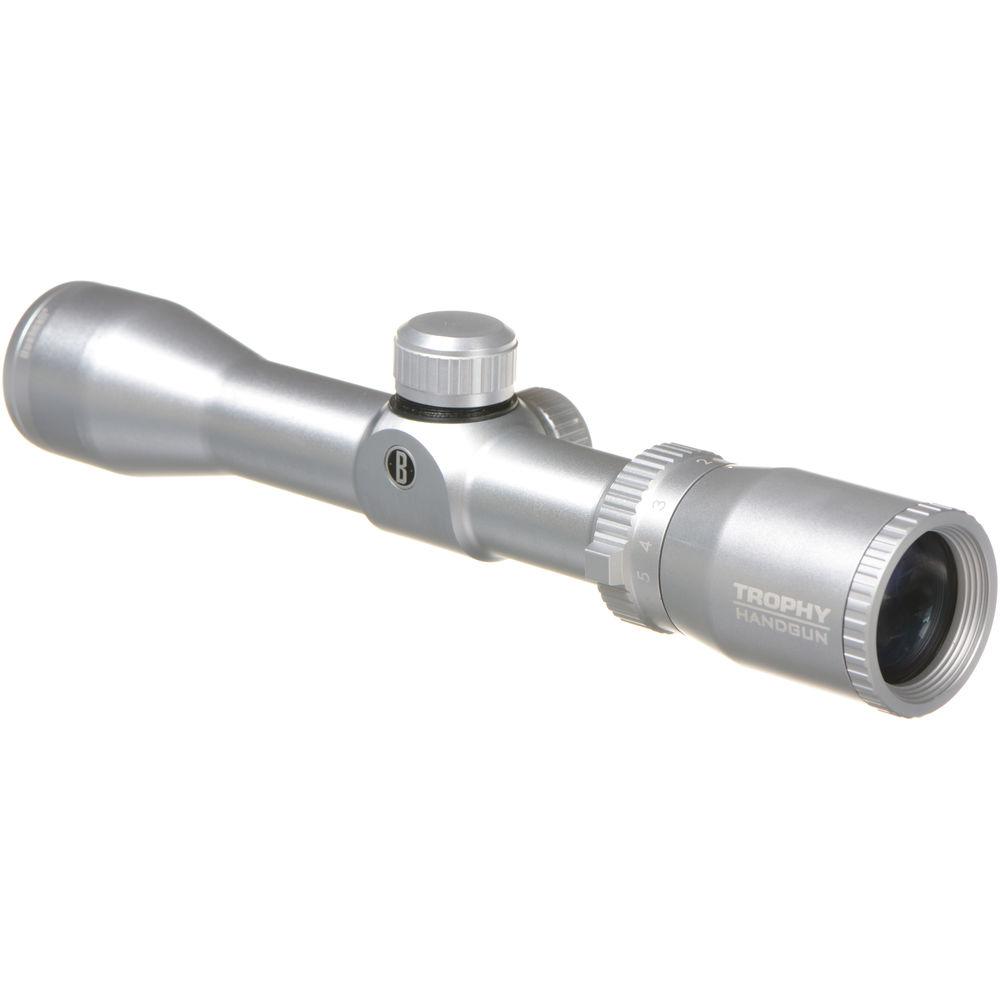

Product description Bushnell re-designed the 2-6x32 Trophy Riflescope to meet the needs of handgun shooters. To emphasize this goal, the scope offers an extra-long eye relief of 20" that enables you to assume a comfortable shooting position while holding you handgun at an arm's length. To deliver bright and clear images of your targets, the scope's optics are fully multi-coated. Located on the second focal plane, the Multi-X reticle has four long heavy posts and an encircled thin narrow crosshair. To improve precision at longer distances and to compensate for wind, the windage and elevation can be adjusted with 1/4 MOA increments and offer a total range of 60 MOA.
The lightweight and durable aluminum housing features a 1" single-pieces maintube for improved durability and shock-resistance. It is also filled with dry nitrogen to provide a fogproof and waterproof performance. To enable you with fast adjustments, the scope also offers finger-operated capped windage and elevation turrets and a fast focus eyepiece with a knurled zoom ring and a low-profile lever. - Multi-X Reticle
-

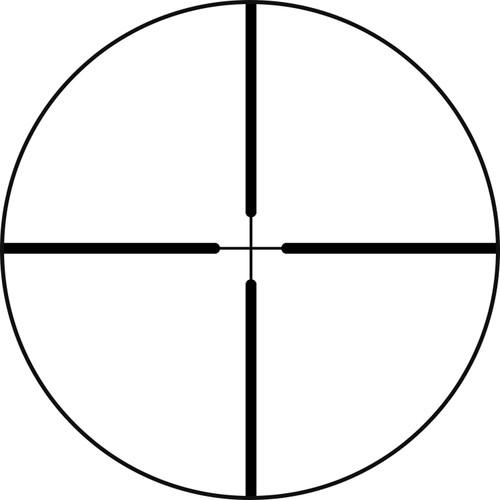

- 2nd focal plane
- Four heavy and long tapered posts
- Thin crosshair
- Optical Performance
-
- Magnification of 2-6x
- 32mm objective diameter
- Fully multi-coated for better image brightness, clarity, and detail
- Field of view: 12-5' at 100 yd
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA Windage and elevation adjustments
- Long eye relief of 20"
- Construction Details
-
- 1" single-piece maintube
- Integrated saddle
- Aluminum housing
- Fast-focus eyepiece
- Knurled adjustment rings
- Shock-resistant
- Fogproof, nitrogen-filled
- Waterproof
UPC: 029757026323 In the Box Bushnell 2-6x32 Trophy Riflescope for Handguns (Multi-X Reticle, Silver) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 2-6x32 Trophy Riflescope for Handguns in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 752633S Specs | | | Magnification | 2 to 6x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 12' @ 100 yd / 4 m @ 100 m
6x: 5' @ 100 yd / 2 m @ 100 m | | Exit Pupil Diameter | 2x: 16 mm
6x: 5.3 mm | | Eye Relief | 20" / 0.5 m | | | | Reticle Type | Multi-X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 9.6" / 243 mm | | Weight | 11 oz / 310 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 16.299 x 3.15 x 2.677" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
