User Manual for Bushnell 2x28 AR Optics Digital Sentry Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bushnell 2x28 AR Optics Digital Sentry
- Product category: NV Monoculars & Multi-Systems Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell NV Monoculars & Multi-Systems
 |
User manual for the Bushnell 2x28 AR Optics Digital Sentry contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

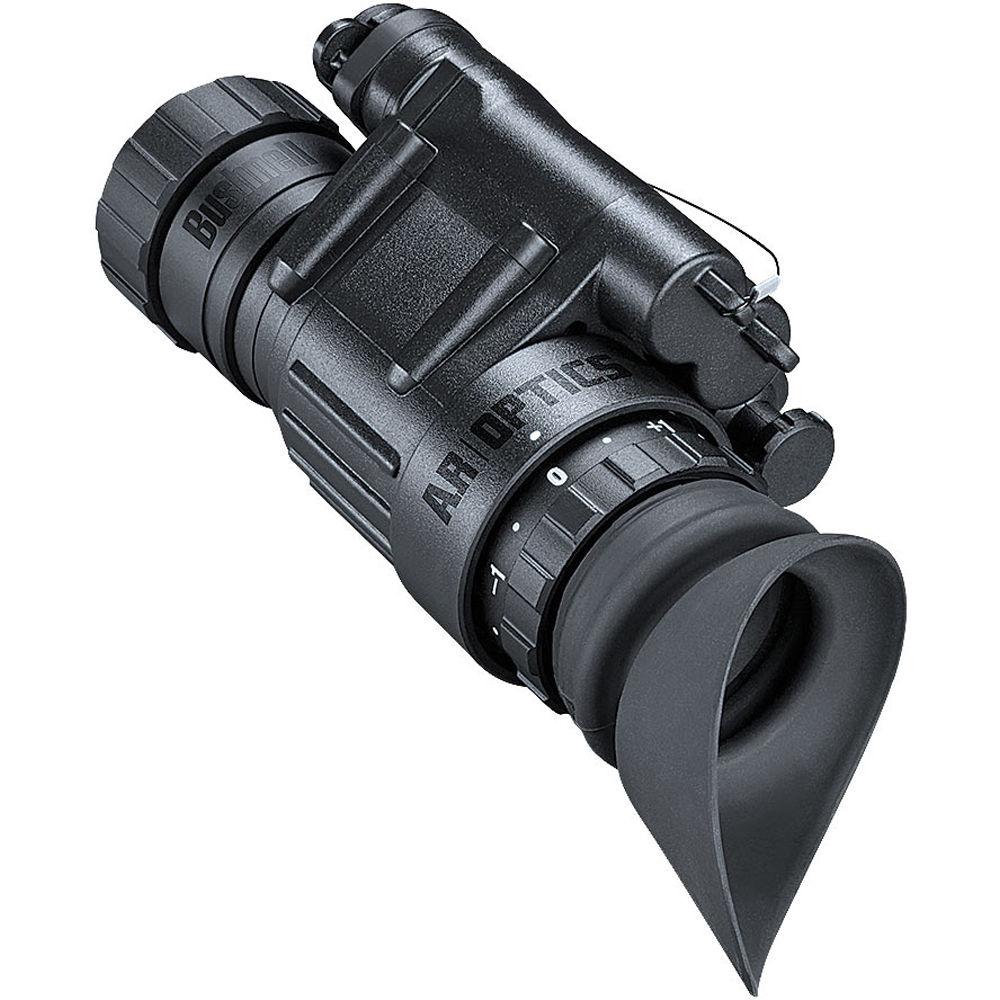

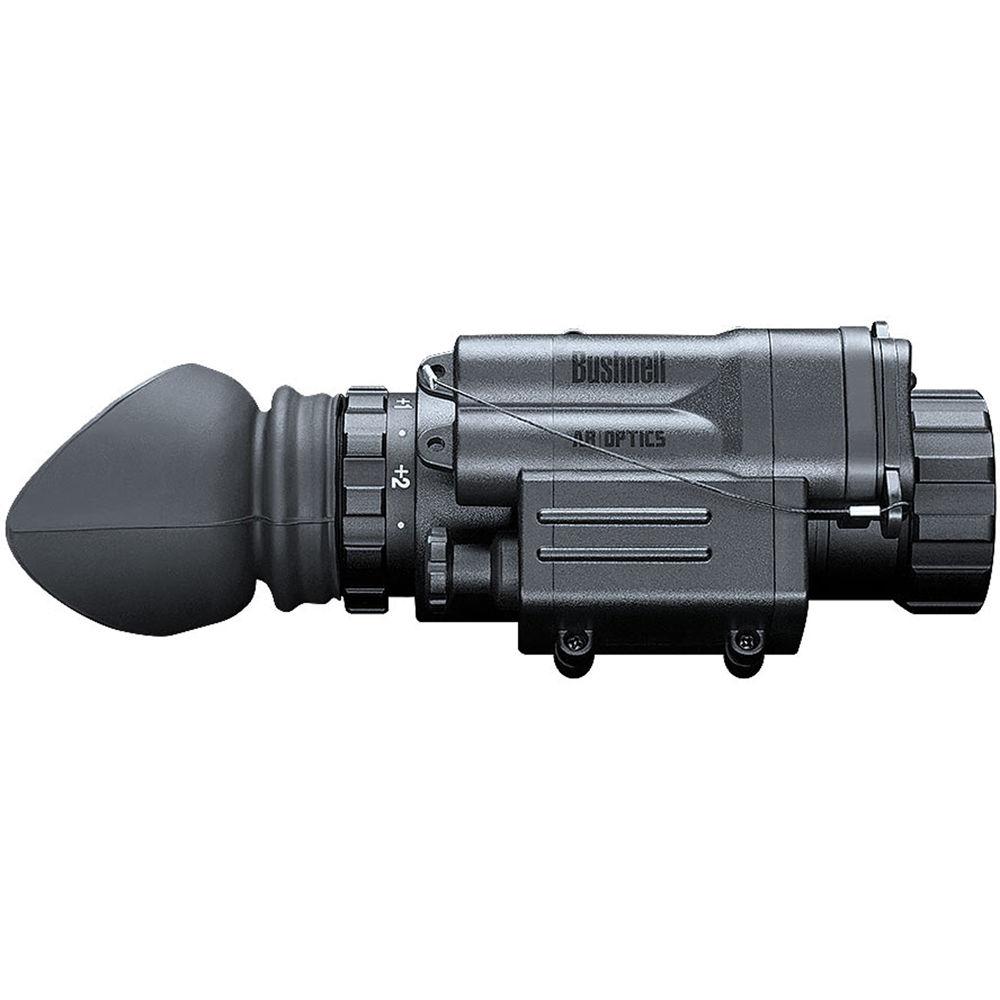

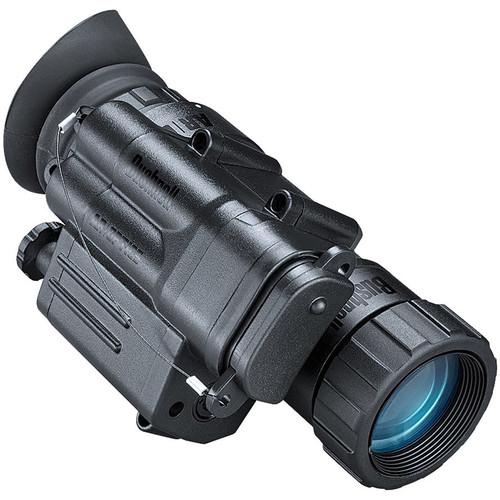

Product description Make an enviable addition to your tactical, hunting, or outdoor gear with the Bushnell 2x28 AR Optics Digital Sentry Night Vision Monocular. This device borrows the compact and ergonomic design of the legendary PVS-14 and can be used in a similar fashion — as a handheld, headgear-mounted, or weapon mounted operating mode. To enable and enhance the nighttime visibility, this monocular features a digital sensor, which is immune to unexpected bright light and a built in infrared LED illuminator that can be used to cast extra infrared light on the scene in total darkness. With the help of optical system and an internal processor, the 330 x 224 pixel LED display will deliver full color images of the night scene with a notable 2x magnification and a 6.4° angular field of view. Use the rotary switch in the back to turn the device on and to control its infrared illumination output power.

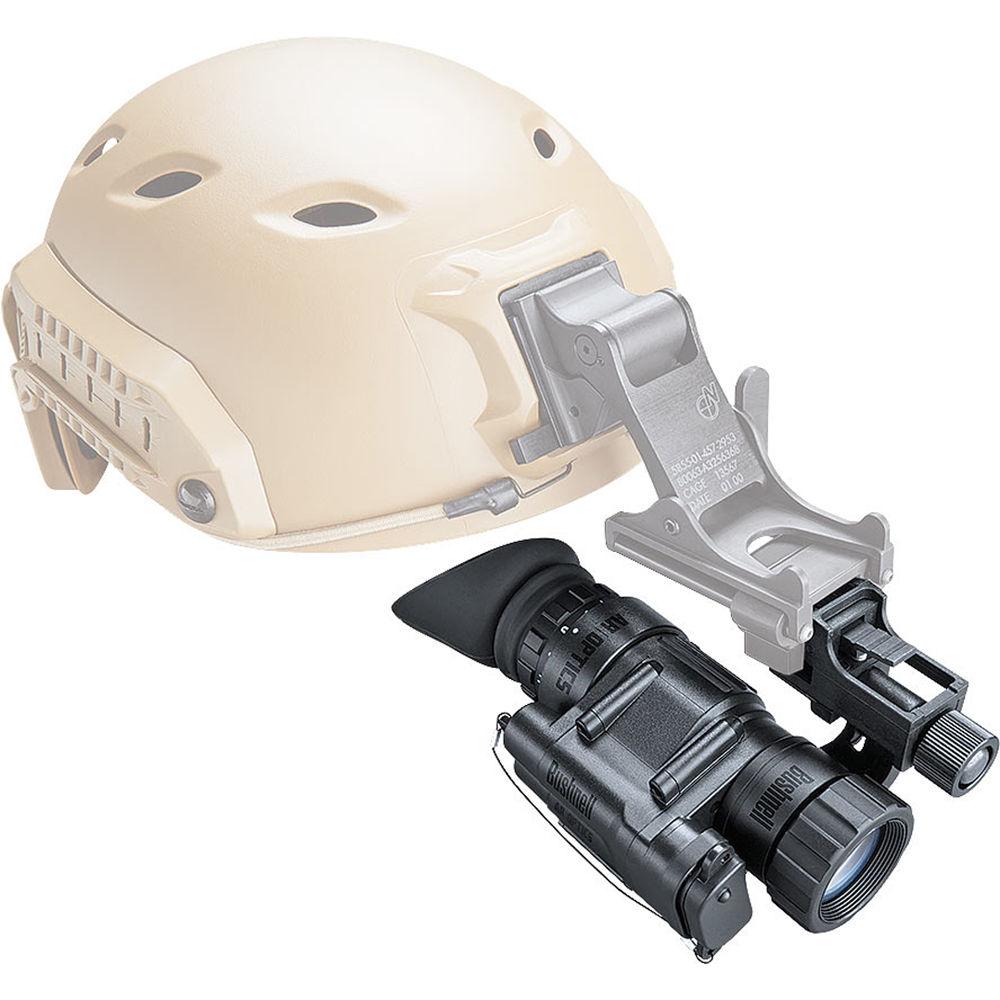

The ergonomic and lightweight body mimics the shape of the notorious PVS-14 and shares many common characteristics. It features a water- and impact-resistant performance and offers a screw socket for attaching accessories and included adapters for mounting it to a weapon or a headgear. Other highlights are knurled focusing and diopter rings, a tethered battery compartment cap, and a winged rubber eyecup. Also included is a soft storage pouch. - Sensor, IR Illuminator, Display
-
- Digital night vision imager
- Immune to bright light exposure
- Built-in infrared LED illuminator with adjustable brightness
- 330 x 224 full color LED display
- Optical Performance
-
- 2x magnification
- 28mm objective diameter
- 6.4° angular field of view
- Use and Handling
-
- Adjustable focus and diopter
- Powered by two AA batteries
- Runtime is 2-3 hours
- Construction
-
- Lightweight and compact polycarbonate housing
- Ergonomic design mimics PVS-14 shape
- Tethered battery compartment cap
- Screw socket for accessories and adapters
- Knurled focusing and diopter rings
- Headgear and weapon adapters included
- Water- and impact-resistant
- Winged rubber eyecup
UPC: 029757000231 In the Box Bushnell 2x28 AR Optics Digital Sentry Night Vision Monocular (Matte Black) - Pouch
- Headgear Adapter
- Weapon Adapter
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 2x28 AR Optics Digital Sentry Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell AR142BK Specs | Imager | Digital imaging sensor | | Display | 330 x 224 LED display | | Magnification | 2x | | Objective Diameter | 28mm | | Angle/Field of View | 6.4° | | Infrared Illuminator | LED IR illuminator
850 nm wavelength | | Battery / Runtime | 2 x AA batteries / 2-3 hours | | Weatherproofing | Weather-resistant | | Dimensions | 6.8 x 2.7 x 2.2" / 17.2 x 6.9 x 5.6 cm | | Weight | 8.6 oz / 243.8 g | | | | Package Weight | 1.64 lb | | Box Dimensions (LxWxH) | 6.95 x 5.1 x 3.85" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
