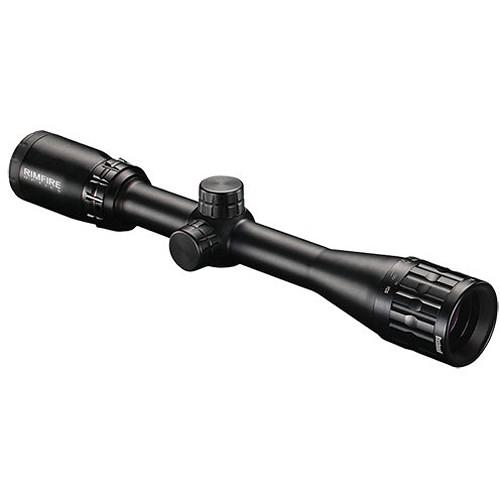

User Manual for Bushnell 3.5-10x36 Rimfire Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 3.5-10x36 Rimfire Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 3.5-10x36 Rimfire Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell designed the 3.5-10x36 Rimfire Riflescope as a mid-power scope to meet the performance of the .17 WSM cartridge. To deliver bright and clear images of your targets in low-light conditions, Bushnell applied their proprietary multiple anti-reflection coatings that are specially designed for high performance at dusk or dawn. Located in the second focal plane is the DropZone 22 reticle that features four medium-weight, long posts and a narrow crosshair. Below the center are three holdover points corresponding to 75, 100, and 125 yards. The parallax-free operation can be adjusted from 10 yards to infinity using the riflescope's adjustable objective. To compensate for ballistics and winds, the windage and elevation can be adjusted with 1/4 MOA increments and offers a total range of 85 MOA.
The lightweight and durable aluminum housing features a 1" single-piece maintube for improved durability and shock resistance. It is also filled with nitrogen to provide a fogproof and waterproof performance. To enable you with fast adjustments, the scope also offers finger-operated capped windage and elevation turrets and a fast focus eyepiece with a knurled zoom ring and a low-profile lever. - Optical Performance
-
- Magnification of 3.5-10x
- 36mm objective diameter
- Multi-coatings for maximum image quality in low light
- Field of view: 30-10.4' at 100 yd
- DropZone 22 Reticle
-
- 2nd focal plane
- Four medium-weight and long posts and a thin crosshair
- Three holdover points corresponding to 75, 100, and 125 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 85 MOA Windage and elevation adjustments
- Adjustable objective parallax corrector: 10 yd to infinity
- Long eye relief of 3.4"
- Exit pupil: 10.3-3.6mm
- Construction Details
-
- 1" single-piece maintube
- Aluminum housing
- Adjustable objective parallax
- Fast-focus eyepiece
- Knurled adjustment rings
- Shock-resistant
- Fogproof, nitrogen-filled
- Waterproof
UPC: 029757613516 In the Box Bushnell 3.5-10x36 Rimfire Riflescope (DropZone 22 Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 3.5-10x36 Rimfire Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 613510B Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 36 mm | | Field of View | 3.5x: 30' @ 100 yd / 10 m @ 100 m
10x: 10.4' @ 100 yd / 3.6 m @ 100 m | | Exit Pupil Diameter | 3.5x: 10.3 mm
10x: 3.6 mm | | Eye Relief | 3.4" / 86 mm | | | | Reticle Type | DropZone 22 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 85 MOA | | Elevation Adjustment | 85 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.5" / 318 mm
Mount Length: 5.5" / 139 mm | | Weight | 15 oz / 425 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 16.4 x 3.2 x 2.5" |
