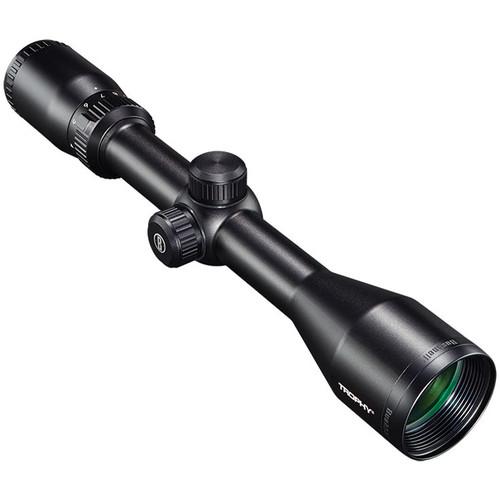

User Manual for Bushnell 3-9x40 Trophy Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 3-9x40 Trophy Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 3-9x40 Trophy Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell re-designed the 3-9x40 Trophy Riflescope for big game hunting. To deliver bright and clear images of your targets, the scope's optics are fully multi-coated. With the 40mm objective lens that will make the most of most lighting conditions, you will be able to get adequate image brightness even at dusk or dawn. Ideal for big game, it's Multi-X reticle is located on the second focal plane and offers four long and heavy posts and an encircled thin narrow crosshair.To compensate for ballistics and winds, the windage and elevation can be adjusted with 1/4 MOA increments and offers a total range of 60 MOA.
The lightweight and durable aluminum housing features a 1" single-piece maintube for improved durability and shock resistance. It is also filled with dry nitrogen to provide a fogproof and waterproof performance. To enable you with fast adjustments, the scope also offers finger-operated capped windage and elevation turrets and a fast focus eyepiece with a knurled zoom ring and a low-profile lever. - Multi-X Reticle
-
- 2nd focal plane
- Four heavy and long tapered posts
- Thin crosshair
- Optical Performance
-
- Magnification of 3-9x
- 40mm objective diameter
- 91% total transmission of light
- Fully multi-coated for better image brightness, clarity, and detail
- Field of view: 38-13' at 100 yd
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA Windage and elevation adjustments
- Long eye relief of 4"
- Exit pupil: 13.3-4.4mm
- Construction Details
-
- 1" single-piece maintube
- Integrated saddle
- Aluminum housing
- Fast-focus eyepiece
- Knurled adjustment rings
- Shock-resistant
- Fogproof, nitrogen-filled
- Waterproof
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 3-9x40 Trophy Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 753960 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 38' @ 100 yd / 12 m @ 100 m
9x: 13' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Multi-X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12" / 305 mm
Mount Length: 5.5" / 139 mm | | Weight | 14.3 oz / 405 g |
