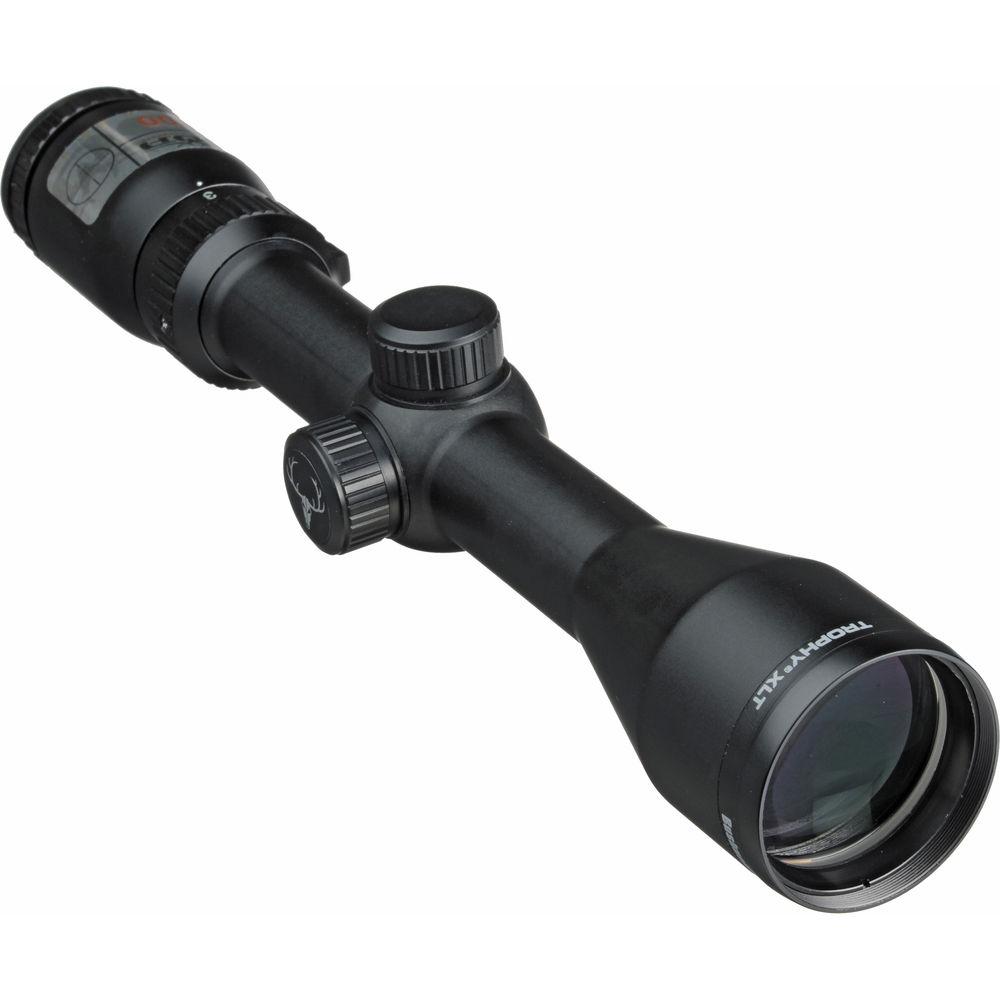

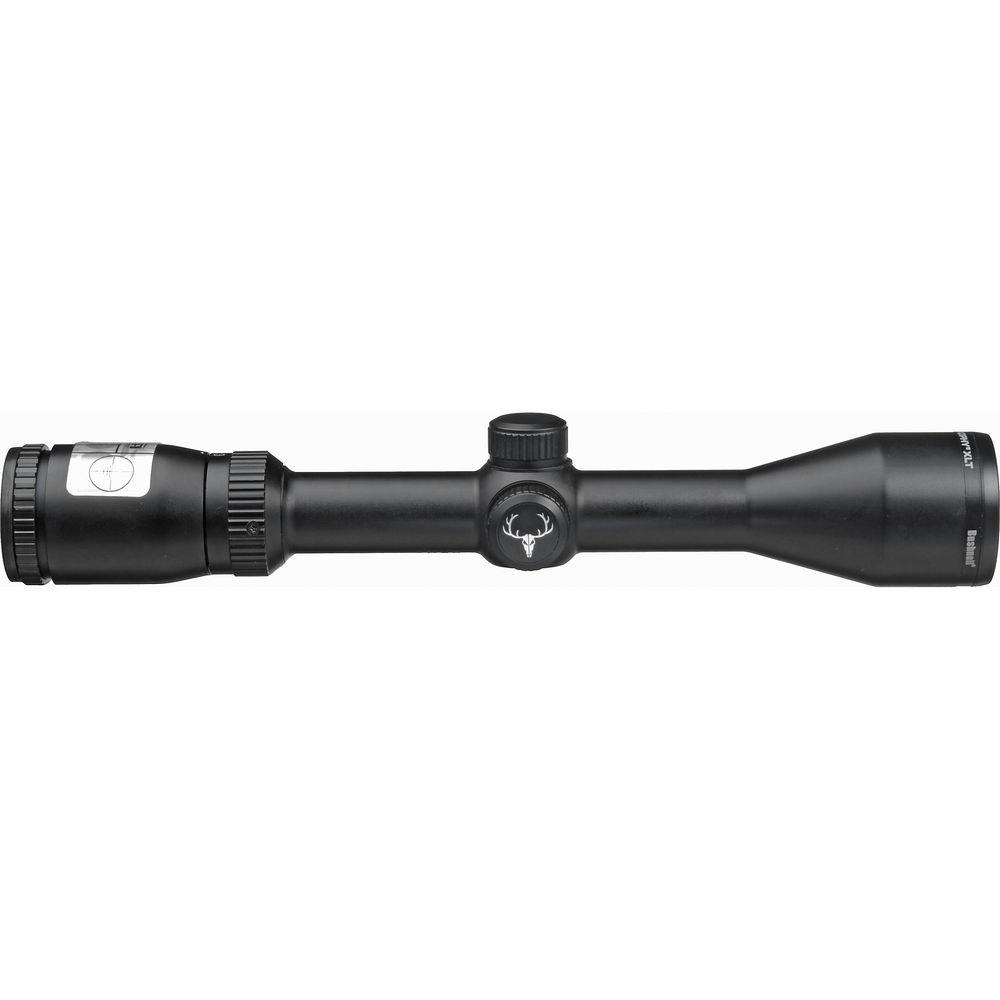

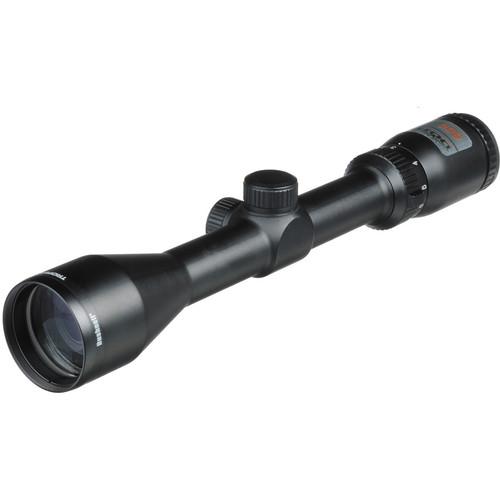

Product description The matte black 3-9x40 Trophy XLT Riflescope from Bushnell is designed as a versatile scope for medium to long-range use in all weather conditions with low-light performance provided by a large 40mm objective lens. The fully multi- coated optics reduces light loss to provide bright and clear images, while the nitrogen-filled and O-ring sealed housing ensures water and fogproof performance.This version of the Trophy XLT is equipped with the DOA 600 reticle on the second focal plane. It is a modified duplex-style crosshair reticle that is designed to be sighted at 100 yards, with aiming points at 100-yard intervals out to 600. - Optical Performance
-
- Magnification: 3-9x zoom
- Objective lens: 40mm
- Fully multi-coated lenses provide up to 91% light transmission
- Second focal plane (SFP) reticle placement
- Use and Handling
-
- Fast-focus eyepiece with 4" eye relief
- Precise 1/4 MOA per click shot correction
- 60 MOA windage and elevation adjustments
- DOA 600 reticle: Dead On Accurate (DOA) long-range reticle features aiming points for distances out to 600 yd. Rack Bracket reference lines assist the shooter when sizing up whitetail and mule deer antlers
- Construction
-
- One-piece aluminum maintube
- Corrosion and scratch-resistant matte black anodized finish
- Nitrogen-filled and O-ring sealed for water and fogproof performance

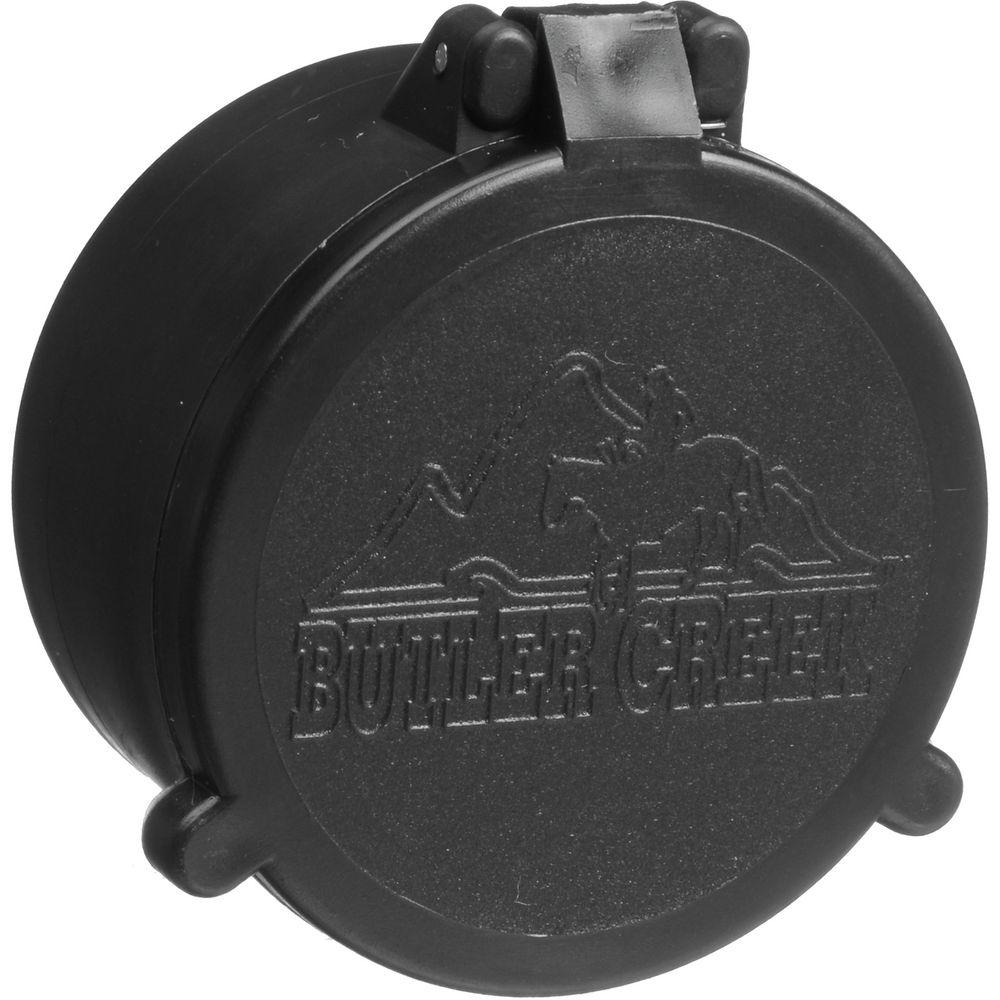

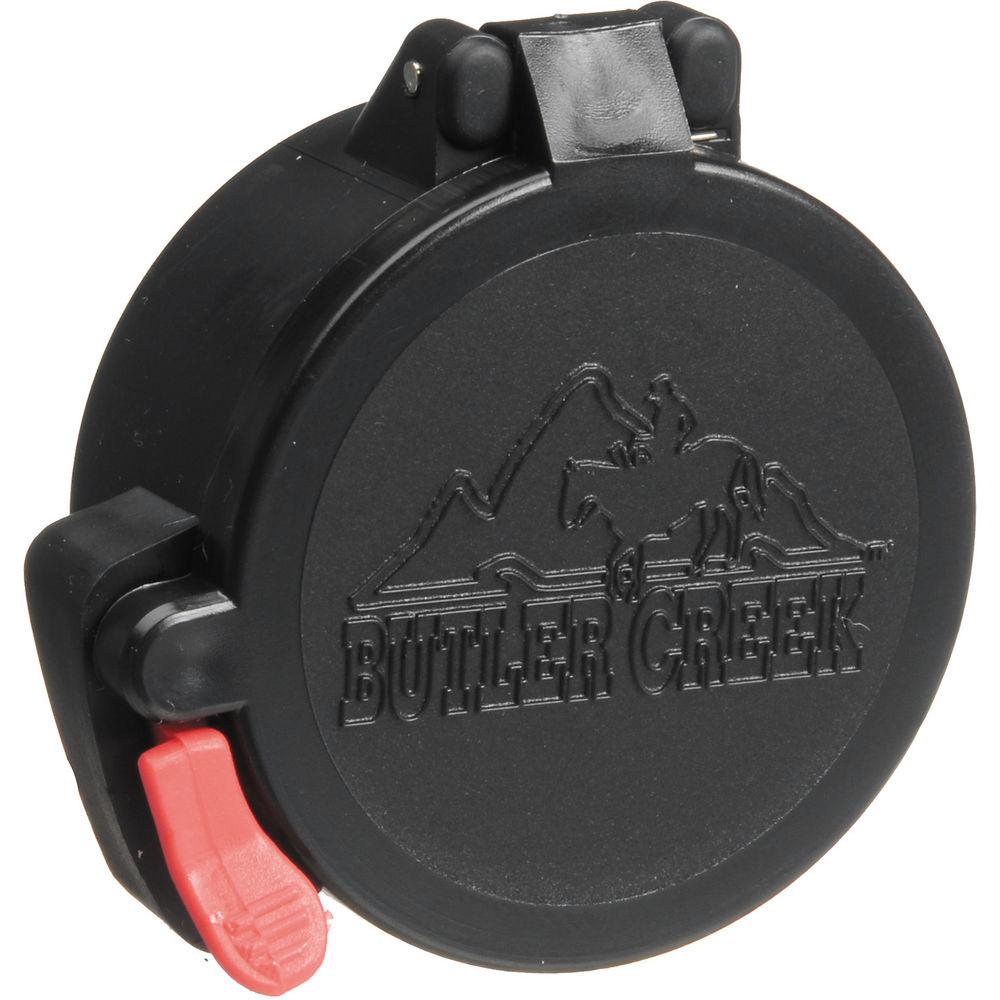

UPC: 029757732019 In the Box Bushnell 3-9x40 Trophy XLT Riflescope (Matte Black, DOA 600 Reticle) Set of Butler Creek Flip-Up Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 3-9x40 Trophy XLT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 733960B Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33' @ 100 yd / 11 m @ 100 m
12x: 11' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 4" / 101 mm | | | | Reticle Type | DOA 600 Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13" / 33 cm | | Weight | 14.3 oz / 405 g | | | | Package Weight | 1.635 lb | | Box Dimensions (LxWxH) | 16.45 x 3.2 x 2.5" |
