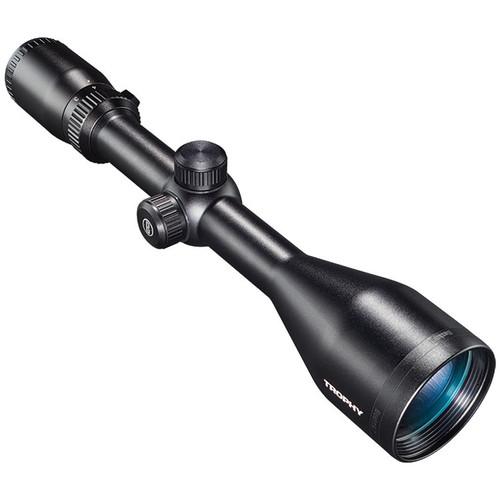

User Manual for Bushnell 3-9x50 Trophy Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 3-9x50 Trophy Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 3-9x50 Trophy Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell optimized their 3-9x50 Trophy Riflescope for big game hunters. The optics feature fully multi-coated lenses that deliver clear and bright images. With the wide 50mm objective lens, which will make the most of any lighting conditions, you will be able to get bright and clear images even at dusk or dawn. To improve precision at longer distances and to compensate for wind, the windage and elevation correction offers 1/4 MOA increments and a 50 MOA of adjustment range. The 4" eye relief will give you enough space to obtain comfortable aim and to prevent recoil-related injury.
The lightweight durable housing features a shorter than average footprint and a 1" single-piece maintube. It is impact-resistant and filled with dry nitrogen to provide a fogproof and waterproof performance. The fast-focus eyepiece with knurled rings offers efficient and slip-free focusing. Multi-X Reticle -
- 2nd focal plane
- Four heavy and long tapered posts
- Thin crosshair
Optical Performance -
- Magnification of 3-9x
- 50mm objective diameter
- Fully multi-coated for better image brightness, clarity, and detail
- Field of view: 38-13' at 100 yd
Use and Handling -
- 1/4 MOA impact point correction
- 50 MOA Windage and elevation adjustments
- Long eye relief of 4"
- Exit pupil: 16.7-5.6mm
Construction Details -
- 1" single-piece maintube
- Integrated saddle
- Shock-resistant aluminum housing
- Fast-focus eyepiece
- Knurled adjustment rings
- Fogproof, nitrogen-filled
- Waterproof
UPC: 029757753922 In the Box Bushnell 3-9x50 Trophy Riflescope (Multi-X Reticle, Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 3-9x50 Trophy Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 753950 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 38' @ 100 yd / 12 m @ 100 m
9x: 13' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
9x: 5.6 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Multi-X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 330 mm
Mount Length: 5.5" / 139 mm | | Weight | 19.2 oz / 545 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 17.5 x 3.3 x 3.2" |
