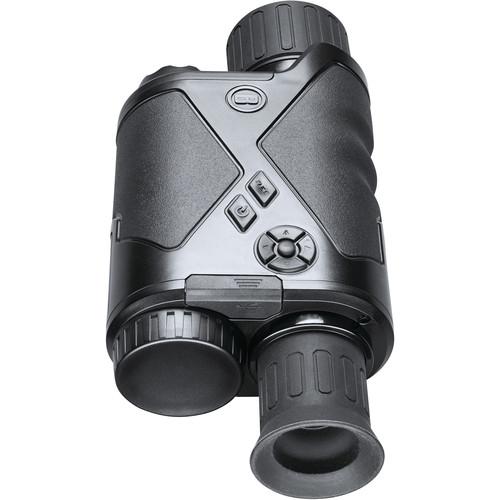

User Manual for Bushnell 3x30 Equinox Z2 Digital Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bushnell 3x30 Equinox Z2 Digital Night
- Product category: NV Monoculars & Multi-Systems Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell NV Monoculars & Multi-Systems
|
User manual for the Bushnell 3x30 Equinox Z2 Digital Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description The 3x30 Equinox Z2 Night Digital Vision Monocular from Bushnell uses an infrared (IR)-sensitive CMOS sensor and a micro LCD screen, instead of a conventional intensifier tube, for its night vision capabilities. A built-in IR illuminator provides an effective night vision range of up to 200 yards. The Z2 records video at 1080p HD resolution and can upload images and videos quickly to a smartphone, tablet, or computer using Wi-Fi and a free app.
A side rail enables accessories, like another illuminator, to be attached directly to the monocular. The screen displays color images during the day, and black and white when the night vision is on for great clarity and contrast. Enhancing the optical 3x magnification is a digital zoom to provide up to 9x magnification. A USB port and an RCA video-out port allow an external monitor or recording device to be attached to view and/or record the live feed. - Optical Performance
-
- 3x optical magnification
- Digital zoom to 9x
- 30mm objective lens
- Fully multi-coated optics increase light transmission and decrease glare
- 383' field of view at 1000 yards
- Digital Night Vision
-
- IR-sensitive CMOS sensor
- Built-in IR illuminator with adjustable intensity
- Maximum viewing range of 200 yards
- Digital image displayed on a micro-LCD screen
- Display shows color images during day, and switches to black and white at night for greater contrast
- Three adjustable image brightness levels accommodate different lighting conditions
- Use and Handling
-
- Auto-off after 10 minutes if no buttons have been pressed
- Display icons show digital zoom, IR setting, battery level, and image brightness setting
- IPX4-rated, water resistant
- Built-in side Picatinny rail to attach accessories like IR illuminators
- 1/4"-20 tripod mount
- Records 1080p video
- Uploads images and video quickly to smartphone, tablet, or computer via Wi-Fi with free app
- USB and RCA video outputs
- Micro-USB card slot
UPC: 029757004550 In the Box Bushnell 3x30 Equinox Z2 Digital Night Vision Monocular 2 x Lens Caps Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 3x30 Equinox Z2 Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell Equinox Z2 Specs | Magnification | 3x | | Objective Lens | 30mm | | Zoom | 9x, digital zoom | | Prism | Roof | | Field of View | 383' @ 1000 yd / 127 m @ 1000 m | | Maximum Distance | 200 yd / 183 m | | Infrared Illuminator | Power: 1 W
Wavelength: 850 nm
Beam Width Angle: 5-7° | | Battery / Runtime | 4 x AA / Not specified by manufacturer
Compatible with lithium, alkaline, or NiMh batteries | | Video | Signal type: NTSC or PAL
Resolution: 1080p
RCA video-out port | | Weatherproofing | IPX4-rated, water resistant | | Tripod Adaptable | Yes | | Temperature Ranges | 14 to 113°F / -10 to 45°C | | Dimensions | 7.9 x 4.1 x 2.3" / 20.0 x 10.5 x 5.8 cm | | Weight | 15 oz / 425 g | | | | Package Weight | 2.17 lb | | Box Dimensions (LxWxH) | 11.45 x 6.15 x 3.25" |
