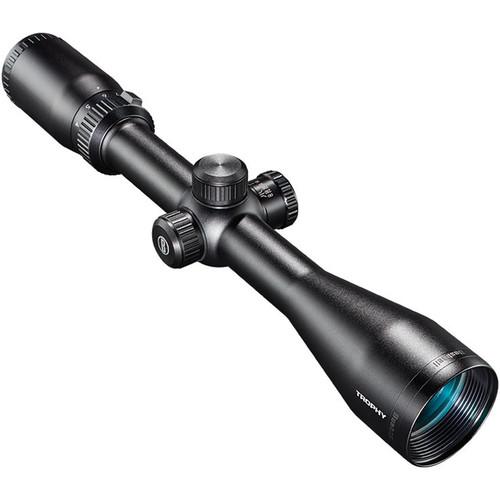

User Manual for Bushnell 4-12x40 Trophy SF Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 4-12x40 Trophy SF Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 4-12x40 Trophy SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell optimized their 4-12x40 Trophy SF Riflescope for big game hunting with centerfire rifles. The optics feature fully multi-coated lenses that deliver clear and bright images. With the 40mm objective lens that will make the most of most lighting conditions, you will be able to get adequate image brightness even at dusk or dawn. Ideal for big game, it's Multi-X reticle is located on the second focal plane and offers four long and heavy posts and an encircled thin narrow crosshair. The side focus parallax adjustment will allow you to get an unambiguous aim from 100 yd to infinity. To improve precision at longer distances and to compensate for wind, the windage and elevation correction offers 1/4 MOA increments and a 60 MOA of adjustment range. The 3.5" eye relief will give you enough space to obtain comfortable aim and to prevent recoil-related injury.
The lightweight and durable housing has a 1" single-piece maintube and integrated saddle and features recoil-resistance performance. To enable you to take it anywhere, the scope is filled with nitrogen for a fogproof and waterproof performance. The fast-focus eyepiece with knurled rings offers efficient and slip-free focusing. Multi-X Reticle -
- 2nd focal plane
- Four heavy and long tapered posts
- Thin crosshair
Optical Performance -
- Magnification of 4-12x
- 40mm objective diameter
- Fully multi-coated for better image brightness, clarity, and detail
- Field of view: 29-10' at 100 yd
- Minimum focusing distance 10 yd
Use and Handling -
- 1/4 MOA impact point correction
- 60 MOA Windage and elevation adjustments
- Long eye relief of 3.5"
- Exit pupil: 10-3.3mm
Construction Details -
- 1" single-piece maintube
- Integrated saddle
- Shock-resistant aluminum housing
- Fast-focus eyepiece
- Knurled adjustment rings
- Fogproof, nitrogen-filled
- Waterproof
UPC: 029757541208 In the Box Bushnell 4-12x40 Trophy SF Riflescope (Multi-X, Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 4-12x40 Trophy SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 754120 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 29' @ 100 yd / 8 m @ 100 m
12x: 10' @ 100 yd / 3 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Multi-X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.8" / 319 mm | | Weight | 16.4 oz / 465 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 16.4 x 3.1 x 2.4" |
