Bushnell 4x20mm Trophy Xtreme Laser Rangefinder

Search your instruction manual in PDF to download

User Manual for Bushnell 4x20mm Trophy Xtreme Laser Rangefinder

Click to enlarge the picture
Bushnell 4x20mm Trophy Xtreme Laser Rangefinder Contents of the user manual for the Bushnell 4x20mm Trophy Xtreme Laser Rangefinder
  • Product category: Laser Rangefinders Bushnell
  • Brand: Bushnell
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bushnell Laser Rangefinders

Bushnell 4x20mm Trophy Xtreme Laser Rangefinder Bushnell 4x20mm Trophy Xtreme Laser Rangefinder
User manual for the Bushnell 4x20mm Trophy Xtreme Laser Rangefinder contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bushnell product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!



Product description

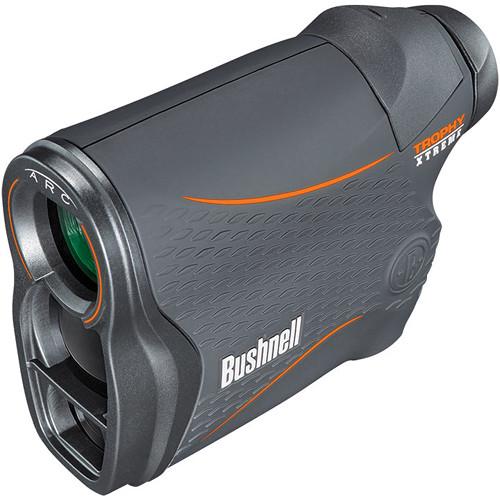

Bushnell's 4x20mm Trophy Xtreme Laser Rangefinder gives you an essential tool for your bow-hunting trip through the integration of an internal inclinometer and a ballistic computer calibrated for bows. After measuring the distance and relative angle to the target, the Xtreme's Angle will display an adjusted aiming distance for improved accuracy out to 99 yards, so you'll know which pin to use. For general-purpose ranging, it can also function as a conventional rangefinder with a max line-of-sight metering distance of 850 yards. The moderate 4x magnification monocular helps to identify your subject while maintaining a wide field of view, and the easy one-button activation for the eye-safe IR laser makes ranging fast and easy. The housing is ergonomically designed to fit comfortably in the hand and the rubber armoring provides a slip-resistant grip, even in cold and wet conditions.
    Optical Performance
    • 4x magnification
    • 20mm objective
    • Compact roof prism
    • 5mm exit pupil
    • Weight: 5.3 ounces
    Rangefinder Performance
    • One-button activation
    • In-view LCD display
    • Distance displayed in yards or meters
    • Class 1 eye-safe IR laser
    • Metering range:
      • General: 7-850 yd (6.4-780m)
      • To a reflective target: 850 yd (780m)
      • To a tree: 600 yd (550m)
      • To a deer: 200 yd (180m)
    • Built-in inclinometer measures the relative angle to subject
    • Runs on one included 9-volt battery
    Angle Range Compensation (ARC)
    • Designed for the specific ballistic characteristics of a bow
    • Uses the rangefinder and inclinometer information to calculate an adjusted range for improved accuracy
    • Displays true horizontal distance from 5-99 yards (4.5-90.5m)
    Construction Details
    • Rotating focus dial
    • Ergonomic design fits comfortably in the hand
    • Protective textured armoring provides a slip-resistant grip
    • Waterproof housing stands up to inclement weather
UPC: 029757026453 In the Box Bushnell 4x20mm Trophy Xtreme Laser Rangefinder
  • CR2 Battery
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bushnell 4x20mm Trophy Xtreme Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bushnell 202645 Specs

    Prism Type Roof
    Magnification 4x
    Objective Lens Diameter 20x
    Field of View 430.0' @ 1000 yd / 143.0 m @ 1000 m
    Laser Type Eye-safe IR
    Metering Range/Accuracy Range: 7.0 - 850.0 yd / 6.4 - 777.2 m
    Accuracy: ±1.0 yd / m
    Exit Pupil Diameter 5 mm
    Eye Relief Not specified by manufacturer
    Weatherproofing Weather-resistant
    Tripod Socket None
    Power Source 1 x CR2 (3 V)
    Dimensions 4.0 x 3.0 x 1.5" / 10.2 x 7.7 x 3.8 cm
    Weight 5.3 oz / 150.3 g
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 5.906 x 5.669 x 3.386"

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 18 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Bushnell 4x20mm Trophy Xtreme Laser Rangefinder

    Subject: Trouble with distance
    Date: 16.06.2021 13:29:39Name: Wes Tonniges
    I’m having trouble with getting the distance I us it will I golf point at flag I will get different yardage I can point it and there’s times it won’t give me a yardage
