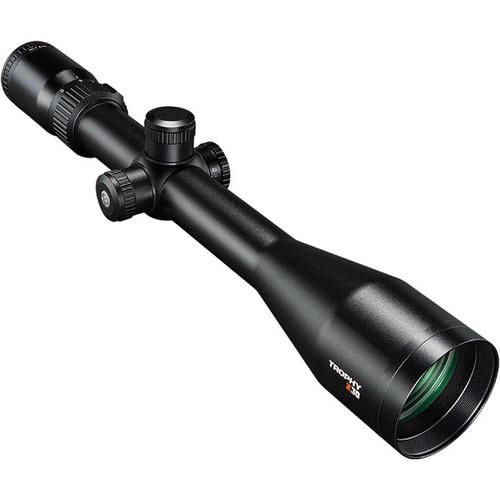

User Manual for Bushnell 6-24x50 Trophy Xtreme SF Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell 6-24x50 Trophy Xtreme SF Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
|
User manual for the Bushnell 6-24x50 Trophy Xtreme SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Bushnell optimized their 6-24x50 Trophy Xtreme SF Riflescope for big game hunting in low-light conditions and at long ranges. The optics feature fully multi-coated lenses that deliver clear and bright images. With the wide 50mm objective, the scope will deliver bright and clear images of your target even in the lowest of light conditions, like dusk or dawn. To add versatility, the external lenses are also enhanced with a permanent RAINGUARD HD water-repellent coating to protect your scope against water, snow, and sleet. Located on the second focal plane, the DOA LR 800 reticle has four medium-weight tapered posts and a thin crosshair. The defining feature of this reticle is its trapezoid grid of fine dots below the crosshair. These dots can serve as reference for wind compensation and bullet drop out to 800 yards. To improve precision at longer distances and to compensate for wind, the windage and elevation correction offers 1/8 MOA increments and a 50 MOA of adjustment range. The 3.6" eye relief will give you enough space to obtain comfortable aim and to prevent recoil-related injury.
The housing is designed with durability in mind. Its 30mm single-piece maintube exhibits improved recoil resistance without sacrificing its light weight. Enabling you to take it anywhere, the scope is filled with nitrogen for a fogproof and waterproof performance. The fast-focus eyepiece with knurled rings offers efficient and slip-free focusing. DOA LR 600 Reticle -
- 2nd focal plane
- Four medium-weight tapered posts and a thin crosshair
- Grid of aiming dots for wind and bullet drop compensation
- Dots are spaced at 100 yd increments out to 800 yd
Optical Performance -
- Magnification of 6-24x
- 50mm objective diameter
- Fully multi-coated for better image brightness, clarity, and detail
- RAINGUARD HD coating repels water, snow, and sleet
- Field of view: 18-4' at 100 yd
Use and Handling -
- 1/8 MOA impact point correction
- 50 MOA Windage and elevation adjustments
- Long eye relief of 3.6"
- Exit pupil: 8.3-2.8mm
Construction Details -
- 30mm single-piece maintube
- Integrated saddle
- Aluminum housing
- Side focus parallax adjustment
- Fast-focus eyepiece
- Knurled adjustment rings
- Shock-resistant
- Fogproof, nitrogen-filled
- Waterproof
UPC: 029757562456 In the Box Bushnell 6-24x50 Trophy Xtreme SF Riflescope (DOA LR 800 Reticle, Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 6-24x50 Trophy Xtreme SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 756245B Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 18' @ 100 yd / 5 m @ 100 m
24x: 4' @ 100 yd / 1 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.8 mm | | Eye Relief | 3.6" / 92 mm | | | | Reticle Type | DOA LR 800 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 23.7 oz / 671 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 17.0 x 3.8 x 3.6" |
