Bushnell 7x26 Elite 1 Mile ARC

Search your instruction manual in PDF to download

User Manual for Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo

Click to enlarge the picture
Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Contents of the user manual for the Bushnell 7x26 Elite 1 Mile ARC
  • Product category: Laser Rangefinders Bushnell
  • Brand: Bushnell
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bushnell Laser Rangefinders

Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo
User manual for the Bushnell 7x26 Elite 1 Mile ARC contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bushnell product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!



Product description

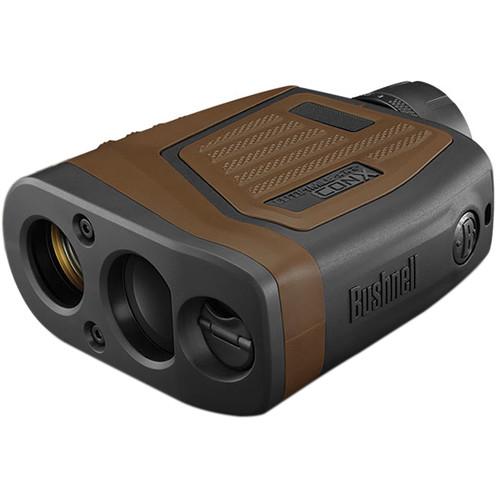

Specifically designed and tailored for hunters, the Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo consists of multiple devices and platforms that work seamlessly to provide fast and accurate solutions for close, medium, and long-range shooting. Going beyond a conventional rangefinder, the Elite 1 has an integrated inclinometer that measures the relative angle to the target, and using one of the advanced ranging modes, users can get an adjusted ranging distance for estimating holdover. Two modes can be used to filter out false reads for close-range or long-distance ranging needs.Included with the rangefinder is a Kestrel Sportsman Ballistics Weather Meter that takes environmental readings including temperature, barometric pressure, wind speed, altitude, relative humidity, and other factors that affect a round's trajectory and ballistic arc. Bluetooth connectivity between the rangefinder, meter, and an Android or iOS device running the free CONX app collects all the data from the rangefinder and meter, and uses preset ballistic curves based on rifle and round to provide and display impact point corrections in inches, centimeters, MOA, or MILS. Data from the rangefinder is also displayed on the mobile device app screen for a shooting partner or spotter.
    Optical Performance
    • 7x magnification
    • 26mm objective lens
    • Compact roof prism
    • High-density BAK4 glass reduces internal light diffraction for improved clarity and contrast
    • Anti-reflection fully multi-coated optics improve light transmission, color rendition, contrast, and overall image brightness
    • RainGuard HD coating makes water bead and roll of lens for clearer views and easier cleaning
    • 340' field of view at 1000 yards
    • Long 19mm eye relief
    • Comfortable 3.7mm exit pupil
    Rangefinder Details
    • Class 1 eye-safe IR laser
    • Measures and displays range in yards or meters
    • ESP2 (Extreme. Speed. Precision. Gen2): Improves ranging speed and accuracy, displaying distance to 0.1 yard
    • Minimum metering distance: 5 yards
    • Maximum metering range: Reflective target: 1760 yards (1 mile); Tree: 1200 yards; Deer: 600 yards
    • Accuracy: ±0.5 yard under 200 yards; ±1.0 yard over 200 yards
    • Integrated inclinometer measures relative upward or downward angle to target with a range of ±90° and accurate to ±1°
    • Ranging information is displayed for 30-seconds then times-out to conserve battery power
    • Integrated Bluetooth to directly connect to smartphones running free Android/iOS app and Kestrel weather meter
    Rangefinder Technologies
    • Regular mode: Line-of-sight distance only — no angle compensation or ballistic drop recommendations
    • AB mode: Rangefinder sends distance and angle to Kestrel meter, which then calculates holdover based on its environmental and wind conditions, and sends combined data back to rangefinder
    • Scan mode: Quickly range to multiple targets, or track moving targets with constantly-updated ranging information; minimum range of 10 yd
    • Brush mode: Ignores close objects like trees, bushes, branches, leafs, and boulders and ranges to furthest targets
    • Bullseye mode: For close-range use, it focuses on near objects and ignores further hits - when more than one target is acquired it ranges to the closest one
    • Rifle HD mode: Line-of-sight, degree of angle, and true horizontal distance, providing bullet drop compensation and holdover recommendations in MOA, MILs, inches, or centimeters from 5-1000 yd/m
    • Rifle mode: Provides line-of-sight, degree of angle, and bullet-drop/holdover recommendations based on one of eight pre-programmed rifle ballistic curves or two black-powder curves
    • Variable Sight-In (VSI): Allows users to set rifle's zero range, selectable at 100/150/200/300 yards, for improved holdover and ballistic drop recommendations
    • ARC (Angle Range Compensation): Measures distance and angle to target and displays adjusted range for more precise shot estimation
    CONX App
    • Available for Android and iOS
    • Rangefinder information displayed on app
    • App has ballistic calculators for building customized ballistic curves based on rifle and round load
    • Configure rangefinder from a mobile device
    • Load up to three custom ballistic curves to rangefinder from app
    • Connect Kestrel meter and send environmental and wind data to rangefinder via smartphone
    • Data from Kestrel is used to display holdover recommendations in inches, centimeters, MOA, or MILs

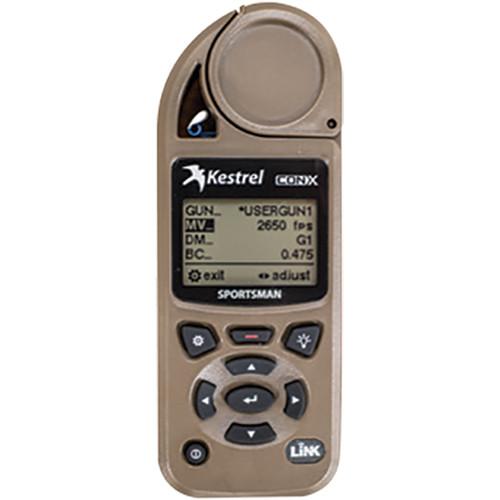

    Kestrel Sportsman Ballistics Weather Meter
    • Measures wind direction and speed, altitude, temperature, and barometric pressure, crosswind, density altitude, dew point, head/tailwind, heat stress index, relative humidity, wind chill,

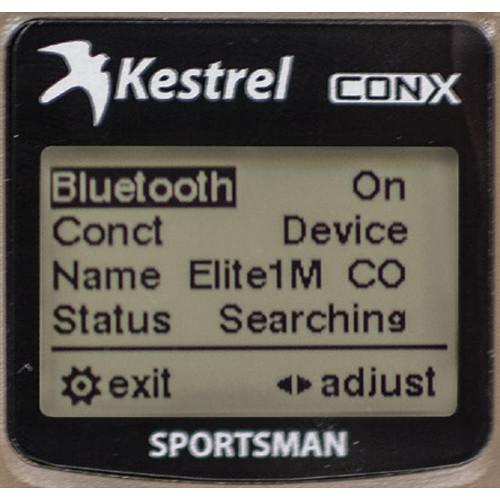

    • Connects to rangefinder and app via Bluetooth

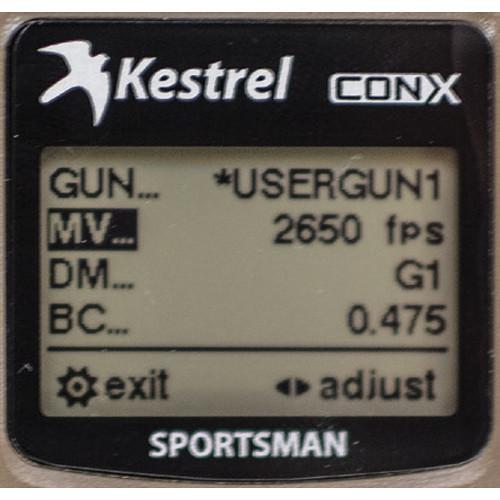

    • Applied Ballistics G1/G7 solver, including aerodynamic jump, spin drift, and Coriolis corrections to achieve accurate long-range shots
    • Choice of solution units: MILs, MOA, or clicks
    • Muzzle Velocity Truing allows for accurate measurement of bullet speed without a chronograph
    • Large hi-res and hi-contrast display is easy to read in full daylight
    • Selectable white, or red backlight to preserve night-adjusted vision
    • IP67-rated dustproof, and submersible; buoyant
    • Includes case, lanyard, and AA battery
    Use and Handling
    • Simple and intuitive two-button user interface: On/off/range/select and Mode
    • Twist-up eyecup for comfortable use with or without eyewear
    • Runs on one CR123 battery

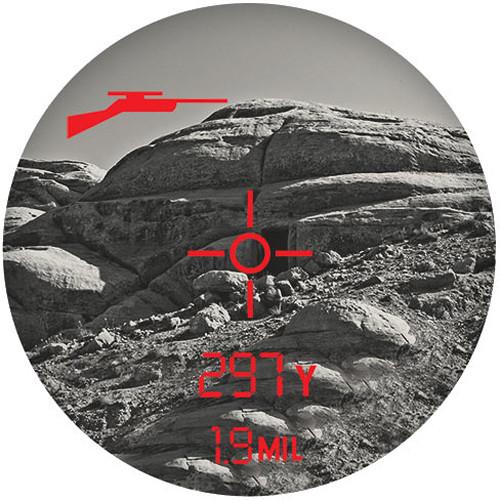

      Display:
    • "Vivid Display Technology" improves contrast, clarity, and light transmission for better views and easier target identification
    • Uncluttered display shows Range and Targeting modes, Distance, battery life, connection status, aiming reticle, and if the laser is activated
    • Four selectable display intensity levels

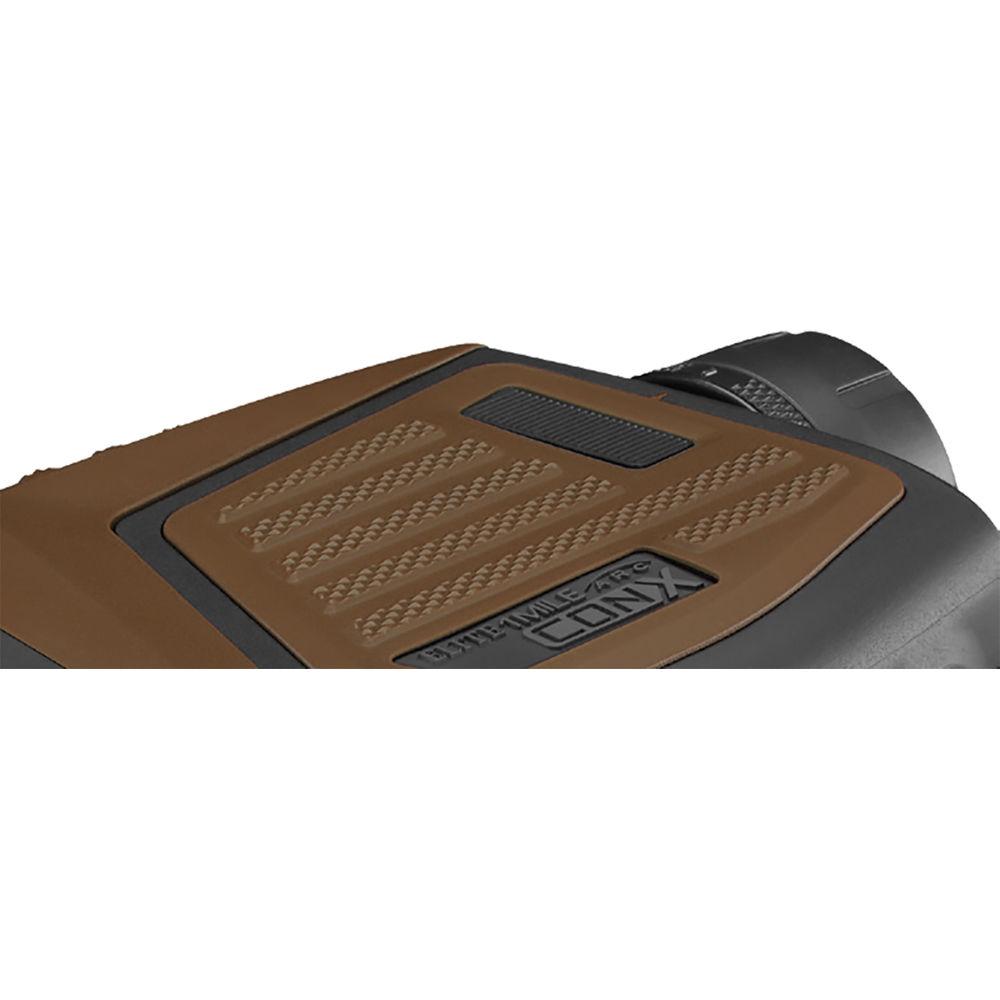

    Construction Details
    • Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
    • Threaded battery compartment cap ensures waterproof rating
    • 1/4'-20 tripod adapter
    • Weight: 12.1 oz with battery
In the Box Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo (Brown)
  • CR123 Battery for Rangefinder
  • Rangefinder Carrying Case
  • Rangefinder Wrist Strap
  • Kestrel Sportsman Ballistics Weather Meter
  • Kestrel Pouch
  • Neck Lanyard for Kestrel
  • AA Battery for Kestrel
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bushnell 7x26 Elite 1 Mile ARC CONX Laser Rangefinder Combo in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bushnell 202540KC Specs

    Prism Type BAK4
    Magnification 7x
    Objective Lens Diameter 26mm
    Field of View 340.0' @ 1000 yd / 114.1 m @ 1000 m
    Laser Type Class 1 eye-safe IR
    Metering Range Minimum: 5.0 yd / m
    Maximum to reflective target: 1760 yd / 1609 m
    Maximum to tree: 1200 yd / 1100 m
    Maximum to a deer: 600 yd / 550 m
    Accuracy 0.5 yd / m, to strong target <200 yd / 180 m
    ±1.0 yd, to strong target >200 yd / 180 m
    Exit Pupil Diameter 3.7 mm
    Eye Relief 19.0 mm
    Weatherproofing Waterproof
    Tripod Socket Yes, 1/4"-20
    Power Source 1 x CR123 lithium battery
    Dimensions 5.1 x 3.7 x 1.7" / 12.9 x 9.4 x 4.3 cm
    Weight 12.1 oz / 343.0 g, with battery

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 57 owners. Add your rating and experience with the product.
