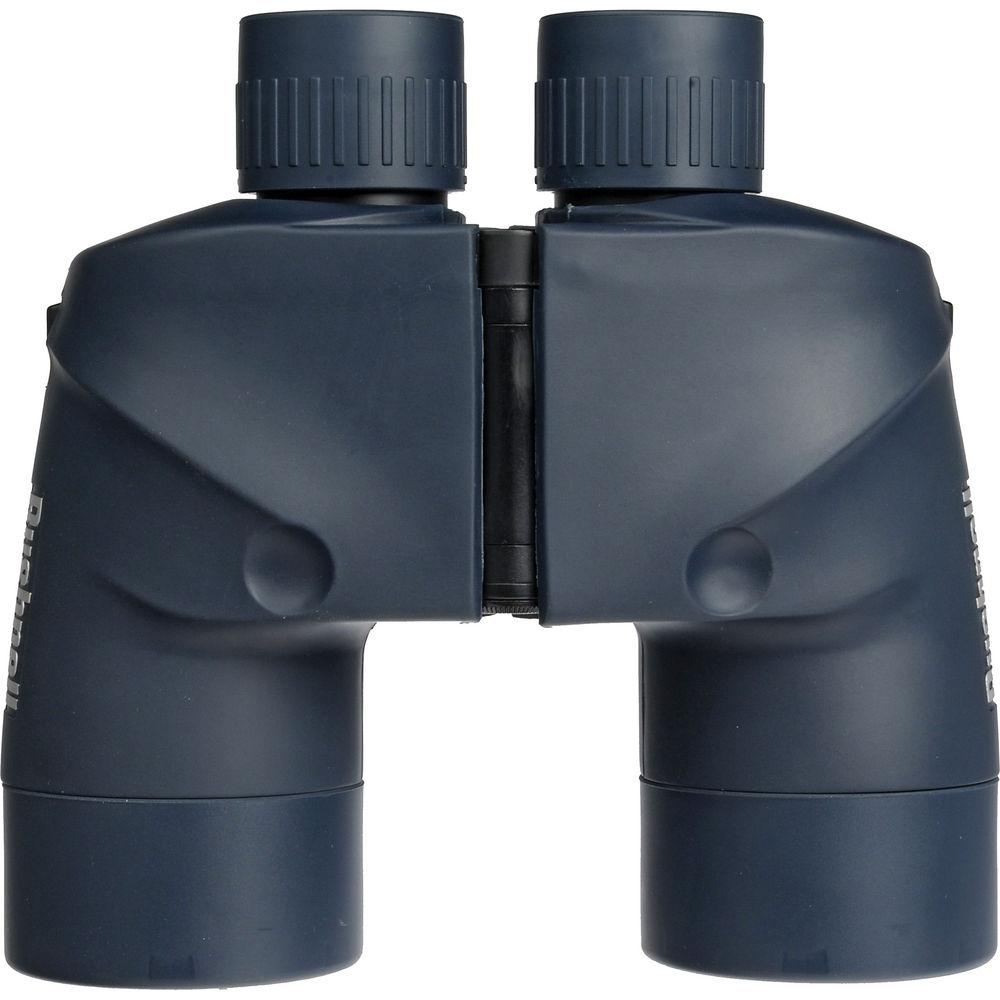

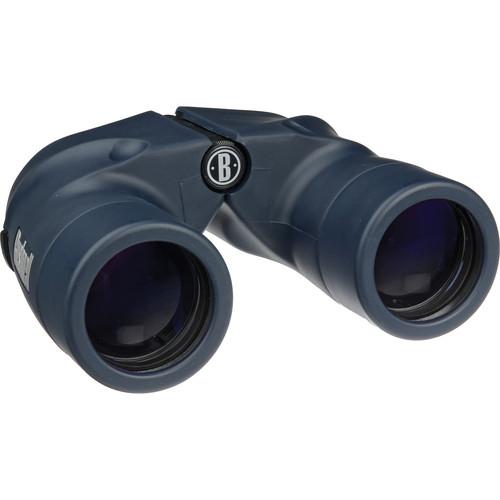

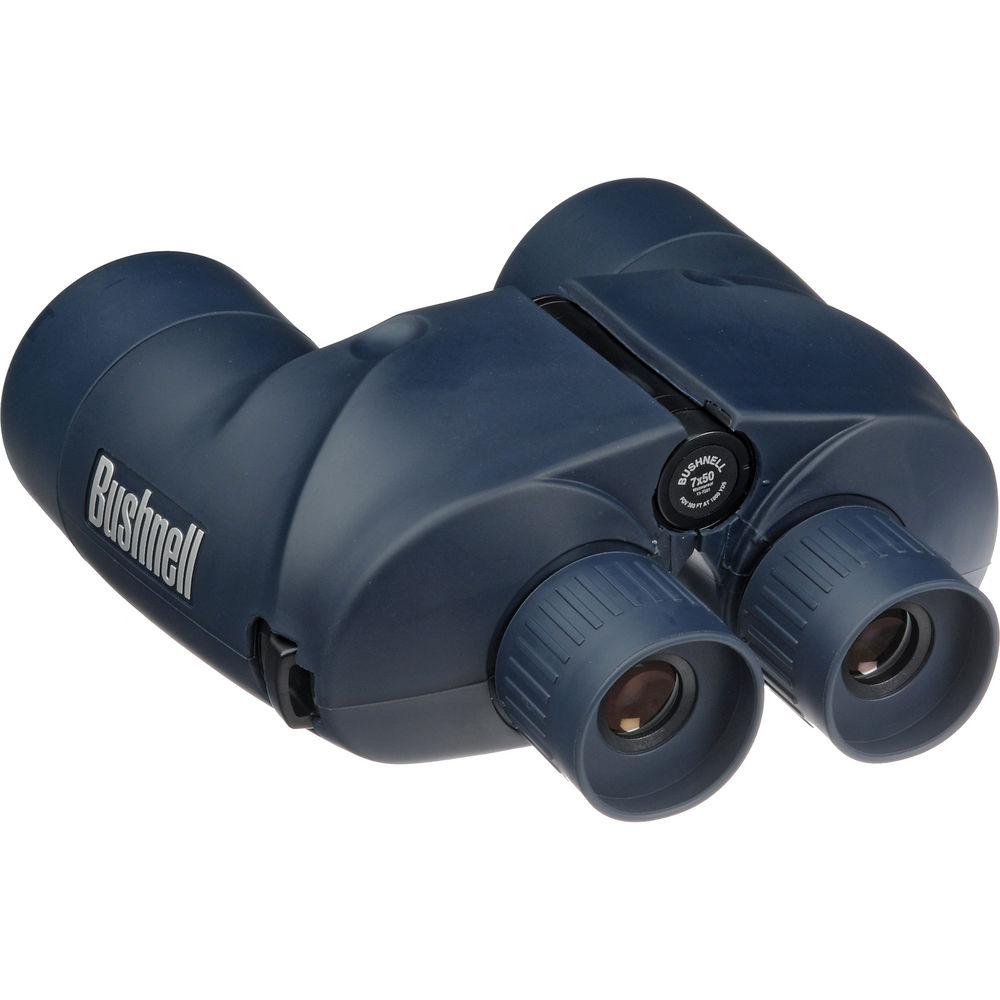

Bushnell 7x50 Marine Binocular

Search your instruction manual in PDF to download

User Manual for Bushnell 7x50 Marine Binocular

Click to enlarge the picture
Bushnell 7x50 Marine Binocular Contents of the user manual for the Bushnell 7x50 Marine Binocular
  • Product category: Binoculars Bushnell
  • Brand: Bushnell
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bushnell Binoculars

Bushnell 7x50 Marine Binocular Bushnell 7x50 Marine Binocular Bushnell 7x50 Marine Binocular Bushnell 7x50 Marine Binocular Bushnell 7x50 Marine Binocular
User manual for the Bushnell 7x50 Marine Binocular contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bushnell product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!



Product description

The B&H Binocular Buying Guide Read More sfzdwqvrxrrcccsyuvbfuwq Take your deep seas' explorations to the next level using the waterproof Bushnell 7x50 Marine Binocular. This binocular possesses all the right characteristics that you find in a nautical binocular beyond its class: a Porro prism design for an enhanced perception of depth, individual focusing, an O-ring sealed nitrogen fill for fogproofing, and a thick rubber armoring designed to resist impact and corrosion from saltwater. In addition to the clarity and brightness of full multi-coatings, the optical system also offers wide 50mm objectives lenses and some protection from harmful UV rays.
    Optical Performance
    • 7x magnification
    • 50mm wide objective aperture
    • BAK4 Porro prisms improve depth perception
    • Full multi-coatings increase transmission and reduce glare
    • Wide 50mm objectives allow more light to pass through and increase image brightness
    • 7.3° angular field of view
    • 25' close focus distance
      Use and Handling
      • Individual focusing for each tube
      • Closed-bridge configuration
      • Fold-down rubber eyecups
      • 18mm eye relief
      • 7.1mm exit pupil
        Construction
        • Aluminum chassis
        • Polymer housing
        • Rubberized covering for a slip-free grip
        • Nitrogen-filled and O-ring sealed: waterproof and fogproof
        • Adaptable to tripods
        • Impact-resistant
        UPC: 029757137517 In the Box Bushnell 7x50 Marine Binocular (Blue)
      • Neck Strap

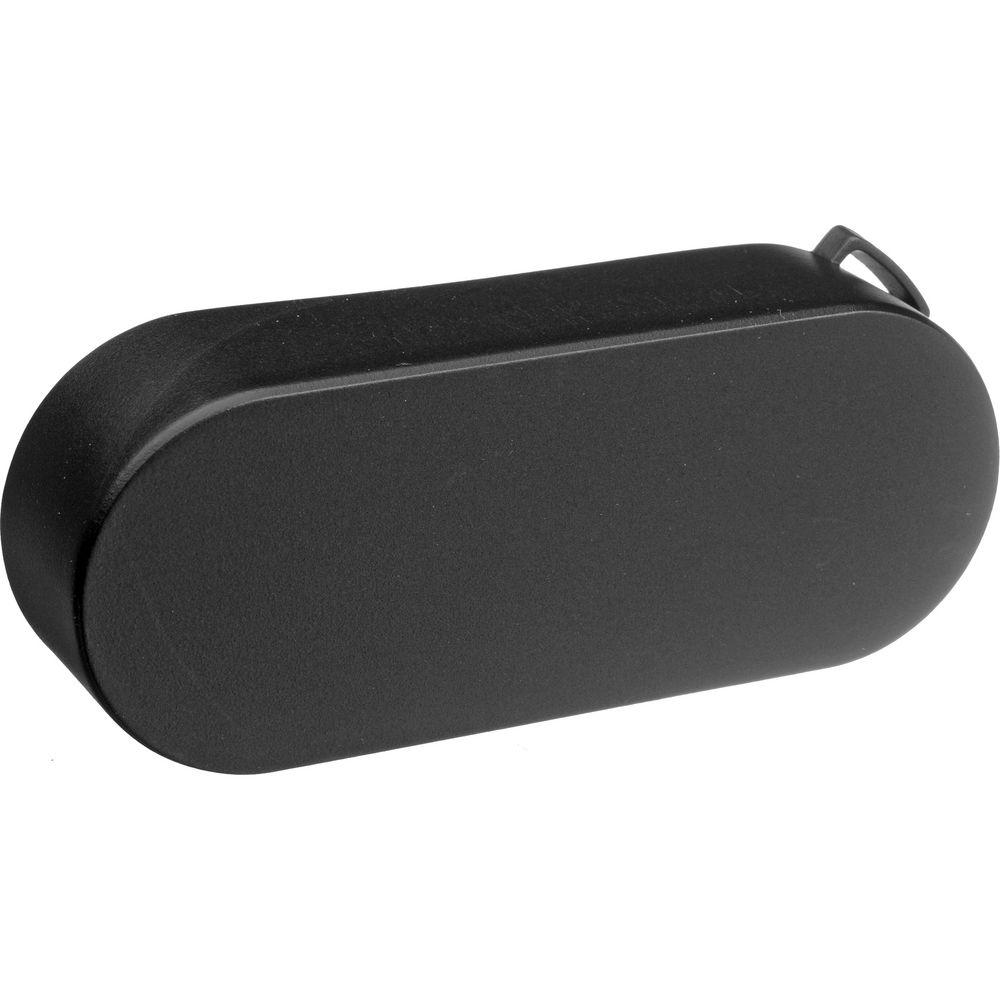

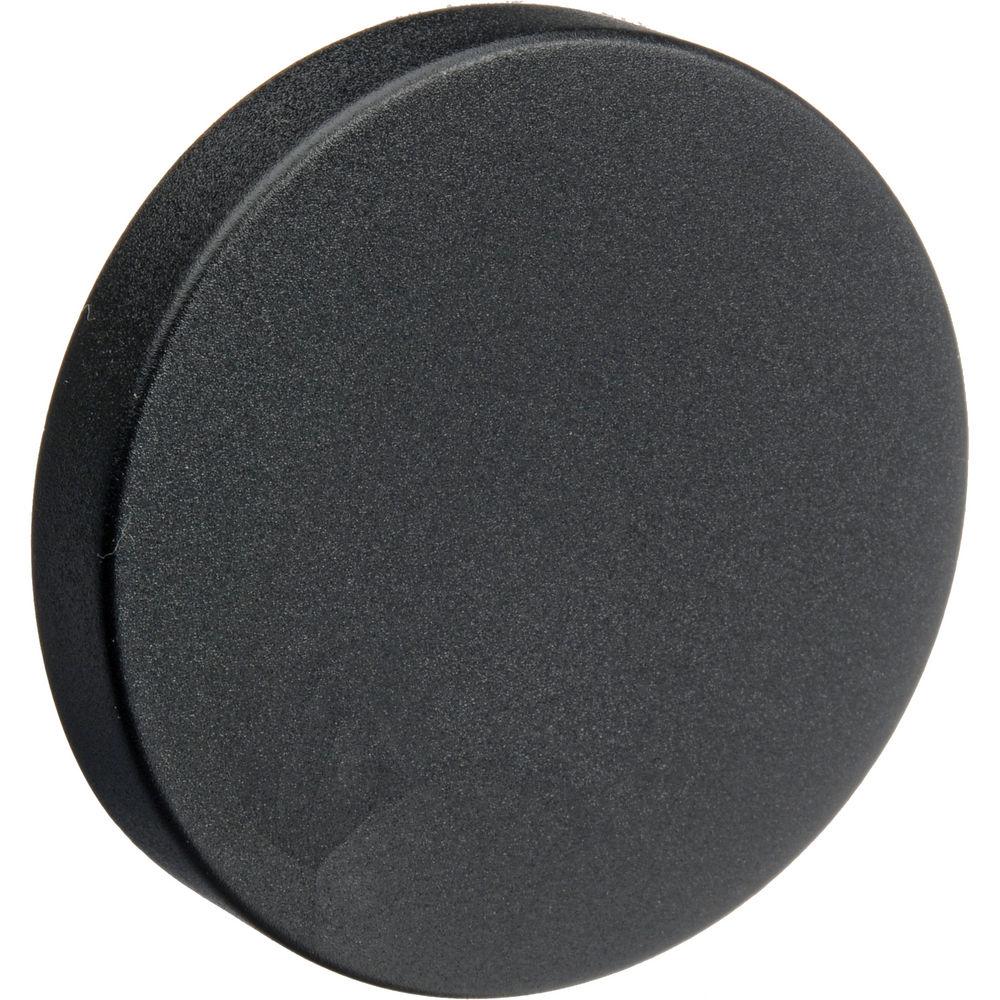

      • 2 x Lens Covers
      • Rainguard
      • Limited Lifetime Warranty
      Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 263.6kbsfzdwqvrxrrcccsyuvbfuwq Table of Contents




Upload User Manual

Have you got an user manual for the Bushnell 7x50 Marine Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Bushnell 137501 Specs

Prism Type Porro
Magnification 7 x
Objective Lens Diameter 50 mm
Angle of View 7.3° (Actual)
Field of View 382.530' @ 1000 yd / 127 m @ 1000 m
Minimum Focus Distance 25' / 7.6 m
Exit Pupil Diameter 7.1 mm
Eye Relief 18 mm
Interpupillary Adjustment 56 to 72 mm / 2.2 to 2.8"
Focus Type Individual
Tripod Mount Yes (Adapter Optional)
Dimensions 7.0 x 3.0" / 177.8 x 76.2 mm
Weight 36.02 oz / 1.021 kg
Package Weight 3.23 lb
Box Dimensions (LxWxH) 9.35 x 8.75 x 3.7"

Rating

98% users recommend this product to others. And what about you?
Rating: 4.9 of 5

This product has already been rated by 17 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to Bushnell 7x50 Marine Binocular

Subject: Bushnell H20 water proof 7x50
Date: 08.12.2022 00:19:27Name: Tim
centre focus is exceedingly stiff to focus, right lense diopta is exceedingly stiff, very difficult to coordinate both lenses. I have other 7x50 binocs which are far clearer and smoother to adjust. ??suggestions
