User Manual for Bushnell 8x32 Trophy Binocular Click to enlarge the picture
Contents of the user manual for the Bushnell 8x32 Trophy Binocular
- Product category: Binoculars Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Binoculars
|
User manual for the Bushnell 8x32 Trophy Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

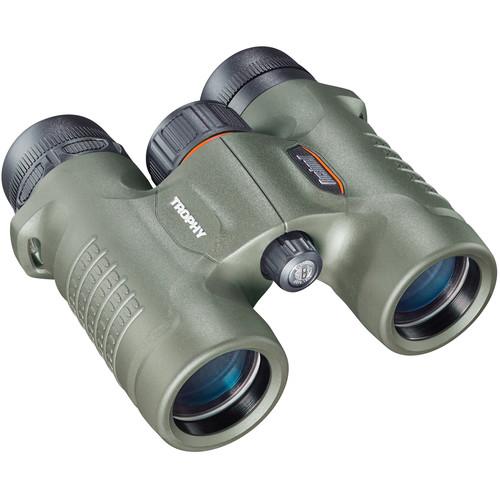

Product description The B&H Binocular Buying Guide Read More Walking the fine-line between compact and full-sized, Bushnell's green 8x32 Trophy Binocular features BAK4 prisms and fully multi-coated optics to create a versatile and capable optic that produces bright and clear images with accurate color rendition. Keeping the magnification at a modest 8x helps to limit most visible hand-shake while providing a wide field of view. The combination of magnification and optics, plus a wide viewing angle, make the Trophy ideally suited for most outdoor activities from hunting, to birding, to boating, and sporting events without adding extra bulk to your pocket or purse.Complementing the optical performance are construction details that make the binocular durable and comfortable to use. The whole optic is protected by rubberized armor that is textured to give it a non-slip grip especially in cold and wet conditions. The optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof - especially when moving from one extreme temperature to another. A right-eye diopter adjustment allows the binocular to be customized to most people's needs, and its twist-up eyecups means it can be comfortably used with or without eye wear. For long-term observational sessions, the Trophy can be mounted on a tripod or other support system using an optional adapter. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- Compact BAK4 roof prisms
- Fully multi-coated optics improve light transmission, increase contrast, and produce true color fidelity
- 393' field of view at 1000 yards
- Wide 60° apparent angle of view
- Use and Handling
-
- Closed bridge configuration
- Large textured center focus wheel
- Right-eye dioptric correction
- Two-position twist-up eyecups for use with or without eyewear
- Tripod mountable with optional adapter
- Comfortable 16.5mm eye relief
- Wide 4mm exit pupil
- Construction Details
-
- Environmentally-friendly lead-free glass
- Nitrogen-filled for water and fogproof performance - even with extreme temperature variations
- Rubber armoring provides a slip-resistant grip
- Weight: 15.5 ounces
UPC: 029757032089 In the Box Bushnell 8x32 Trophy Binocular (Green) Carrying Case Neck Strap 2 x Eyepiece Caps 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 uyuzrczvevfsddrubzvzeuvv Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 850.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 8x32 Trophy Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 333208 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 16.5 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Weight | 15.5 oz / 439.4 g | | | | Package Weight | 1.74 lb | | Box Dimensions (LxWxH) | 8.2 x 6.6 x 3.05" |
