User Manual for Bushnell 8x42 Legend E-Series Binocular Click to enlarge the picture
Contents of the user manual for the Bushnell 8x42 Legend E-Series Binocular
- Product category: Binoculars Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Binoculars
|
User manual for the Bushnell 8x42 Legend E-Series Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

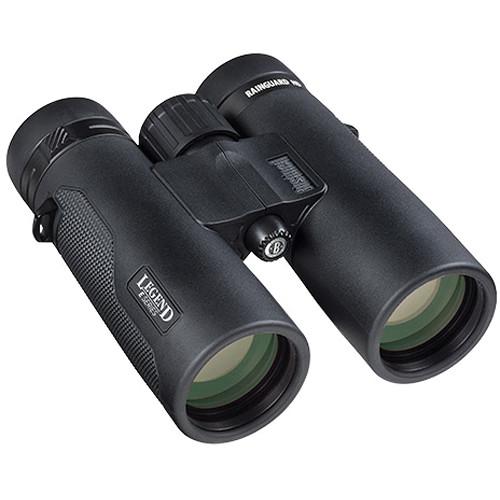

Product description The B&H Binocular Buying Guide Read More xxysewtsyfywwcuvfxrqxuysavba Bushnell's 8x42 Legend E-Series Binocular lives up to the name by offering a full-feature optic designed for a rugged life on the trail. Its 42mm objectives provide competent light-gathering capabilities for use from dawn to dusk while a compact BAK4 roof prism optical path maintains a low profile without sacrificing performance. The entire optical system is anti-reflection fully multicoated with ultra-wide band coatings that create bright and clear images with true color rendition across the entire visible spectrum. Rounding out the performance is a wide-angle 65° apparent angle of view that translates to an immersive 426' field of view at 1000 yards.Complementing the performance is a housing that is designed to withstand the rigors of a life lived outdoors. The chassis is made of a lightweight and corrosion-resistant magnesium alloy that is nitrogen filled and O-ring sealed to be fog and waterproof. The exterior is rubber armored to protect against drops and impacts with a textured slip-resistant grip. A large knurled center focus wheel enables easy use even with gloves, and the diopter locks in place and prevents accidental adjustment allowing for faster focusing. When the weather turns, Bushnell's proprietary RainGuard HD water-repellent coating beads water and oils from lenses for improved vision and image clarity in the rain, fog, or snow. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- BAK4 roof prism configuration
- Ultra Wide Band anti-reflection fully multi-coated optics create bright images with true color rendition across the whole visible light spectrum.
- 426' field of view at 1000 yards
- Wide 65° apparent angle of view
- Use and Handling
-
- Large knurled center focus wheel
- Sliding diopter adjustment ring with easy-to-use thumb tab
- Locking right-eye diopter
- Closed-bridge configuration
- Twist-up click-stop eyecups
- 22.0mm long eye relief, 5.3mm exit pupil
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight and corrosion-resistant magnesium-alloy chassis
- Nitrogen-filled water and fogproof
- Rubber-armored exterior with slip-resistant textured grip
- Eco-friendly lead-free glass
- Proprietary RainGuard HD water-repellent lens coating beads water and oils from lenses for improved vision
- 5.5" long and weighs 22.4oz
UPC: 029757978424 In the Box Bushnell 8x42 Legend E-Series Binocular Eyepiece Rainguard 2 x Objective Lens Caps Neck Strap Carrying Case Microfiber Lens Cloth Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell 8x42 Legend E-Series Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 197842 Specs | Prism Type | Roof | | Magnification | 8x | | Objective Lens Diameter | 42 mm | | Angle of View | 8.1° (Actual) | | Field of View | 425.2' @ 1000 yd / 141.7 m @ 1000 m | | Minimum Focus Distance | 6.5' / 2 m | | Exit Pupil Diameter | 5.3 mm | | Eye Relief | 22.0 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.5" / 14.0 cm | | Weight | 22.4 oz / 635.0 g | | | | Package Weight | 2.185 lb | | Box Dimensions (LxWxH) | 7.2 x 6.15 x 3.0" |
