User Manual for Bushnell Black LED Surveillance Cam Trail Camera Click to enlarge the picture
Contents of the user manual for the Bushnell Black LED Surveillance Cam Trail
- Product category: Trail/Wildlife Cameras Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Trail/Wildlife Cameras
 |
User manual for the Bushnell Black LED Surveillance Cam Trail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

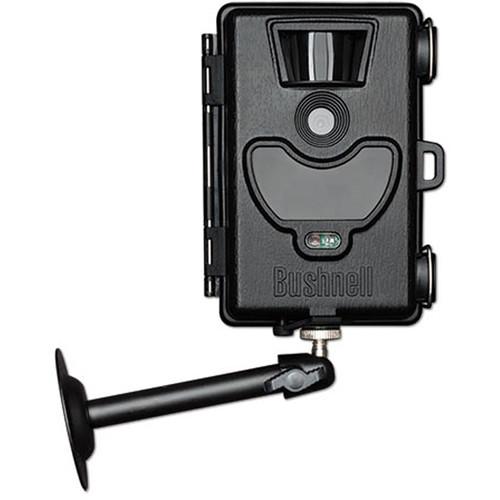

Product description Capture images of wildlife, other hunters, or trespassers with this weatherproof Black LED Surveillance Cam Trail Camera from Bushnell. It features a 6MP photo resolution and records 640x480p video at 30 fps with sound. The Surveillance Cam has a PIR motion sensor with a 1.6-sec trigger speed for capturing images in response to the movement of game or people. It offers an invisible infrared flash with 20 black LEDs so as not to alert or spook subjects. The flash has a 35' effective range.
The camera provides an adjustable photo delay, allowing you to choose intervals from 5 sec to 10 min in length. In Hybrid Capture Mode, it takes full-resolution photos and videos simultaneously. Additionally, the Surveillance Cam features auto focus, auto exposure, and auto white balance. A black-and-white text LCD screen enables menu navigation and settings selection. Images are recorded to SDHC memory cards up to 32GB, and a 4GB card is included. A 90° pivoting bracket and three 1 5/8" threaded mounting screws are also supplied. The camera is powered by 4 AA lithium batteries. - 6MP Resolution
- Capable of taking 2.0, 4.0, or 6.0 MP still images.
- Motion Sensor
- Passive-infrared (PIR) motion sensor with 1.6-sec trigger speed ensures that shots are not missed. This sensor detects the changes in temperature that occur when subjects move, and captures images in response. It has adjustable sensitivity with low, medium, and high settings.
- Adjustable Photo Delay
- Choose intervals from 5.0-59 sec or 1.0-10 min.
- Video Recording
- Captures 640x480p video at 30 fps with sound.
- Multi-Shot Mode
- Captures up to 3 images each time motion sensor is triggered.
- Hybrid Capture Mode
- On this setting, camera takes full-resolution photos and videos simultaneously each time it is triggered.
- Display Screen
- A black-and-white text LCD screen enables menu navigation and settings selection.
- Flash
- Invisible infrared flash with 20 black LEDs that will not alert or spook subjects. The flash has a 35' effective range.
- Information
- Camera puts date, time, and moon phase imprint on every photo and video. By showing the phase of the moon, the camera lets you see which animals are active or inactive during a full or nearly-full moon, when brighter lighting conditions make them more visible to predators. Knowing the moon's phase can also help you determine whether nighttime backgrounds that are too dark or too light are the result of ambient lighting conditions.
- Memory
- Images are recorded on SDHC memory cards up to 32GB, and a 4GB card is included.
- Power
- Runs on 4 AA lithium batteries.
- Durability
- Gasket-sealed throughout for weatherproofing.
- Mounting
- Configured with a standard threaded 1/4" - 20 tripod mount. Includes a 90° pivoting bracket and three 1 5/8" threaded screws.
- Easy Setup
- In less than 5 min, the camera's ready to go.
UPC: 029757195142 In the Box Bushnell Black LED Surveillance Cam Trail Camera Pivoting Bracket 4GB Memory Card 3 x 1 5/8" Threaded Mounting Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Black LED Surveillance Cam Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 119514C Specs | Camera Type | Trail/Wildlife | | | | Image Resolution | 6 MP | | Additional Resolutions | 2 MP x
4 MP x | | Image File Format | JPEG | | Focus Type | Auto | | Built-In Flash | 20 x White No-Glow 940 nm Wavelength IR LEDs | | Effective Flash Range | 35' / 10.7 m | | | | Sensor Type | Passive Infrared (PIR) | | Trigger Speed | 1.6 Seconds | | Sensitivity | 3 Adjustable Settings | | | | Burst Capability | 3 Images per Trigger | | Interval Recording | 5 Seconds (Min)
10 Minutes (Max) | | Exposure Modes | Auto | | White Balance | Auto | | | | Audio Recording | Yes | | Video Recording | Yes | | File Format | AVI | | Video Format | 640 x 480p at 30 fps | | Video Clip Length | 15 Seconds (Max) | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 4 x AA Lithium | | Display | Yes, Grayscale | | Playback | No | | Mounting | 1/4"-20 Female | | Dimensions | 4.7 x 3.7 x 1.8" / 120 x 94 x 46 mm | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.3 x 10.2 x 2.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
