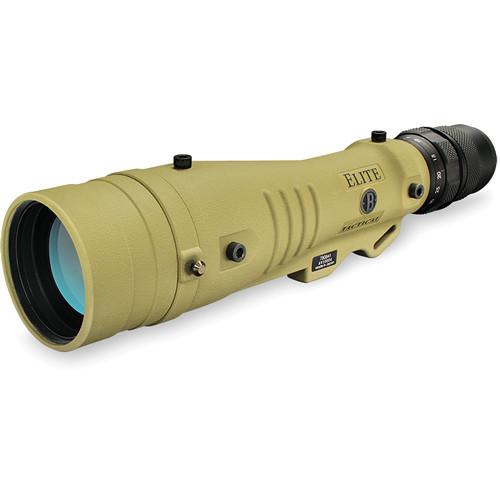

User Manual for Bushnell Elite Tactical LMSS 8-40x60 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Bushnell Elite Tactical LMSS 8-40x60 Spotting
- Product category: Spotting Scopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Spotting Scopes
|
User manual for the Bushnell Elite Tactical LMSS 8-40x60 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The straight-through viewing Elite Tactical LMSS 8-40x60 Spotting Scope from Bushnell combines high-transmission optics with a nitrogen-filled aluminum housing to deliver reliable imaging performance in low light and wet conditions. At the core of the Elite Tactical LMSS is a fully multi-coated optical path, including BAK4 prisms and extra-low dispersion (ED) glass elements that minimize chromatic aberration and maximize the light-gathering ability of the lens system. The transmitted images are bright and color faithful with rich contrast and detail.This configuration from the Elite spotting scope series includes an 8-40x eyepiece that transmits a 250 to 50-foot field of view, ideal for intermediate- to long-range observations. The broad magnification range complements the eyepiece's long 30mm eye relief and twist-up rubber eyecup, which equip this zoom eyepiece for comfortable long-duration viewing. An integrated retractable sunshade shields stray light and is especially useful just after sunrise and just before sunset.In addition to the Elite Tactical LMSS spotting scope's premium image quality and user-friendly handling, this optic also features a nitrogen-filled aluminum housing that is built to deliver fogproof performance in heavy rain and humidity. A rubber-armored body also provides the scope with a non-slip grip that enhances the observer's grip in the rain or when wearing gloves. Further improving the inclement weather performance of the LMSS, exposed lens surfaces are finished with Bushnell's proprietary RainGuard HD lens coating. RainGuard HD prevents moisture from sticking to the objective and ocular surfaces, meaning clearer views and less cleaning of lens surfaces. - Optical Performance
-
- 8-40x eyepiece magnification, 60mm objective
- Fully multi-coated optics, BAK4 prisms
- Extra-low dispersion fluorite glass lenses
- 250-50 ft field of view at 1000 yd
- 30 ft close focusing distance
- 30mm eye relief, 5-1.5mm exit pupil
- Use and Handling
-
- Tripod mounting foot with 1/4"-20 socket
- Straight-through viewing eyepiece, twist-up rubber eyecup
- Sliding sunshade for shielding stray light
- Construction Details
-
- RainGuard HD water-repellent lens coating
- Nitrogen filled for water and fogproof performance
- Rubber-armored aluminum housing
- 2.3 lb weight, 12.7" length
UPC: 029757780843 In the Box Bushnell Elite Tactical LMSS 8-40x60 Spotting Scope (Straight Viewing) Protective Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Elite Tactical LMSS 8-40x60 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 780840 Specs | | | Magnification | 8 to 40x | | Objective Lens Diameter | 60 mm | | Angle of View | 8x: 4.8° (Actual)
40x: 1° (Actual) | | Field of View | 8x: 250.0' @ 1000 yd / 76.2 m @ 1000 m
40x: 50.0' @ 1000 yd / 15.2 m @ 1000 m | | Minimum Focus Distance | 30.0' / 9.1 m | | Exit Pupil Diameter | 8x: 5 mm
40x: 1.5 mm | | Eye Relief | 30.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 12.7" / L: 32.0 cm | | Weight | 2.3 lb / 1.1 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 15.6 x 4.7 x 4.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
