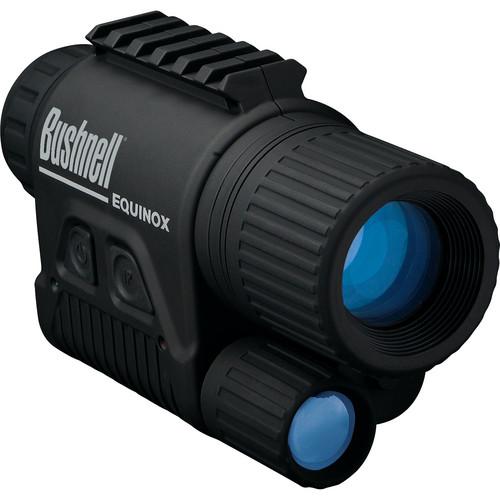

User Manual for Bushnell Equinox 2x28 1st Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Bushnell Equinox 2x28 1st Generation Night
- Product category: NV Monoculars & Multi-Systems Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell NV Monoculars & Multi-Systems
|
User manual for the Bushnell Equinox 2x28 1st Generation Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description Make an enviable addition to your hunting or outdoor gear with Bushnell's Equinox 2x28 1st Generation Night Vision Monocular. This device features a compact and ergonomic rubberized body design that allows users to have a secure one-handed grip. At the core of the monocular are a 1st generation night vision intensifier tube with a resolution of 36 lp/mm and a 2x optical system with a 28mm objective and wide 21° angle of view. The intensifier tube converts an infrared scene profile to visible imagery and will deliver bright and clear images during clear or partially cloudy nights. On very cloudy nights or in completely dark environments, you can turn on a built-in infrared illuminator, which will improve image visibility, brightness, and detail. For activating the intensifier tube and the IR illuminator, you have a simple control pad with easy-to-reach buttons on the right side. To provide visual feedback about the status of your NVD, the monocular also has two LED indicators: one for power (green) and one for the IR illuminator (red).
To enhance your outdoor experience as much as possible, Bushnell outfitted the device with a lightweight, compact, and ergonomic rubberized housing. It is water-resistant, impact-resistant, and compatible with 1/4"-20 tripods. For mounting additional accessories, like illuminators, cameras, and lasers, the body has a short Picatinny/Weaver rail on the top. - Intensifier Tube & IR
-
- 1st generation
- 36 lp/mm resolution
- Built-in infrared illuminator
- Optical Performance
-
- 2x optical magnification
- 28mm objective diameter
- 21° angular field of view
- Use and Handling
-
- Red LED IR indicator
- Green LED power indicator
- Can be mounted to 1/4"-20 tripods
- Construction
-
- Ergonomic and compact
- Built-in Picatinny/Weaver accessory rail
- Rubber covering and knurled rings provide a sure grip
- Rated IPX4 for water-resistance
- Powered by one CR123 battery
- Objective lens cap included
UPC: 029757260192 In the Box Bushnell Equinox 2x28 1st Generation Night Vision Monocular (Matte Black) - Objective Lens Cap
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Equinox 2x28 1st Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 260228 Specs | Intensifier Tube | 1st generation | | Resolution | 36 lp/mm | | Magnification | 2x | | Object Diameter | 28mm | | Angular Field of View | 21° | | Linear Field of View | 112' at 100 yd / 37 m at 100 m | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123 battery / 20 hours | | Weatherproofing | Rated IPX4: Water-resistant | | Temperature Ranges | -22 to 113°F / -30 to 45°C | | Dimensions | 6.0 x 3.2 x 2.1" / 15.3 x 8.2 x 5.3 mm | | Weight | 8.8 oz / 250.0 g | | | | Package Weight | 0.99 lb | | Box Dimensions (LxWxH) | 8.75 x 4.4 x 2.95" |
