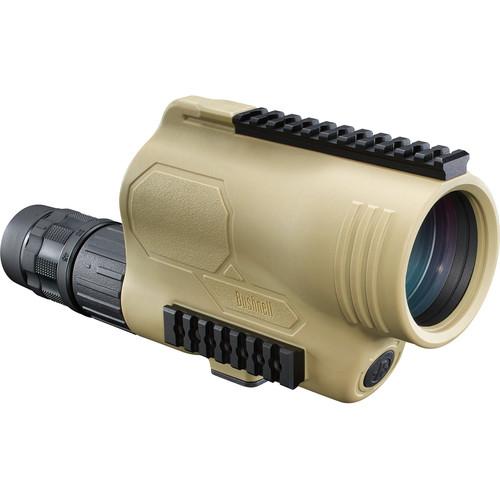

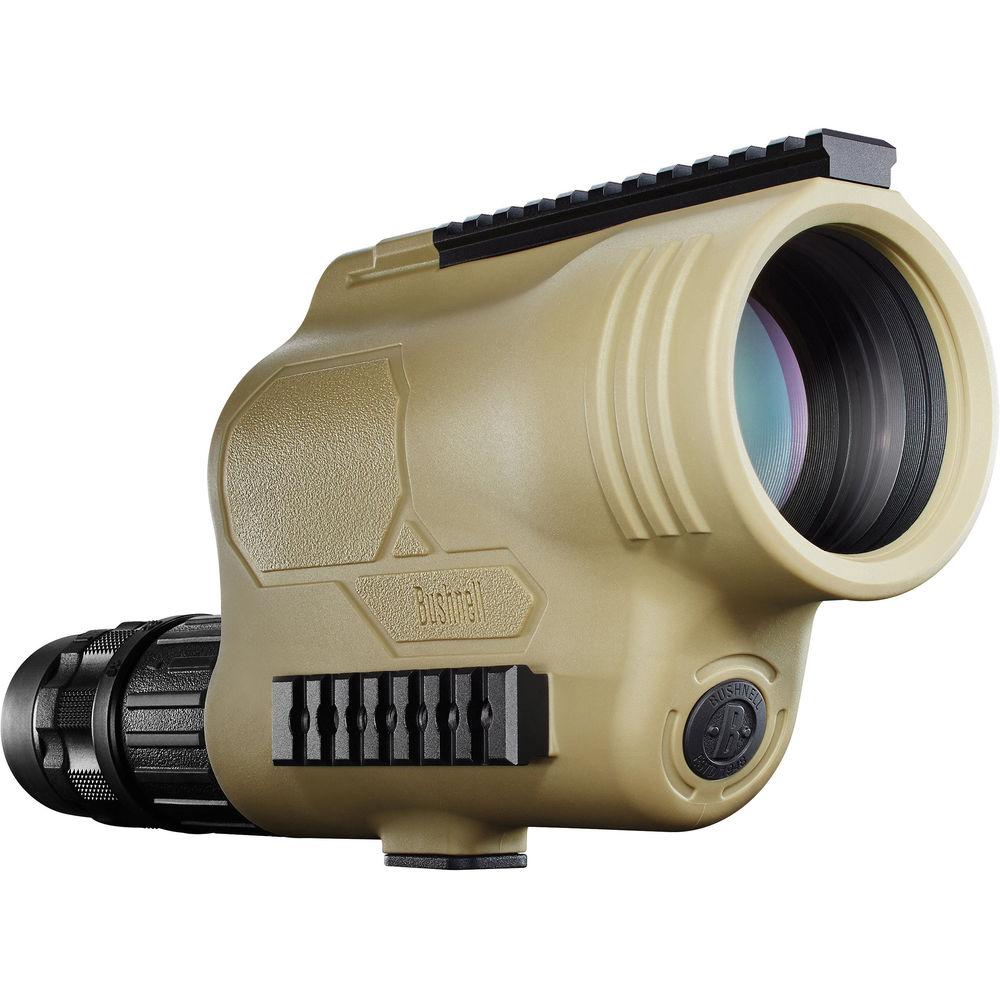

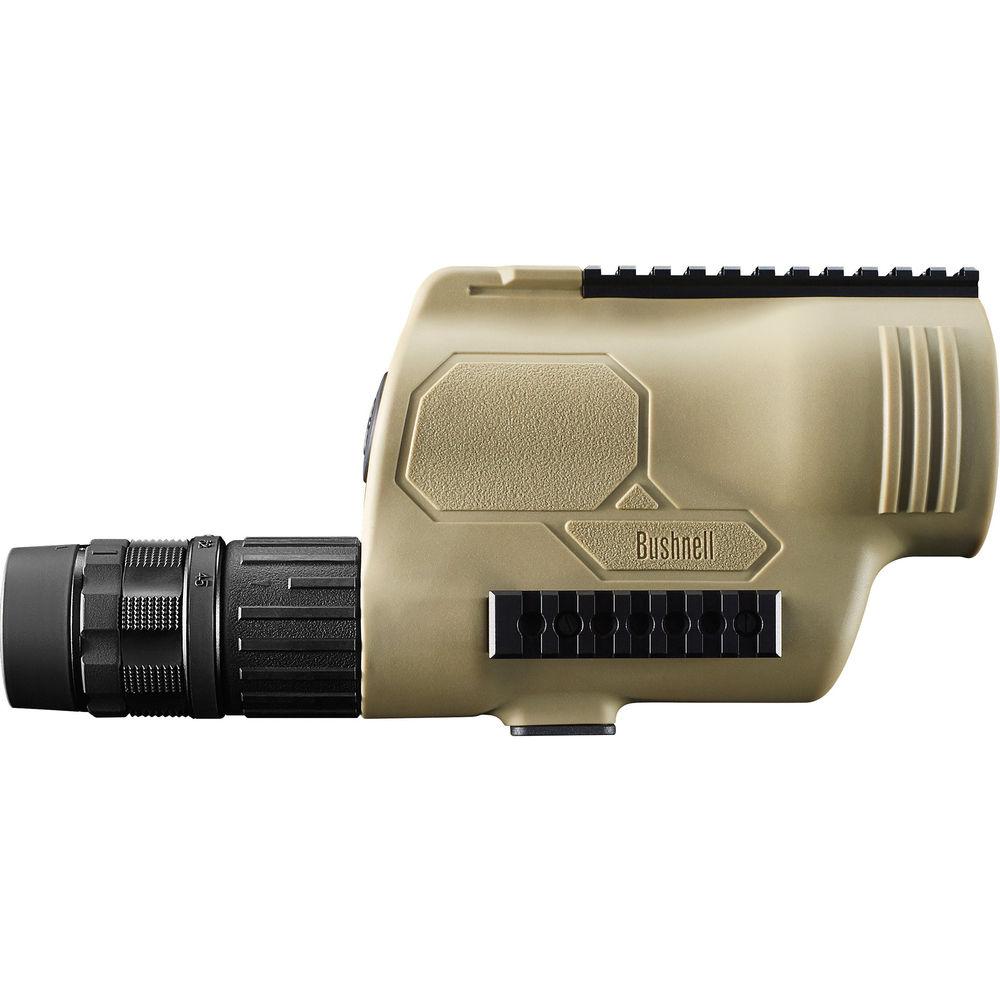

User Manual for Bushnell Legend T-Series 15-45x60 Tactical Spotting Scope Click to enlarge the picture
Contents of the user manual for the Bushnell Legend T-Series 15-45x60 Tactical Spotting
- Product category: Spotting Scopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Spotting Scopes
 |
User manual for the Bushnell Legend T-Series 15-45x60 Tactical Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The straight-through viewing Legend T-Series 15-45x60 Tactical Spotting Scope from Bushnell features high-quality glass with specialized optical coatings to provide clear and bright images. The lens elements are made of extra-low dispersion (ED) glass to correct for chromatic aberrations, increase contrast, and improve color rendition. Additionally, they are multi-coated to prevent internal ghosting and reflections. These coatings are highly reflective and minimize the loss of light while boosting contrast and color fidelity. To maximize light transmission and further ensure sharpness, this spotting scope features BAK4 Porro prisms. These highly refractive prisms minimize spherical aberrations for increased edge-to-edge sharpness and help improve depth of view. This combination of coatings and optics creates a spotting scope that produces bright, clear, highly contrasted images with accurate color transmission.
Focusing is achieved using a dual-focus system that features a coarse fast-focus and a fine-focus wheel. The Legend's lightweight rubber-armored body is impact resistant and nitrogen filled to be both water and fogproof. Its RainGuard HD lens and eyepiece coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
To complement the use of riflescope reticles, the Legend T-Series 15-45x60 Tactical Spotting Scope includes an integrated mil-hash reticle. Located in the front focal plane for accuracy at all magnifications, it is useful for orientation, ranging, and targeting. For additional functionality, a Picatinny rail mount allows for the attachment of accessories such as lights or laser target indicators. - Optical Performance
-
- 15-45x zoom eyepiece
- 60mm objective lens
- Extra-low dispersion (ED) glass corrects for chromatic aberrations for increased contrast and true color rendition
- Multi-coated optics prevent internal ghosting and reflections
- BAK4 Porro prism design for better refraction, edge-to-edge sharpness, and depth of view
- RainGuard HD lens and eyepiece coating results in an improved beading effect when in contact with water for greater cleaning efficiency
- Integrated front focal plane mil-hash reticle for orientation, ranging, and targeting
- Use and Handling
-
- Straight-through viewing eyepiece is in-line with scope's objective
- Dual-focusing dials offer rapid coarse and fine focus
- Twist-up eyecup for use with or without eyewear
- 1/4"-20 tripod mount
- Construction Details
-
- Lightweight, durable, rubber-armored body
- Nitrogen filled for water and fogproof performance
- Picatinny rail mount for accessory attachment
- Includes hard case for storage and transport
UPC: 029757815453 In the Box Bushnell Legend T-Series 15-45x60 Tactical Spotting Scope (Straight Viewing, Mil-Hash Reticle) Hard Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Legend T-Series 15-45x60 Tactical Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 781545ED Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 60 mm | | Field of View | 15x: 180.0' @ 1000 yd / 60.0 m @ 1000 m
45x: 60.0' @ 1000 yd / 20.0 m @ 1000 m | | Minimum Focus Distance | 35.0' / 10.7 m | | Exit Pupil Diameter | 15x: 4 mm
45x: 1.5 mm | | Eye Relief | 30.0 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 11.0" / L: 27.9 cm | | Weight | 37.0 oz / 1.1 kg | | | | Package Weight | 3.985 lb | | Box Dimensions (LxWxH) | 14.15 x 8.6 x 6.3" |
