User Manual for Bushnell Surveillance Cam WiFi Trail Camera Click to enlarge the picture
Contents of the user manual for the Bushnell Surveillance Cam WiFi Trail Camera
- Product category: Trail/Wildlife Cameras Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Trail/Wildlife Cameras
 |
User manual for the Bushnell Surveillance Cam WiFi Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

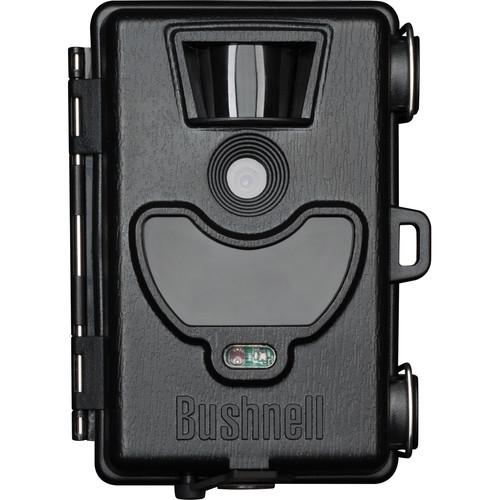

Product description Capture images of wildlife, other hunters, or trespassers with this black Surveillance Cam WiFi Trail Camera from Bushnell. It features a 2MP image sensor and can also create 4MP and 6MP photos by interpolation. Additionally, it records 640x480p video with audio. The Surveillance Cam has a PIR motion sensor with a 32.8' range for capturing photos and videos in response to the movement of game or people. It also makes use of Field Scan time-lapse technology to take shots at selected intervals.
In Hybrid Capture mode, the camera records full-resolution video and photos simultaneously. It offers a flash with a 44' range and 20 black No-Glow infrared LEDs so as not to alert or spook subjects. A black-and-white text LCD screen enables menu navigation and settings selection. The Surveillance Cam records images to the included Eye-Fi Mobi SDHC memory card, which has built-in Wi-Fi connectivity to enable you to view captured images on your smartphone. The camera is powered by 4 AA batteries or the included AC adapter. - 2MP Sensor
- Features a 2MP image sensor and can also create 4MP and 6MP photos by interpolation.
- Motion Sensor
- Passive infrared / PIR motion sensor with a 32.8' range detects the changes in temperature that occur when subjects move, and captures images in response. Thanks to Auto PIR technology, sensor sensitivity is regulated automatically based on temperature for more consistent functionality. You can also manually set the sensitivity to high, normal, or low. If you don't want the camera to fire every time it's triggered, the motion capture delay can be set at various intervals from 1 sec to 60 min, with 10 sec set as default. This will tell the camera to wait for the designated amount of time before capturing another image in response to subject movement. Additionally, camera has motion indicator LED.
- Time-Lapse
- Field Scan time-lapse technology enables the camera to take shots at selected intervals of 1 min, 5 min, 15 min, 30 min, or 60 min, within the hours of your choice and for a duration of up to 24 hr. This allows you to see change over time. Because it's not dependent on game movement in order to be triggered, time-lapse mode is capable of capturing more images than motion-detect mode, giving you a more complete view of what's going on throughout the day and night. Additionally, the live motion trigger is still active during time-lapse capture, meaning it will still capture images whenever it senses motion.
- Shutter
- The right directional key for menu navigation and settings selection doubles as a manual shutter release button, enabling you to take a photo the way you would with a normal camera. Shutter speed during Night Vision operation can be set to low, medium, or high, depending upon whether you want to freeze motion or capture brighter images.
- Video Recording
- Captures 640x480p video at 30 fps in 5, 10, or 60 sec clips, and features a built-in microphone to record accompanying audio.
- Hybrid Capture Mode
- Records full-resolution video and photos simultaneously each time motion sensor is triggered.
- Display Screen
- A black-and-white text LCD screen enables menu navigation and settings selection. You have the option of putting a date and time stamp on images so you can see exactly when they were taken. This can help you track game activity and patterns.
- Flash
- Infrared Night Vision flash with 20 black No-Glow LEDs so as not to alert or spook subjects.
- Memory and Wi-Fi
- The included Eye-Fi Mobi SDHC memory card has built-in Wi-Fi connectivity, allowing you to view images from the camera on your smartphone via the downloadable Eye-Fi app for Windows/Mac and Android/iOS. You can also use an optional regular SD/SDHC card up to 32GB.
- Power
- Runs on 4 disposable AA lithium or alkaline batteries or the included AC adapter with 10' power cord. The adapter should always be connected when you're using the Eye-Fi card because of the large amount of power the card draws. The camera also has a low-power indicator for the battery.
- Durability
- Weather-resistant design withstands the elements.
- Mounting

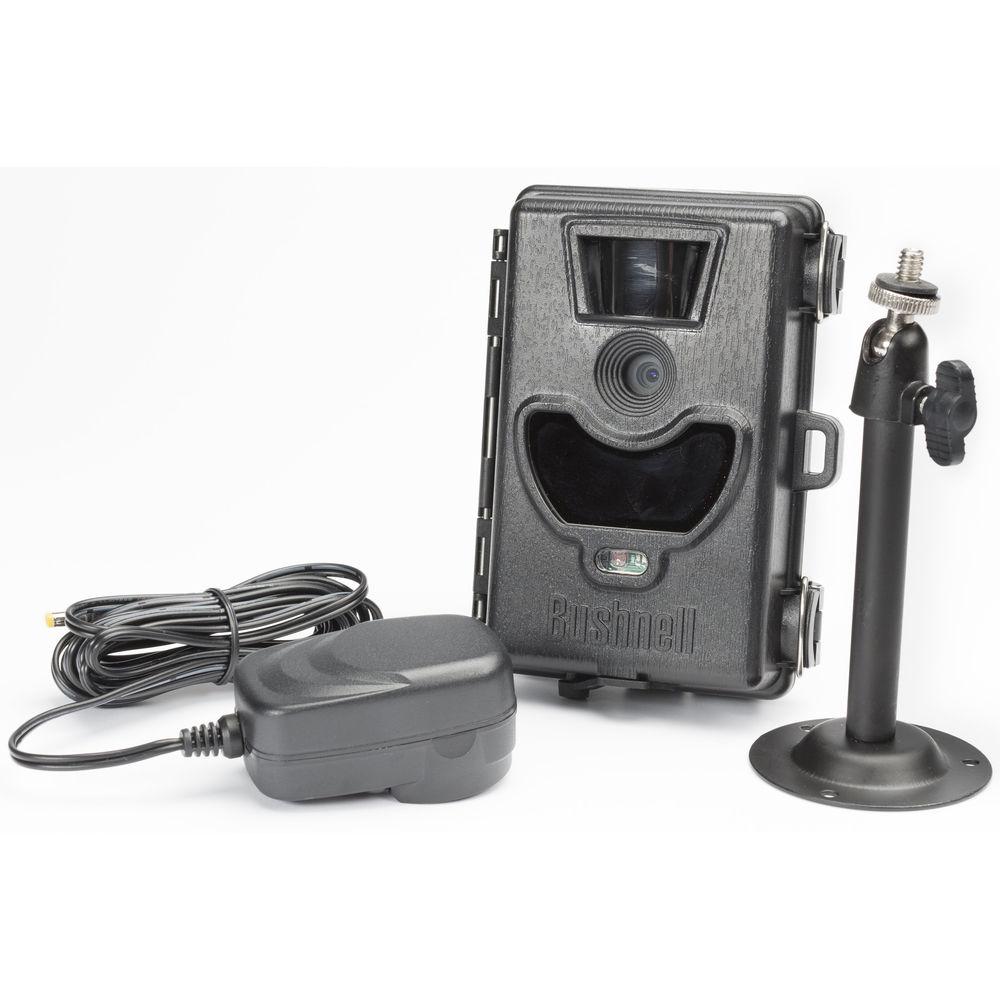

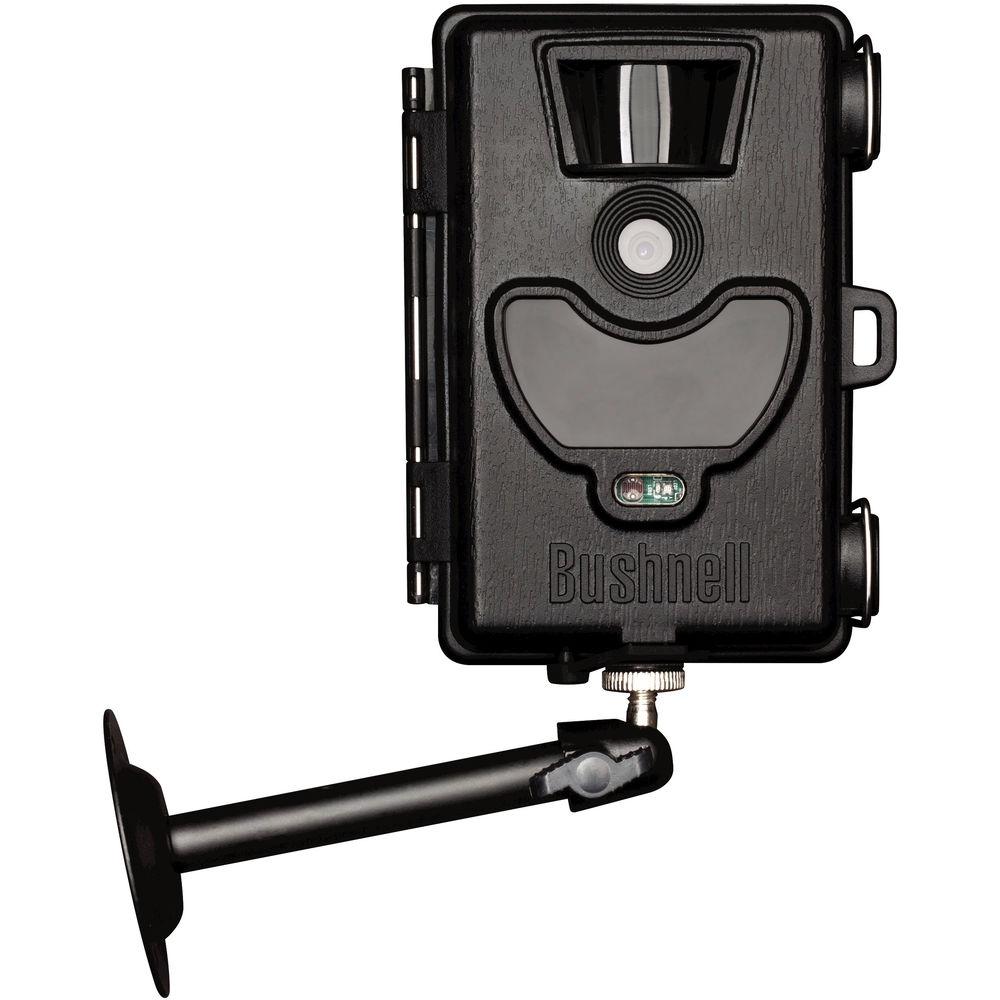

- Includes post-type mount with ball head and mounting screw for camera's 1/4"-20 tripod mount. You can attach this mount to a tree using screws. Also supplied is an adjustable web belt, which fits through the brackets on the back of the camera and wraps around a tree or post for mounting. An optional security case and cable lock are available to prevent theft or tampering.
- Connectivity
- USB port for image transfer to computer.
UPC: 029757195197 In the Box Bushnell Surveillance Cam WiFi Trail Camera (Black) Eye-Fi Mobi Wi-Fi Card AC Adapter (10') vzyywtzftvrzza Adjustable Web Belt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Surveillance Cam WiFi Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 119519 Specs | Camera Type | Trail/Wildlife | | | | Image Resolution | 2 MP | | Additional Resolutions | 4 MP x (Interpolated)
6 MP x (Interpolated) | | Angle of View | 50
