Bushnell Trophy Cam HD Aggressor Low-Glow

Search your instruction manual in PDF to download

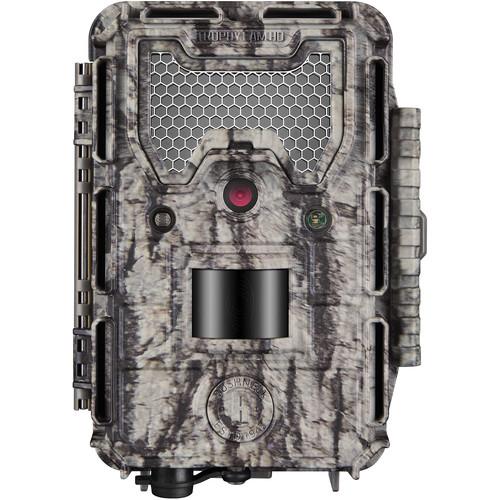

User Manual for Bushnell Trophy Cam HD Aggressor Low-Glow Trail Camera

Click to enlarge the picture
Bushnell Trophy Cam HD Aggressor Low-Glow Trail Camera Contents of the user manual for the Bushnell Trophy Cam HD Aggressor Low-Glow
  • Product category: Trail/Wildlife Cameras Bushnell
  • Brand: Bushnell
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bushnell Trail/Wildlife Cameras

User manual for the Bushnell Trophy Cam HD Aggressor Low-Glow contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bushnell product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!



Product description

With a 24MP resolution and a quick 0.2-second trigger speed, the camo Trophy Cam HD Aggressor Low-Glow Trail Camera from Bushnell offers the ability to capture high-resolution stills or HD video of wildlife and people on your property or hunting grounds. It's equipped with a 2.4" screen for viewing your images and video. The camera's 36 Low-Glow LED flash array has a range of 100', but won't spook game or alert an intruder. The shutter is ready for another photo after a recovery time of a half second. A removable anti-reflection LED cover helps to ensure the camera remains unnoticed by reducing reflections on the LED array's protective panel, but it can be removed if you want to boost the flash output a bit. The passive infrared motion sensor has a detection range of 100'. Along with triggered images and videos, the Trophy Cam HD Aggressor includes a reinforced cable lock channel and latch, is weather resistant, and is operable at temperatures from -4 to 140°F.
    Photo and Video Capture
    • Maximum Still Image Resolution: 24MP
    • Maximum Video Resolution: HD 1920 x 1080p
    • Video Length: Programmable from 5-60 sec
    Motion Sensor
    • PIR (passive infrared) motion sensor captures images when triggered by subject movement
    • Detects changes in temperature that occur when subjects move, and captures images in response
    • 60' detection range
    • 45° angle of coverage
    • Very fast 0.2-sec trigger speed helps ensure you won't miss the shot
    • Adjustable Sensitivity: Low, normal, and high
    • Programmable Trigger Interval: 1 sec to 60 minutes
    Interval Recording
    • Field Scan 2X takes time-lapse images at selectable intervals from 1-60 minutes
    • Two available time slots per day (such as dawn and dusk)
    • Allows you to see patterns and change over time
    • Useful for recording a wide range of subjects/events, including game, weather, plants, and construction site development
    • Live motion trigger is still active during time-lapse capture, so it will capture images whenever it senses motion to prevent you from missing action in between time intervals
    Continuous Shooting
    • Multi-Image Mode: Captures 2-3 images per trigger
    Flash
    • A 36-LED Low-Glow flash with an effective range of 100'
    Day/Night Sensor
    • Automatic day/night sensor further helps with proper exposure, ensuring clear, crisp images in daylight and after dark
    Setup, Display, and Options
    • 2.4" screen for viewing images or video in the field
    • Geotags photos with GPS coordinates for game movement tracking
    • Date, time, temperature, and moon phase stamping on images
    Memory
    • Records photos and videos to user-supplied SD/SDHC memory cards up to 32GB
    Power
    • Runs on 8 AA batteries, which can provide up to 12 months of power depending on usage and settings
    • Can operate on 4 AA batteries on emergency power basis
    Mounting
    • Integrated, 1/4"-20 threaded mount enables connection to a tripod or tree mount
    • Includes adjustable web belt for an alternative way of attaching camera to tree or post
    Durability
    • Weather-resistant housing for protection against elements during extended outdoor use
    • Temperature Range: -5 to 140°F / -20 to 60°C
UPC: 029757198754 In the Box Bushnell Trophy Cam HD Aggressor Low-Glow Trail Camera (Camo)
  • Mounting Strap
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bushnell Trophy Cam HD Aggressor Low-Glow Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bushnell 119875C Specs

    Camera Type Time-Lapse/Trail/Wildlife
    Image Resolution 24 MP
    Image File Format JPEG
    Focus Type Auto
    Built-In Flash 36 x Black Low-Glow 850 nm Wavelength IR LEDs
    Effective Flash Range 100' / 30.5 m
    Time/Date Stamp Yes
    Sensor Type Passive Infrared (PIR)
    Detection Range 100' / 30.5 m
    Trigger Speed 0.2 Seconds
    Sensitivity Auto, Plus 3 Adjustable Settings
    Burst Capability 1 Image per Trigger (Min)
    3 Images per Trigger (Max)
    Interval Recording 1 Second (Min)
    60 Minutes (Max)
    Audio Recording Yes
    Video Recording Yes
    File Format AVI
    Video Format 1920 x 1080p
    Video Clip Length 5 Seconds (Min)
    60 Seconds (Max)
    Wired Connectivity Mini-USB (Type B)
    Operating Temperature -4 to 140°F / -20 to 60°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Memory Card Type SDHC (Up to 32 GB)
    Built-In Memory 32 MB
    Battery Type 4 x AA
    8 x AA (Optional)
    Display Yes, 2.4" / 6.1 cm
    Mounting 1/4"-20 Female
    Mounting Strap (Included)
    Dimensions Not Specified by Manufacturer
    Package Weight 1.155 lb
    Box Dimensions (LxWxH) 9.0 x 5.75 x 3.25"
