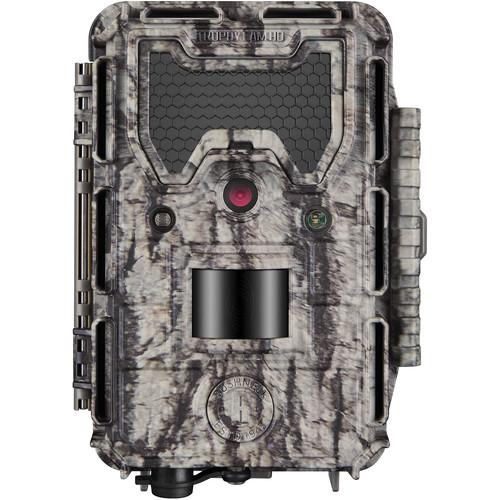

User Manual for Bushnell Trophy Cam HD Aggressor No-Glow Trail Camera Click to enlarge the picture
Contents of the user manual for the Bushnell Trophy Cam HD Aggressor No-Glow
- Product category: Trail/Wildlife Cameras Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Trail/Wildlife Cameras
|
User manual for the Bushnell Trophy Cam HD Aggressor No-Glow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|
Product description With a 24MP resolution and a quick 0.2-second trigger speed, the camo Trophy Cam HD Aggressor No-Glow Trail Camera from Bushnell offers the ability to capture high-resolution stills or HD video of wildlife and people on your property or hunting grounds. It's equipped with a 2.4" screen for viewing your images and video. The camera's 48 No-Glow LED flash array has a range of 80', but won't spook game or alert an intruder. The shutter is ready for another photo after a recovery time of a half second. A removable anti-reflection LED cover helps to ensure the camera remains unnoticed by reducing reflections on the LED array's protective panel, but it can be removed if you want to boost the flash output a bit. The passive infrared motion sensor has a detection range of 100'. Along with triggered images and videos, the Trophy Cam HD Aggressor includes a reinforced cable lock channel and latch, is weather resistant, and is operable at temperatures from -4 to 140°F. - Photo and Video Capture
-
- Maximum Still Image Resolution: 24MP
- Maximum Video Resolution: HD 1920 x 1080p
- Video Length: Programmable from 5-60 sec
- Motion Sensor
-
- PIR (passive infrared) motion sensor captures images when triggered by subject movement
- Detects changes in temperature that occur when subjects move, and captures images in response
- 60' detection range
- 45° angle of coverage
- Very fast 0.2-sec trigger speed helps ensure you won't miss the shot
- Adjustable Sensitivity: Low, normal, and high
- Programmable Trigger Interval: 1 sec to 60 minutes
- Interval Recording
-
- Field Scan 2X takes time-lapse images at selectable intervals from 1-60 minutes
- Two available time slots per day (such as dawn and dusk)
- Allows you to see patterns and change over time
- Useful for recording a wide range of subjects/events, including game, weather, plants, and construction site development
- Live motion trigger is still active during time-lapse capture, so it will capture images whenever it senses motion to prevent you from missing action in between time intervals
- Continuous Shooting
-
- Multi-Image Mode: Captures 2-3 images per trigger
- Flash
-
- A 48-LED No-Glow flash with an effective range of 80'
- Day/Night Sensor
-
- Automatic day/night sensor further helps with proper exposure, ensuring clear, crisp images in daylight and after dark
- Setup, Display, and Options
-
- 2.4" screen for viewing images or video in the field
- Geotags photos with GPS coordinates for game movement tracking
- Date, time, temperature, and moon phase stamping on images
- Memory
-
- Records photos and videos to user-supplied SD/SDHC memory cards up to 32GB
- Power
-
- Runs on 8 AA batteries, which can provide up to 12 months of power depending on usage and settings
- Can operate on 4 AA batteries on emergency power basis
- Mounting
-
- Integrated, 1/4"-20 threaded mount enables connection to a tripod or tree mount
- Includes adjustable web belt for an alternative way of attaching camera to tree or post
- Durability
-
- Weather-resistant housing for protection against elements during extended outdoor use
- Temperature Range: -5 to 140°F / -20 to 60°C
UPC: 029757198778 In the Box Bushnell Trophy Cam HD Aggressor No-Glow Trail Camera (Camo) Mounting Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Trophy Cam HD Aggressor No-Glow Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 119877C Specs | Camera Type | Time-Lapse/Trail/Wildlife | | | | Image Resolution | 24 MP | | Image File Format | JPEG | | Focus Type | Auto | | Built-In Flash | 48 x White No-Glow 940 nm Wavelength IR LEDs | | Effective Flash Range | 80' / 24.4 m | | Time/Date Stamp | Yes | | | | Sensor Type | Passive Infrared (PIR) | | Detection Range | 100' / 30.5 m | | Trigger Speed | 0.2 Seconds | | Sensitivity | Auto, Plus 3 Adjustable Settings | | | | Burst Capability | 1 Image per Trigger (Min)
3 Images per Trigger (Max) | | Interval Recording | 1 Second (Min)
60 Minutes (Max) | | | | Audio Recording | Yes | | Video Recording | Yes | | File Format | AVI | | Video Format | 1920 x 1080p | | Video Clip Length | 5 Seconds (Min)
60 Seconds (Max) | | | | Wired Connectivity | Mini-USB (Type B) | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Memory Card Type | SDHC (Up to 32 GB) | | Built-In Memory | 32 MB | | Battery Type | 4 x AA
8 x AA (Optional) | | Display | Yes, 2.4" / 6.1 cm | | Mounting | 1/4"-20 Female
Mounting Strap (Included) | | Dimensions | Not Specified by Manufacturer | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 8.8 x 5.8 x 3.4" |
