User Manual for Bushnell Trophy XLT 3-9x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Bushnell Trophy XLT 3-9x50 Riflescope
- Product category: Riflescopes Bushnell
- Brand: Bushnell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bushnell Riflescopes
 |
User manual for the Bushnell Trophy XLT 3-9x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bushnell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bushnell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bushnell product will considerably shorten its lifespan!
|

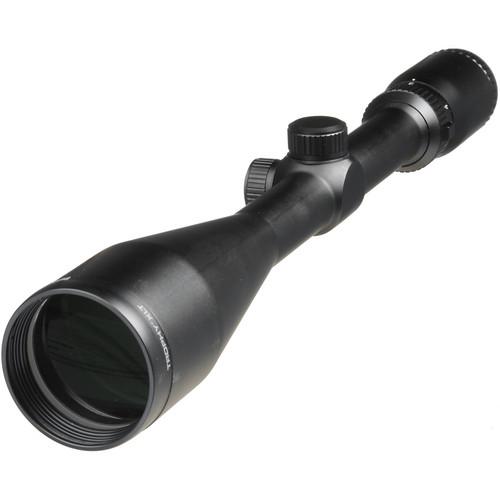

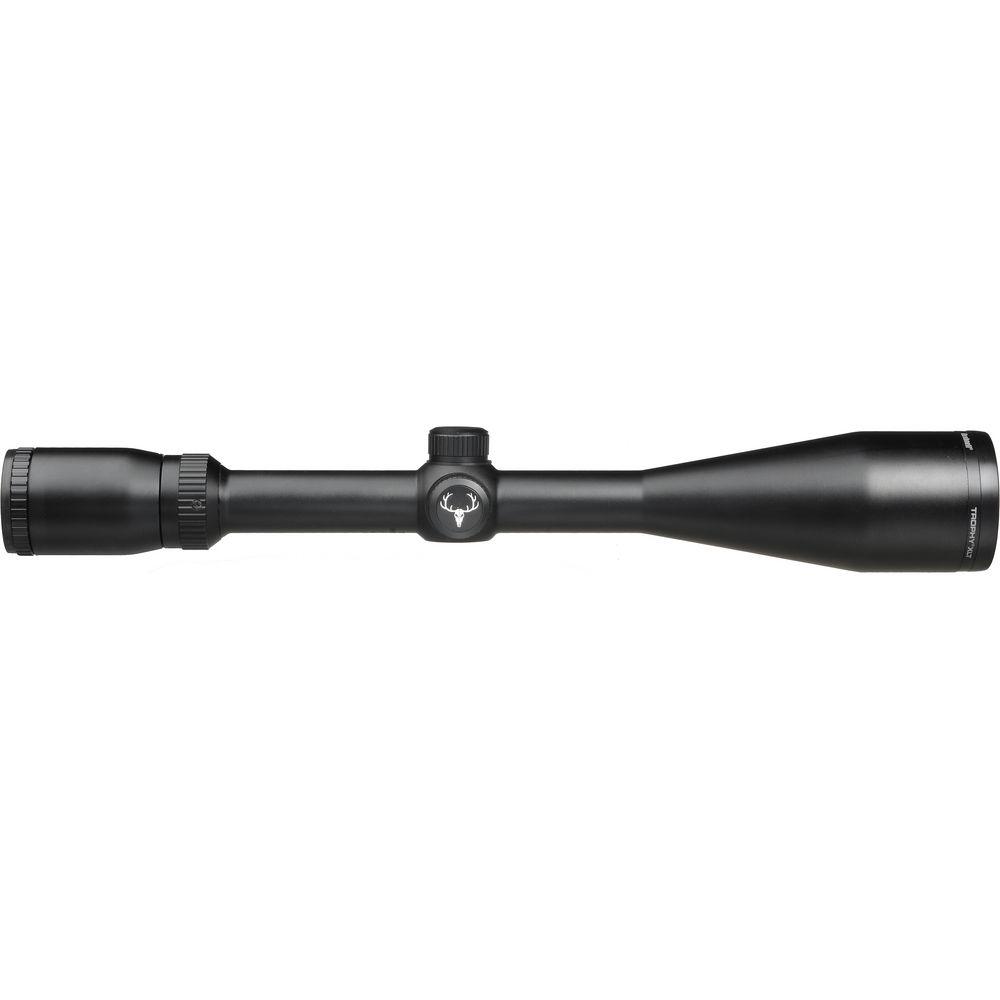

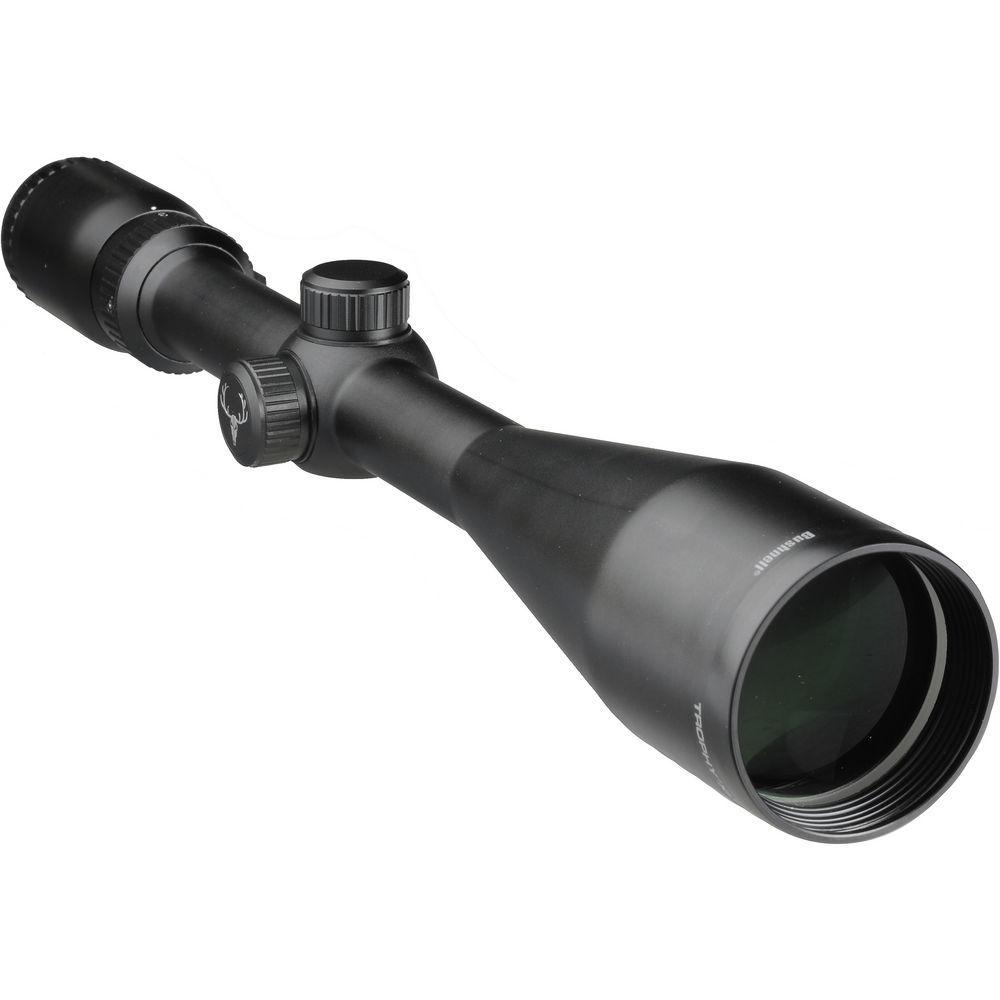

Product description The Trophy XLT 3-9x50 riflescope from Bushnell is durable, dependable, waterproof, and it comes with a pair of Butler Creek flip-up lens covers. With its 50 mm objective and a claim of 91% light transmission - the Trophy XLT delivers a bright sight picture all day long. The Trophy XLT's lenses are fully multicoated to ensure maximum light throughput for enhanced twilight performance. The rugged low-mounting 1.0" main-tube is sealed and filled with dry nitrogen for reliable all-weather performance. - Optical Performance
-
- Fully multicoated lenses provide up to 91% light transmission
- Use and Handling
-
- Fast-focus eyepiece for rapid target acquisition
- Precision adjustments: 1/4 MOA fingertip W&E correction
- Multi-X reticle: Four long posts create a narrow gate where fine cross hairs establish your exact point of aim
- Construction
-
- 1.0" Aluminum one-piece main-tube
- Nitrogen filled for waterproof and fogproof performance
- Durable shockproof construction for enhanced reliability

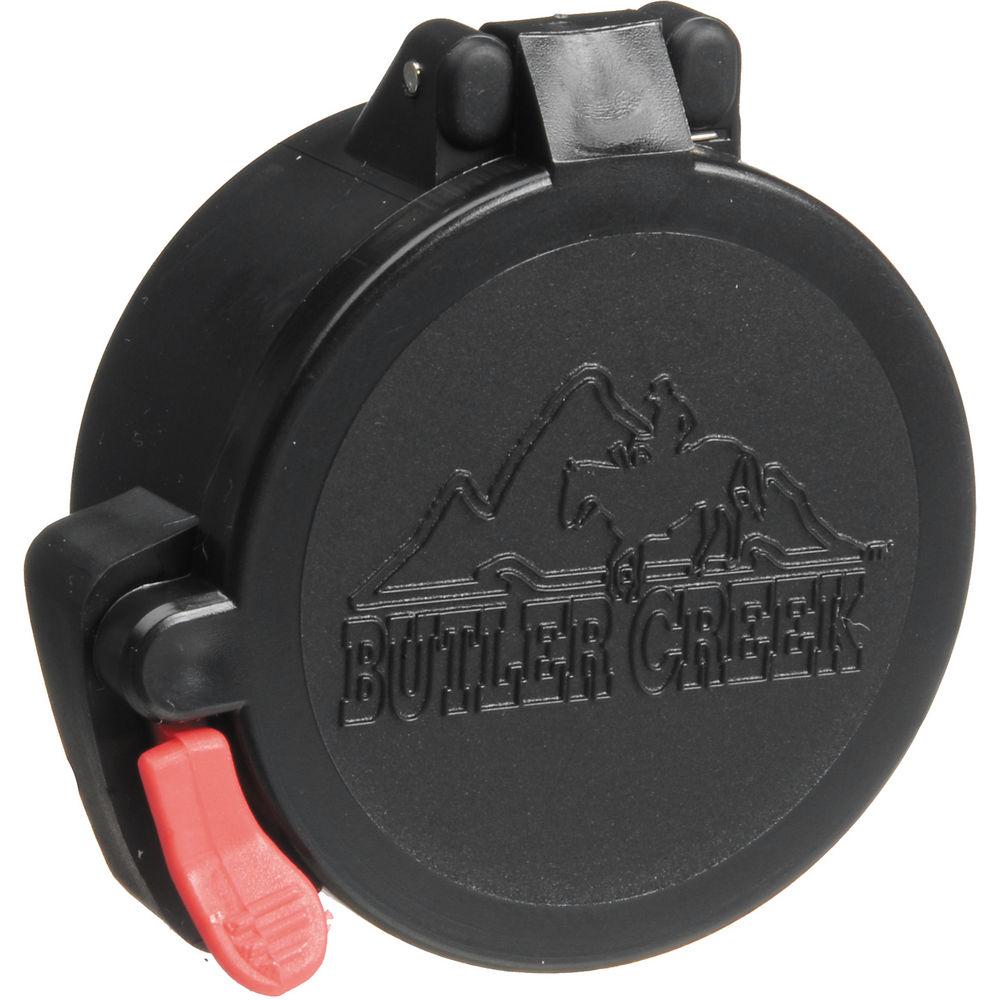

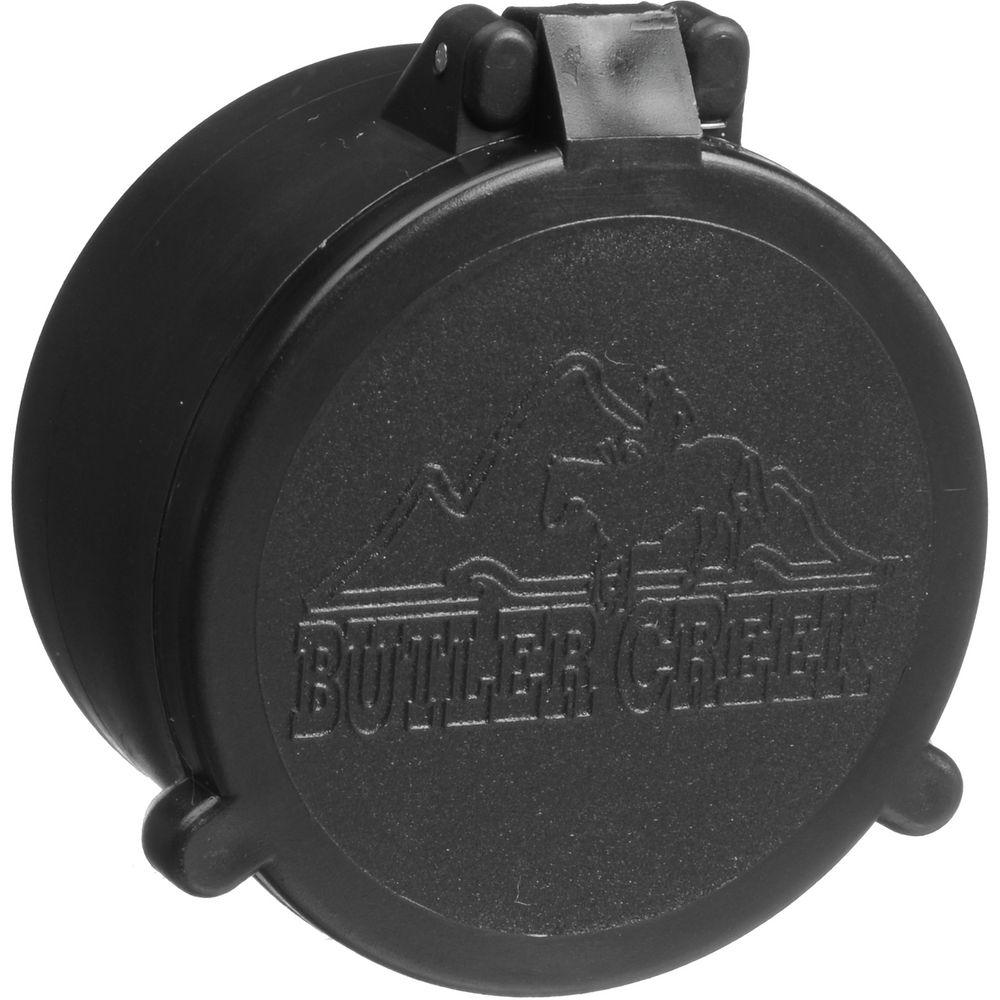

UPC: 029757733887 In the Box Bushnell Trophy XLT 3-9x50 Riflescope (Matte Black) Set of Butler Creek Flip-Up Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bushnell Trophy XLT 3-9x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBushnell 733951 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 1 m @ 100 m
9x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
9x: 5.6 mm | | Eye Relief | 4" / 101 mm | | | | Reticle Type | Multi-X Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 16.1" / 410 mm | | Weight | 19.2 oz / 545 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 17.5 x 3.3 x 3.2" |
