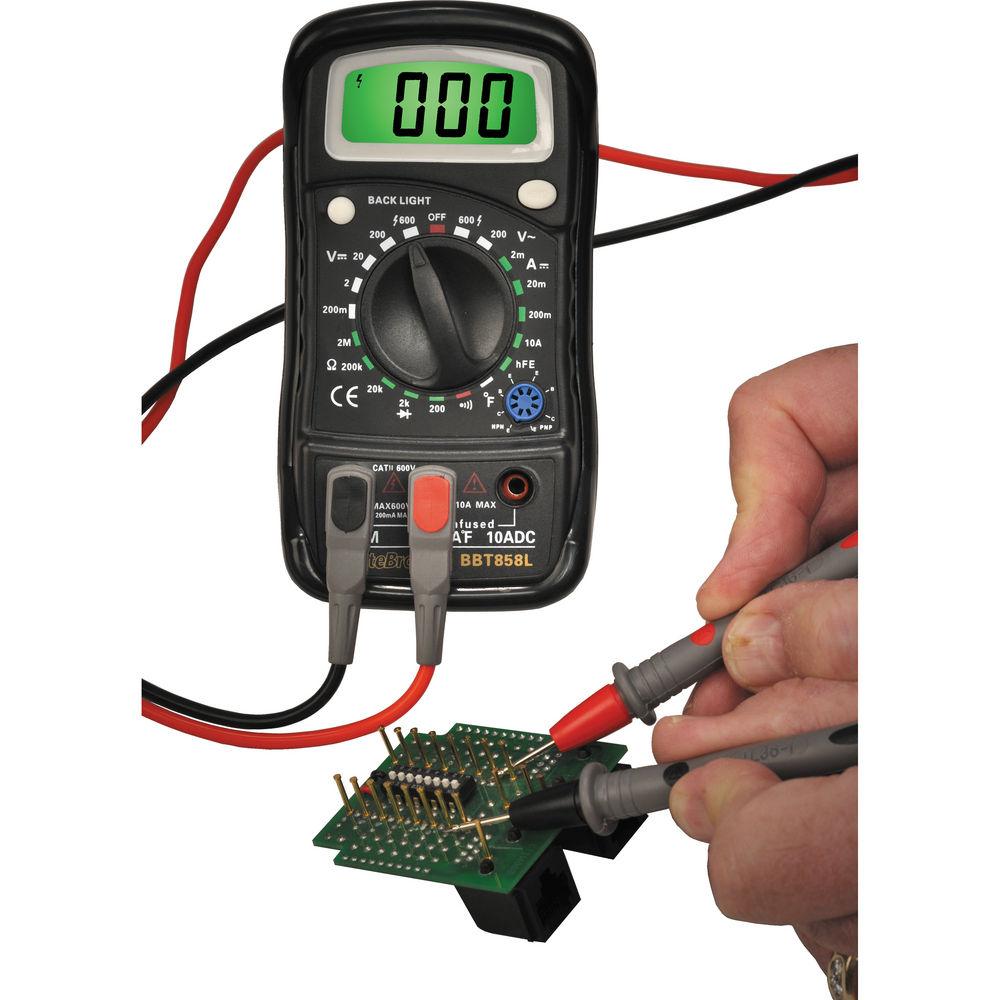

Product description The rugged and compact BBT858L Precision Data Hold Digital Multimeter from Byte Brothers is designed for indoor and outdoor use, and helps you measure resistance, amperage, voltage, and temperature. The 3.5-digit backlit LCD display provides a clear view of your readings. The built-in diode test and continuity buzzer let you focus on where you're placing the probes instead of trying to read the display. The soft silicon grip on the test leads make them easy to handle.
Suitable for low-voltage electronics and single-phase AC electrical testing, this multimeter can be used by electricians, technicians, or servicemen on a broad variety of equipment including electronics and electrical components, devices, fuses, alarms, and circuit boards. The integrated temperature probe makes this multimeter extremely useful for heating/cooling (HVAC) technicians as well. The included 9V battery, when at full charge, can power this device for up to 200 hours. - Helps you measure resistance, amperage, voltage, and temperature
- 3.5-digit backlit LCD display
- Built-in diode test and continuity buzzer
- Test leads with soft silicon grip

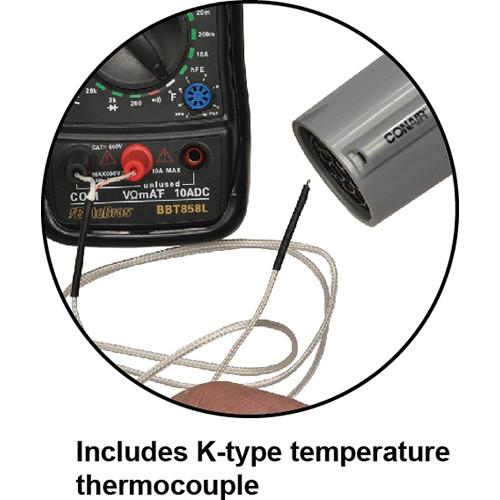

- Integrated temperature probe for heating/cooling (HVAC) technicians
- Included 9V battery can power this device for up to 200 hours

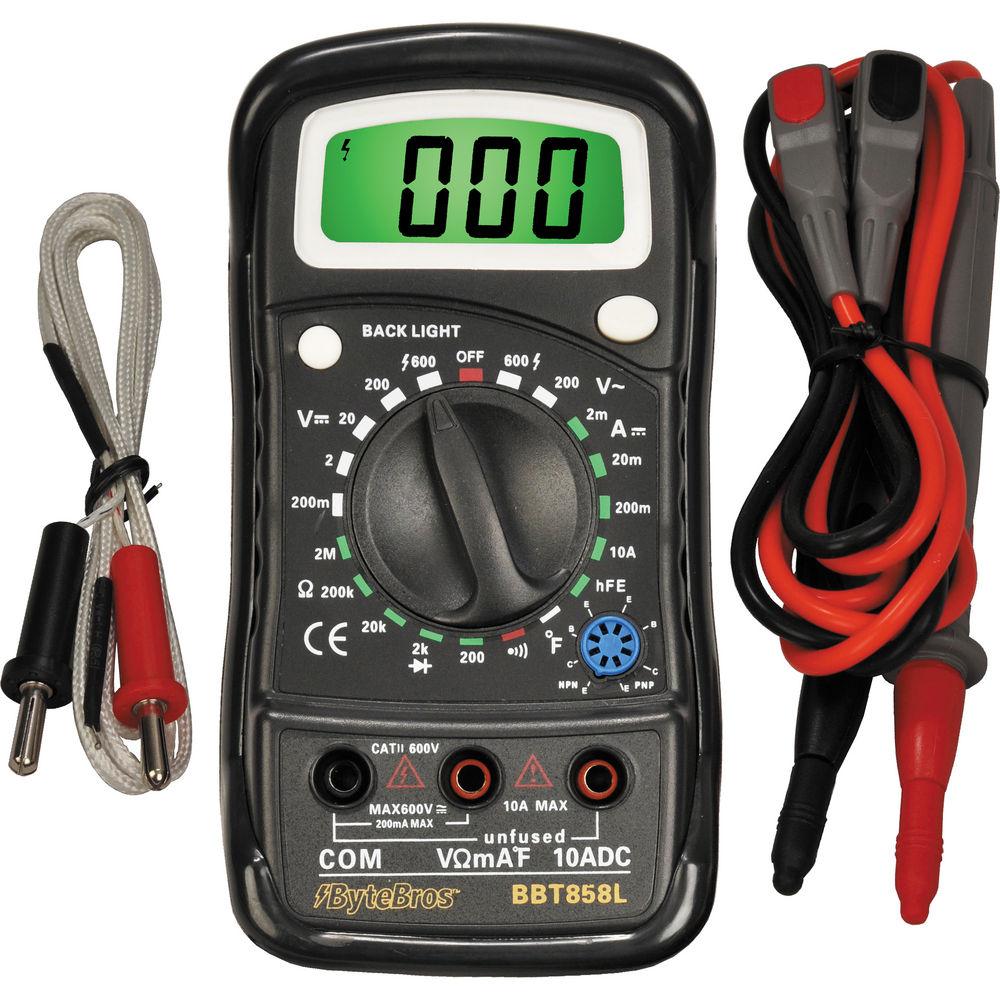

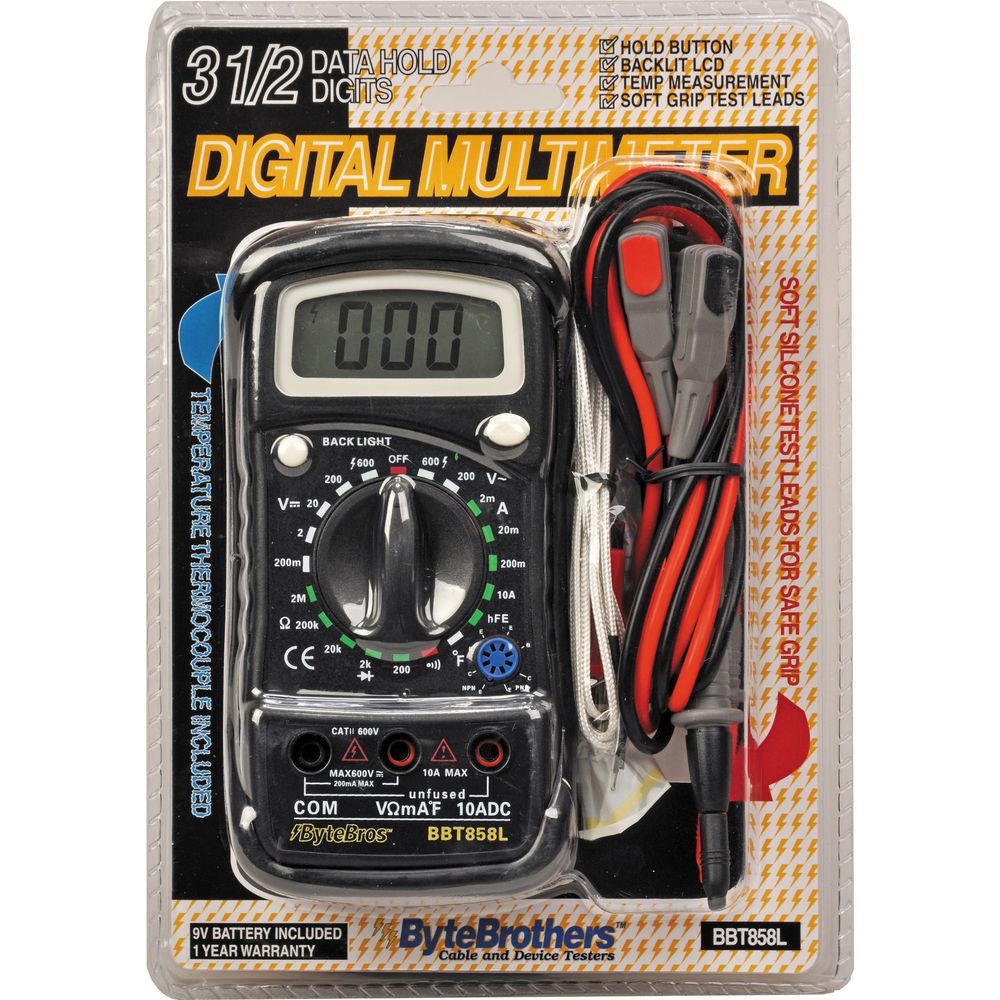

UPC: 749536562124 In the Box Byte Brothers BBT858L Precision Data Hold Digital Multimeter with Temperature Probe 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Byte Brothers BBT858L Precision Data Hold Digital Multimeter with Temperature Probe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersByte Brothers BBT858L Specs | DC Voltage | Accuracy: ±(0.5% of reading + 3 digits) at 200 mV
Resolution: 100 uV
Accuracy: ±(0.8% of reading + 2 digits) at 2 / 20 / 200 / 600 V
Resolution: 1 / 10 / 100 / 1000 mV Input impedance: 1 MΩ
Overload Protection: 600 VDC/peak AC on all ranges | | AC Voltage | Accuracy: ±(2% of reading + 10 digits) at 200 / 600 V (50 to 500 Hz)
Resolution: 100 / 1000 mV Input impedance: 1 MΩ
Overload Protection: 600 VDC/AC on all ranges | | Current | DC:
Accuracy: ±(1.8% of reading + 2 digits) at 200 uA / 2 mA / 20 mA
Resolution: 0.1 / 1 / 10 uA
Accuracy: ±(2% of reading + 2digits) at 200 mA
Resolution: 100 uA
Accuracy: ±(2% of reading + 10 digits) at 10 A
Resolution: 10 mA | | Temperature | Range: 0 to 1,300°F (-17.77 to 704.44°C)
Accuracy:
±1% ± 4d at 0 to 750°F (-17.77 to 398.88°C)
±1.5% ± 15d at 750 to 1,380°F (398.88 to 748.88°C)
Resolution: 1°F (-17.2°C) | | Resistance | Accuracy: ±(1% of reading + 10 digits) at 200 Ω
Resolution: 100 mΩ
Accuracy: ±(1% of reading + 4 digits) at 2 / 20 / 200 kΩ
Resolution: 1 / 10 / 100 Ω
Accuracy: ±(1% of reading + 4 digits) at 2 MΩ
Resolution: 1 kΩ Overload Protection: 500 VDC/rms AC on all ranges. | | Transistor | Range: NPN & PNP
Tested Range: 0 to 1000
Tested Current: Ib = 1 uA
Tested Voltage: Vcd = 3 V | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 1.5" |
