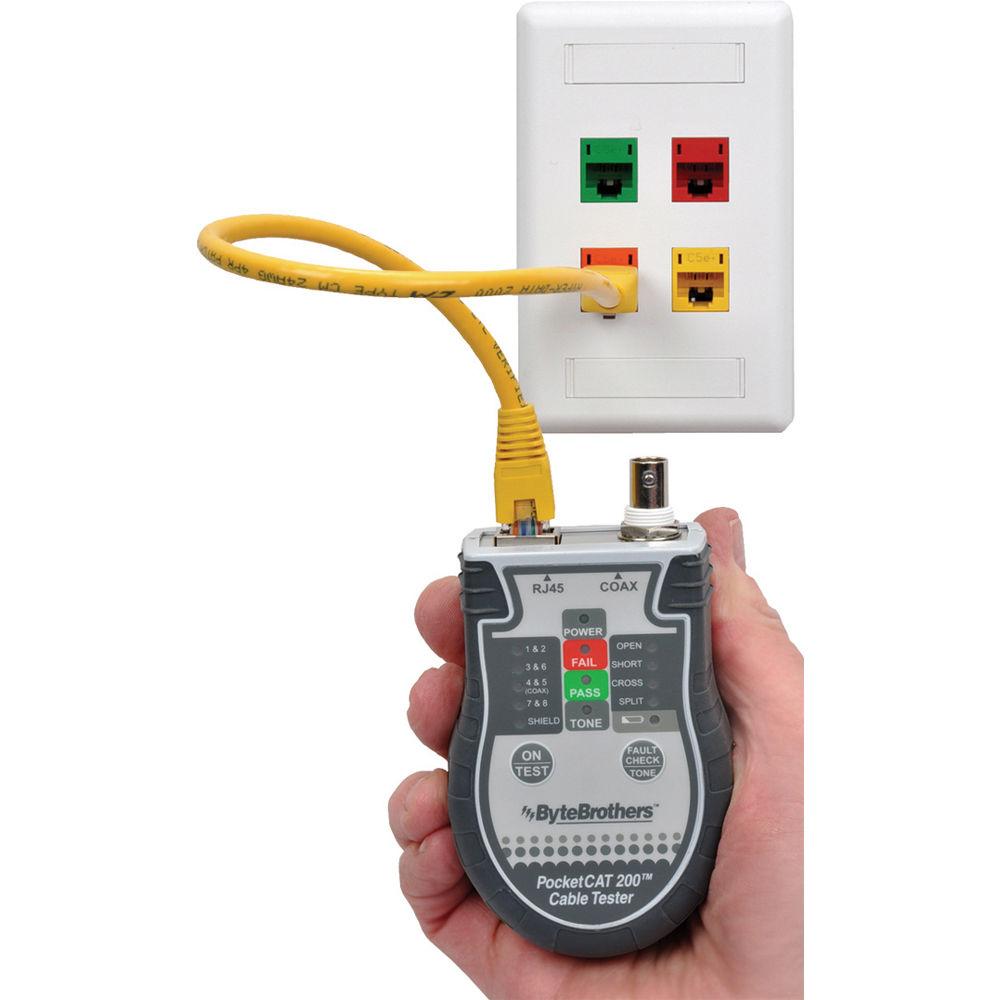

User Manual for Byte Brothers CTX200 Pocket CAT Click to enlarge the picture
Contents of the user manual for the Byte Brothers CTX200 Pocket CAT
- Product category: Cable Testers & Tone Generators Byte Brothers
- Brand: Byte Brothers
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Byte Brothers Cable Testers & Tone Generators
 |
User manual for the Byte Brothers CTX200 Pocket CAT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Byte Brothers product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Byte Brothers user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Byte Brothers product will considerably shorten its lifespan!
|

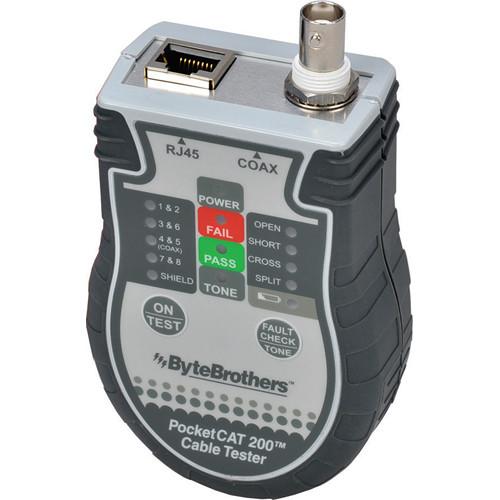

Product description The CTX200 Pocket CAT from Byte Brothers is a cable tester with connections for both RJ45 and Coax cables. It can test both Cat 5 and Cat 6 cables to TIA568 specifications, and a removable remote makes it possible to test both long and short cables. The RJ45 remote slides into an integrated drawer for easy storage. A Coax remote is included as well. The Pocket CAT can also send tone to trace cables, and it's compatible with most inductive toning probes. Pass/Fail results are displayed in one second. Tests for continuity, opens/shorts, reversals, and split pairs. - The status of each pair is displayed
- Turns off after 12 seconds to save battery
- Low battery indicator light
UPC: 749536544878 In the Box Byte Brothers CTX200 Pocket CAT 15" Cat 6 Cable Coax Remote RJ45 Remote Belt Clip Pouch 9 Volt Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Byte Brothers CTX200 Pocket CAT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersByte Brothers CTX200 Specs | Controls | 1x On/Test button
1x Fault Check/Tone button | | Indicator Lights | 1x Power LED
1x Fail LED
1x Pass LED
1x Tone LED
1x 1&2 LED
1x 3&6 LED
1x 4&5 Coax LED
1x 7&8 LED
1x Shield LED
1x Open LED
1x Short LED
1x Cross LED
1x Split LED
1x Battery LED | | Connectors | 2x RJ45 (one on main unit, one on remote)
2x Coax (one on main unit, one on separate remote) | | Power | 1x 9 Volt battery | | Dimensions | 4.5 x 2.8 x 1.5" (11.4 x 7 x 3.8 cm) | | Weight | With battery: 0.5 lb (0.2 kg) | | | | Package Weight | 0.72 lb | | Box Dimensions (LxWxH) | 9.35 x 7.1 x 3.55" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
