User Manual for Byte Brothers CTX200P Pocket CAT and Tone Probe Kit Click to enlarge the picture
Contents of the user manual for the Byte Brothers CTX200P Pocket CAT and
- Product category: Cable Testers & Tone Generators Byte Brothers
- Brand: Byte Brothers
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Byte Brothers Cable Testers & Tone Generators
|
User manual for the Byte Brothers CTX200P Pocket CAT and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Byte Brothers product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Byte Brothers user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Byte Brothers product will considerably shorten its lifespan!
|

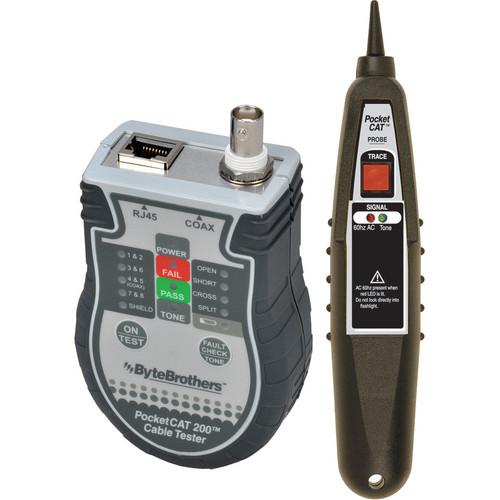

Product description The CTX200P Pocket CAT and Tone Probe Kit from Byte Brothers enables you to test RJ45 and Coax cables, as well as trace the location of cable connections. Cat 5 and Cat 6 cables are tested for continuity, opens/shorts, reversals, and split pairs to meet TIA568 specifications. The Pocket CAT features a removable remote that makes it possible to test both long and short cables. The RJ45 remote slides into an integrated drawer for easy storage. A Coax remote is included as well. The Pocket CAT displays Pass/Fail results in one second, and it can also generate tone.
The included inductive toning probe features a built-in speaker and a volume control, and can be used to trace the tone generated by the Pocket CAT. A bright LED on the insulated tip of the probe acts as a flashlight, which can be useful when searching for cable connections in dark areas. The probe is designed to filter out unwanted hum, so you can more clearly locate the tone being sent from the generator. - The status of each pair is displayed on the Pocket CAT
- The Pocket CAT turns off after 12 seconds to conserve battery life
- Low battery indicator light on Pocket CAT
- A red LED on the probe alerts you when 60 Hz AC power is sensed
- A green LED on the probe alerts you when the tone is detected, which is a useful visual cue when working in noisy environments
UPC: 749536543741 In the Box Byte Brothers CTX200P Pocket CAT and Tone Probe Kit 15" Cat 6 Cable Coax Remote RJ45 Remote Belt Clip Pouch 2 x 9 Volt Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Byte Brothers CTX200P Pocket CAT and Tone Probe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersByte Brothers CTX200P Specs | Controls | Pocket CAT:
1x On/Test button
1x Fault Check/Tone button
Probe:
1x Trace Button
1x Volume Control | | Indicator Lights | Pocket CAT:
1x Power LED
1x Fail LED
1x Pass LED
1x Tone LED
1x 1&2 LED
1x 3&6 LED
1x 4&5 Coax LED
1x 7&8 LED
1x Shield LED
1x Open LED
1x Short LED
1x Cross LED
1x Split LED
1x Battery LED
Probe:
1x Red LED
1x Green LED
1x White LED (flashlight) | | Connectors | 2x RJ45 (one on main unit, one on remote)
2x Coax (one on main unit, one on separate remote) | | Power | Pocket CAT: 1x 9 Volt battery
Probe: 1x 9 Volt battery | | Dimensions | Pocket CAT: 4.5 x 2.8 x 1.5" (11.4 x 7 x 3.8 cm)
Probe: 8 x 1.5 x 1.5" (20.3 x 3.8 x 3.8 cm) | | Weight | Pocket CAT, with battery: 0.5 lb (0.2 kg)
Probe, with battery: 0.3 lb (0.11 kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.9 x 6.0 x 2.8" |
