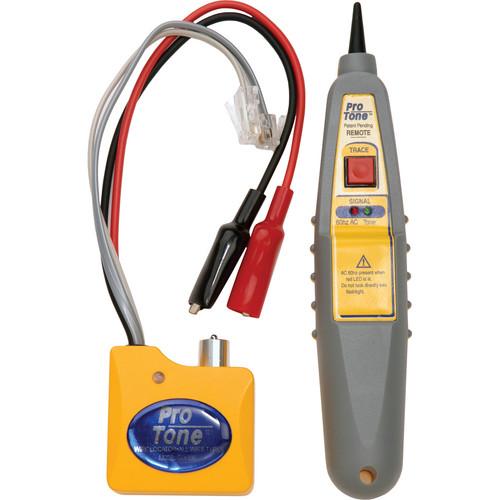

Product description The CTX590 ProTone Wire Locator Kit from Byte Brothers is the combination of a ProTone Probe and a ProTone Generator, which supplies you with everything you need to locate wires. The ProTone Generator connects to RJ11, RJ45 and copper wire via built-in alligator clips, and can be used to send tone through the wire, as well as testing the lines for voltage, polarity and continuity. The ProTone Probe is used at the other end of the line to locate the tone being sent by the ProTone Generator. The probe features a built-in speaker and volume control, and is designed to filter out unwanted hum, so you can more clearly locate the tone being sent from the generator. - The insulated tip of the ProTone Probe features a bright LED that can be used as a flashlight, which is useful in poorly lit environments
- A red LED on the ProTone Probe alerts you when 60 Hz AC power is sensed
- A green LED on the ProTone Probe alerts you when the tone is detected, which is a useful visual cue when working in noisy environments
- A bicolor LED on the generator turns red when positive DC is detected, green when negative DC is detected, and alternates between red and green when AC is detected
UPC: 749536546100 In the Box Byte Brothers CTX590 ProTone Wire Locator Kit 9 Volt Battery Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Byte Brothers CTX590 ProTone Wire Locator Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersByte Brothers CTX590 Specs | Controls | ProTone Generator:
1x Three-position switch: Off, Tone and Continuity
ProTone Probe:
1x Trace Button
1x Volume Control | | Indicator Lights | ProTone Generator:
1x Bicolor LED (red/green)
ProTone Probe:
1x Red LED
1x Green LED
1x White LED (flashlight) | | Connectors | ProTone Generator:
1x RJ11
1x RJ45
2x Alligator clips | | Power | 1x 9 Volt battery | | Dimensions | Probe: 8 x 1.5 x 1.5" (20.32 x 3.81 x 3.81 cm)
Generator: 2.5 x 1.5 x 2.5" (6.35 x 3.81 x 6.35 cm) | | Weight | Total weight of kit: 1 lb (0.45 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.7 x 5.7 x 1.8" |
