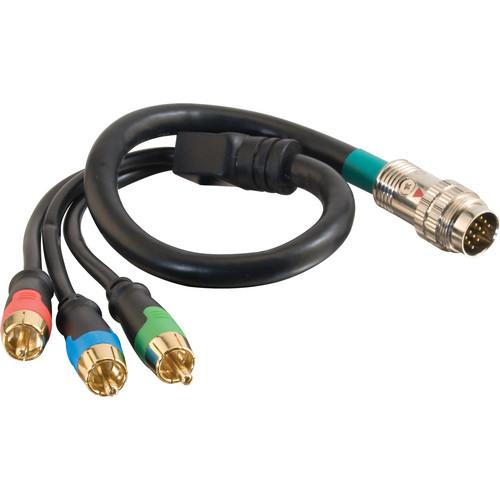

Product description The black 1.5’ RapidRun RCA Component Video Flying Lead from C2G is designed to be the standard for in-wall audio/video installations. The RapidRun system enables you to customize your installation to create your own audio/video solution. Break-away flying leads and wall plates ensure flexible, efficient, high-quality connections for all types of equipment.
You can use this flying lead when a component video connection is needed to connect to a receiver, projector, DVD player, or HD display. Whether hanging a projector in a classroom or installing a commercial digital signage system, a clean, crisp signal is delivered almost every time. Note: Each complete RapidRun solution requires a break-away flying lead (sold separately) or wall plate (sold separately) to terminate each end of the runner cable. For each runner you will need 2 x break-away flying leads, 2 x wall plates, or 1 x break-away flying lead and 1x wall plate. - For use with receivers, projectors, DVD players, HDTVs, or applications requiring a component video connection
- Color Code: Green (for use with both PC and multimedia runners)
- Supports 1080p resolution
- Connectors are color-coded red/green/blue for component video
- Fully molded connectors provide excellent strain relief
- Connector 1: 1 x RCA component video male
- Connector 2: 1 x RapidRun 12-pin male
- Applications: Personal/Home Entertainment: Connecting a cable/satellite/DVR receiver to an HDTV; Education (Learning) and Collaboration: Classroom setup for transmitting video from PC to a projector
In the Box C2G 1.5' RapidRun RCA Component Video Flying Lead (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 1.5' RapidRun RCA Component Video Flying Lead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 42087 Specs | Electrical | Impedance: 75 ± 5 Ω
Capacitance: 66.2 ± 5 pF/m nominal
Velocity of Propagation: 78 ± 1%
DC Resistance: 0.221 Ω / m at 68°F (20°C)
Dielectric Strength: 500 VAC / 1 minute: no breakdown
Insulation Resistance (500 V): 100 MΩ/KM at 68°F (20°C)
Attenuation: @ 1 MHz; Green Conductor: 0.24 dB/15 m; 0.85 dB/45 m
@ 10 MHz Green Conductor: 0.9 dB/15 m; 2.89 dB/45 m
@ 50 MHz Green Conductor: 2.23 dB/15 m; 6.55 dB/45 m
@ 100 MHz Green Conductor 3.23 dB/15 m; 9.49 dB/45 m
@ 200 MHz Green Conductor 4.87 dB/15 m; 14.21 dB/45 m
@ 400 MHz Green Conductor 7.75 dB/15 m; 21.83 dB/45 m
@ 700 MHz Green Conductor 12.0 dB/15 m; 31.24 dB/45 m
@ 1000 MHz Green Conductor 17.52 dB/15 m; 41.68 dB/45 m | | Conductors | Conductors (Quantity 5)
Conductor Type: 28 AWG 7/36 tinned copper
Insulation: Minimum average thickness: 0.19 mm
Foam FEP
Shield: Aluminum foil - 100% coverage
Braided tinned copper 42 ± 3/0.12 85% minimum coverage
Jacket: Minimum average thickness: 0.02” (0.70 mm)
Green PVC
RCA Connector (Quantity 3)
Connector Type: RCA
Gender: Male
Contact Material: Brass with 3 µm gold plating
Insulation: White PBT
RapidRun DIn Connector (Quantity 1)
Connector Type: DIN 12-pin
Gender: Male
Contact Material: Brass with 3 µm gold plating
Insulation: Black PBT | | Cable | AL Mylar Shield: 100% coverage
Braided Shield: 85 % coverage (42 ± 3/0.12 tinned copper)
Drain Wire: 7/34 AWG tinned copper
Jacket: PVC-CL2 rated
Minimum Average Thickness: 0.02” (0.70 mm) minimum O.D.: 9.5 ± 0.15 mm
Green heat shrink | | Physical | Voltage Rating: 30 V
Temperature Rating: 176°F (80°C)
Temperature Range: -13 to 176°F (-25 to 80°C)
Minimum Bend Radius: 135 ± 5 mm
Length: 1.5’ (0.4 m)
Weight: 0.260 lb (0.117 kg) |
