User Manual for C2G 14' Cat6 Snagless UTP Unshielded Network Patch Cable Click to enlarge the picture
Contents of the user manual for the C2G 14' Cat6 Snagless UTP Unshielded
- Product category: Ethernet Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Ethernet Cables
|
User manual for the C2G 14' Cat6 Snagless UTP Unshielded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

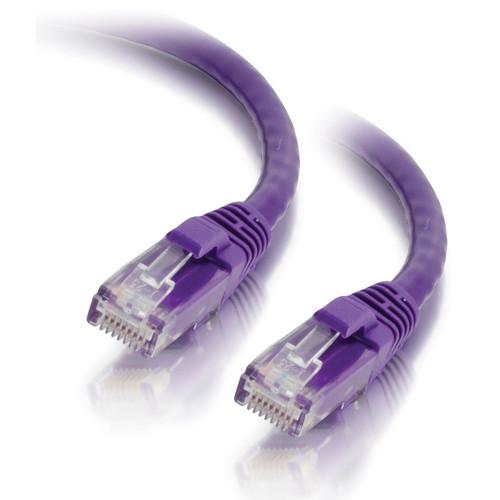

Product description The purple 14' Cat6 Snagless UTP Unshielded Network Patch Cable from CablesToGo is designed for voice/data/video distribution and can handle bandwidth-intensive applications. This cable drastically reduces both impedance and Structural Return Loss (SRL) to provide error-free transmission. Furthermore, the cable meets all Cat6 TIA/EIA-568-B-2.1 and draft 9 standards. Each individual pair is bonded together to help maintain the twist spacing throughout the line right up to the termination point. Constructed from high-quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. Moreover, the molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. UPC: 757120278047 In the Box C2G 14' Cat6 Snagless UTP Unshielded Network Patch Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 14' Cat6 Snagless UTP Unshielded Network Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 27804 Specs | Jacket | PVC | | Minimum Average Thickness | 0.02" (0.60 mm) | | Outer Diameter | 6.20 ± 0.30 mm | | Conductor | Type: 24 AWG (7/0.20), stranded bare copper | | Conductor Insulation | High-Density Polyethylene (HDPE) | | Diameter | 0.98 ± 0.05 mm | | | | Conductor DC Resistance | 9.38 Ω 100 m (maximum) | | Impedance | 100 Ω | | Capacitance | 5600 pF/100 m | | Propagation Delay | 545 ns/100 m (maximum) | | Delay Skew | 45 ns/100 m (maximum) | | | | Type | 8P8C (RJ-45) | | Connector 1 | 1 x RJ-45 male | | Connector 2 | 1 x RJ-45 male | | | | Connector | Polycarbonate | | Contact | Copper alloy, 50 micron gold plated RJ-45 | | Hood | Molded PVC | | | | Voltage | 30 V | | Temperature Rating | 140°F (60°C) | | | | Applications | Gigabit 1000 BASE-T/100 BASE-T/10 BASE-T (IEEE 802.3)
4/16 Mb/s Token Ring (IEEE 802.5)/100 VG-AnyLAN
100 Mb/s TP-PMD (ANSI X3T9.5): 55/155 Mb/s ATM
Voice: T1 | | Wiring Scheme | T568B | | Length | 14' (4.3 m) | | Weight | 0.41 lb (0.19 kg) | | Standards | Category 6 TIA/EIA-568-B-2.1, draft 9 | | RoHS Compliant | Yes | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.6 x 5.8 x 2.1" |
