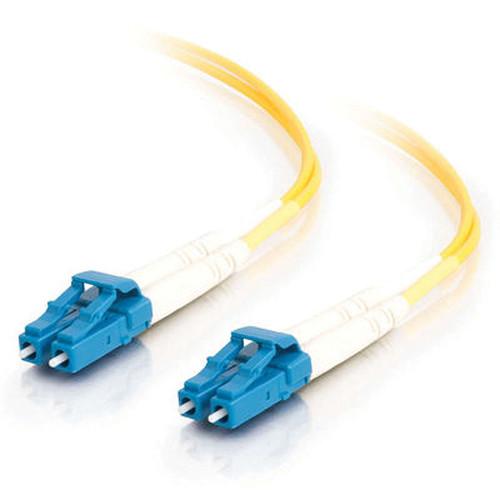

User Manual for C2G 16.4' LC LC Duplex 9 125 Single Mode Fiber Patch Cable Click to enlarge the picture
Contents of the user manual for the C2G 16.4' LC LC Duplex 9
- Product category: Fiber Channel Cables & Adapters C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Fiber Channel Cables & Adapters
|
User manual for the C2G 16.4' LC LC Duplex 9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The 16.4' (5 m) LC/LC Duplex 9/125 Single Mode Fiber Patch Cable (Yellow) from CablestoGo has LC to LC termination. This high-quality fiber optic patch cable is specifically designed for fast ethernet, fiber channel, Infiniband, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area and offer twice the port density of traditional SC and ST fiber connectors.
The LC connector with its RJ-style latch clip design is easy to engage and disengage and provides each connection with greater durability in resisting pulls, strains, snags and impacts during cabling installs and maintenance. The patented injection molding process provides each connection with greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, which is immune to electrical interference. - 9/125 micron cable for gigabit Ethernet applications
UPC: 757120265665 In the Box C2G 16.4' (5 m) LC/LC Duplex 9/125 Single Mode Fiber Patch Cable (Yellow) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 16.4' LC LC Duplex 9 125 Single Mode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 26566 Specs | Maximum Connector Loss | 0.50 dB | | Typical Connector Loss | 0.30 dB | | Typical Return Loss | -25 dB | | Buffer Material | PVC | | Buffer OD | 900 µm | | Jacket Material | PVC (OFNR Riser-Rated) | | Jacket OD | 1.8 mm | | Installation Tensile Load | 445 lb (100 N) | | Long-Term Tensile Load | 222 lb (50 N) | | Maximum Tensile Load | 100 N/cm | | Minimum Bend Radius | Installation (Loaded): 1.97" (5 cm)
Long-Term (Unloaded): 1.2" (3 cm) | | Crush Resistance | 750 N/cm | | Impact Resistance | 1,000 Cycles | | Flex Resistance | 5,000 Cycles | | Attenuation at 1300 nm | 1.0 dB/km | | Attenuation at 850 nm | 3.5 dB/km | | Operating Temperature | -4 ~ 158° F (-20 ~ +70° C) Attenuation testing performed in accordance with EIA/TIA-455-171A. | | Color | Yellow | | Connector 1 | LC Male | | Connector 2 | LC Male | | Dimension (DxWxH) | LC Connector: 1.96 x 0.94 x 0.42" (50 x 12.5 x 10.75 mm) (with Installed Duplex Clip) | | Length | 16.4' (5 m) | | Weight | 0.11 lb (49.89 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 0.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
