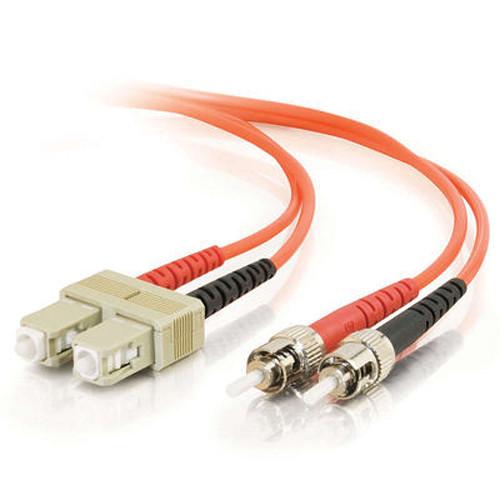

Product description The 16.4' (5 m) SC/ST Duplex 62.5/125 Multimode Fiber Patch Cable (Orange) from CablestoGo has SC to ST termination. This high-quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications.
The SC connector features a push-pull locking system while the ST connector features a bayonet locking system. The patented injection molding process provides each connection with greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, which is immune to electrical interference. - Applications
- Gigabit ethernet FDDI Multimedia ATM or Any application that requires high speed data transfer
UPC: 757120091349 In the Box C2G 16.4' (5 m) SC/ST Duplex 62.5/125 Multimode Fiber Patch Cable (Orange) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 16.4' SC ST Duplex 62.5 125 Multimode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 09134 Specs | Cable Type | Optical Multimode 1 (OM1) fiber | | Maximum Connector Loss | 0.50 dB | | Typical Connector Loss | -25 dB | | Buffer Material | PVC | | Buffer OD | 900 µm | | Jacket Material | PVC (OFNR Riser-Rated) | | Jacket OD | 2.8 mm | | Installation Tensile Load | 445 lb (100 N) | | Long-Term Tensile Load | 222 lb (50 N) | | Maximum Tensile Load | 100 N/cm | | Minimum Bend Radius | Installation (Loaded): 1.97" (5 cm) Long-Term (Unloaded): 1.2" (3 cm) | | Crush Resistance | 750 N/cm | | Impact Resistance | 1,000 Cycles | | Flex Resistance | 5,000 Cycles | | Attenuation at 1300 nm | 1.0 dB/km | | Attenuation at 850 nm | 3.5 dB/km | | Operating Temperature | -4 ~ 158°F (-20 ~ +70°C) Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A. | | Color | Orange | | Connector 1 | SC Male | | Connector 2 | ST Male | | Dimension (DxWxH) | SC Connector: 2.28 x 1.02 x 0.41" (58 x 26 x 10.6 mm) (with Installed Duplex Clip)
ST Connector:2.32 x 0.77 x 0.38" (59 x 19.6 x 9.8 mm) | | Length | 16.4' (5m) | | Weight | 0.21 lb (95.25 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 0.5" |
