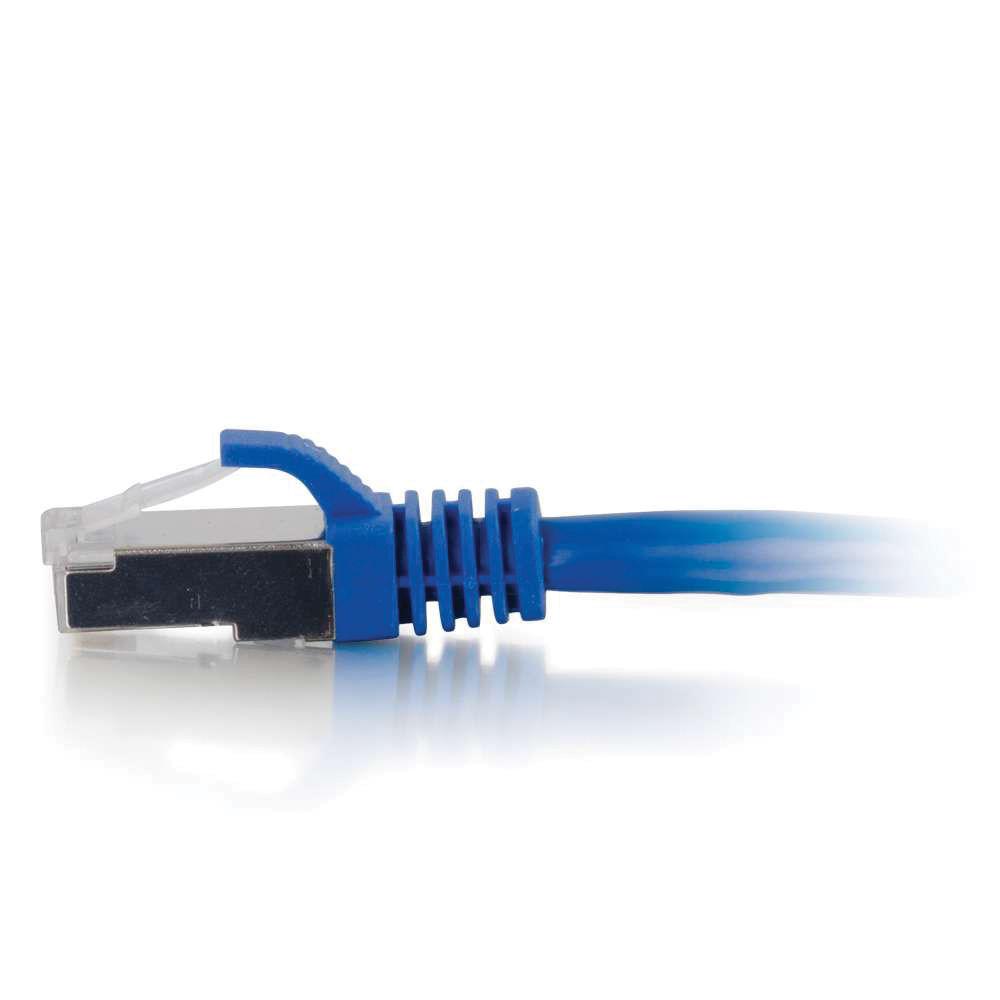

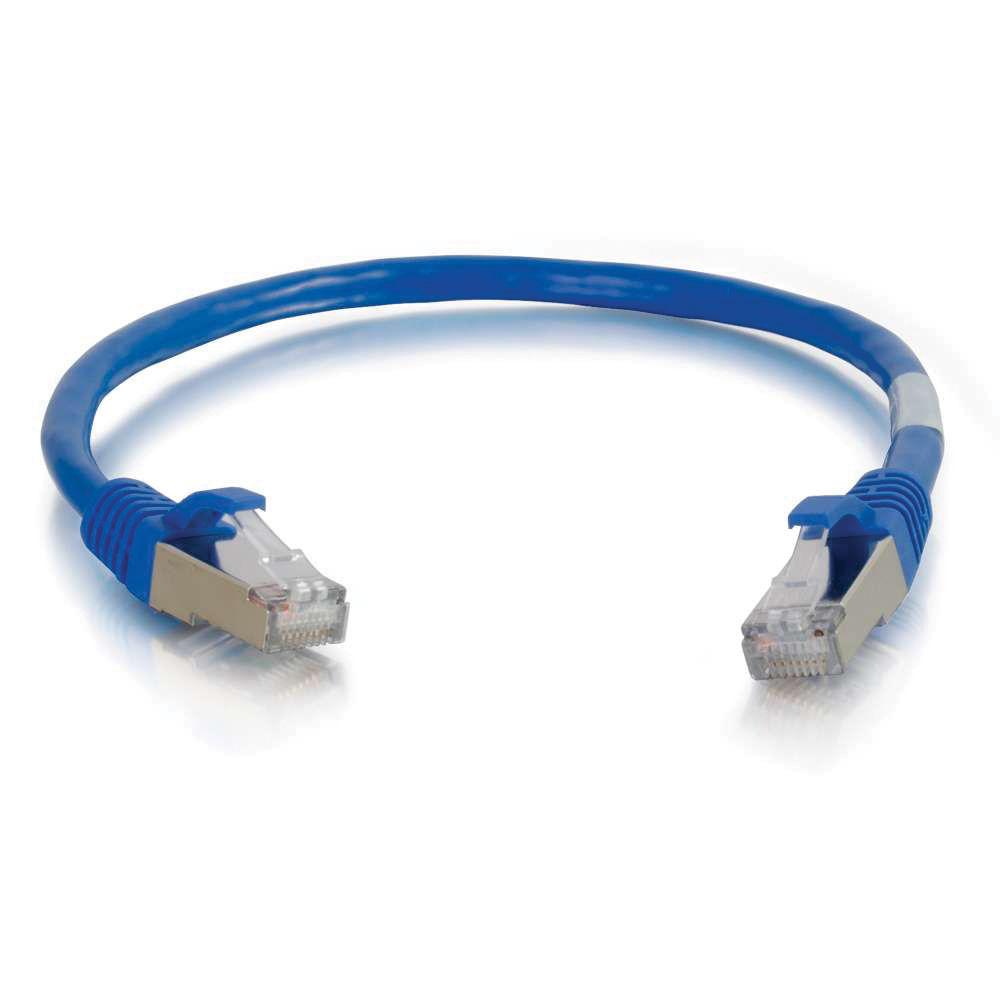

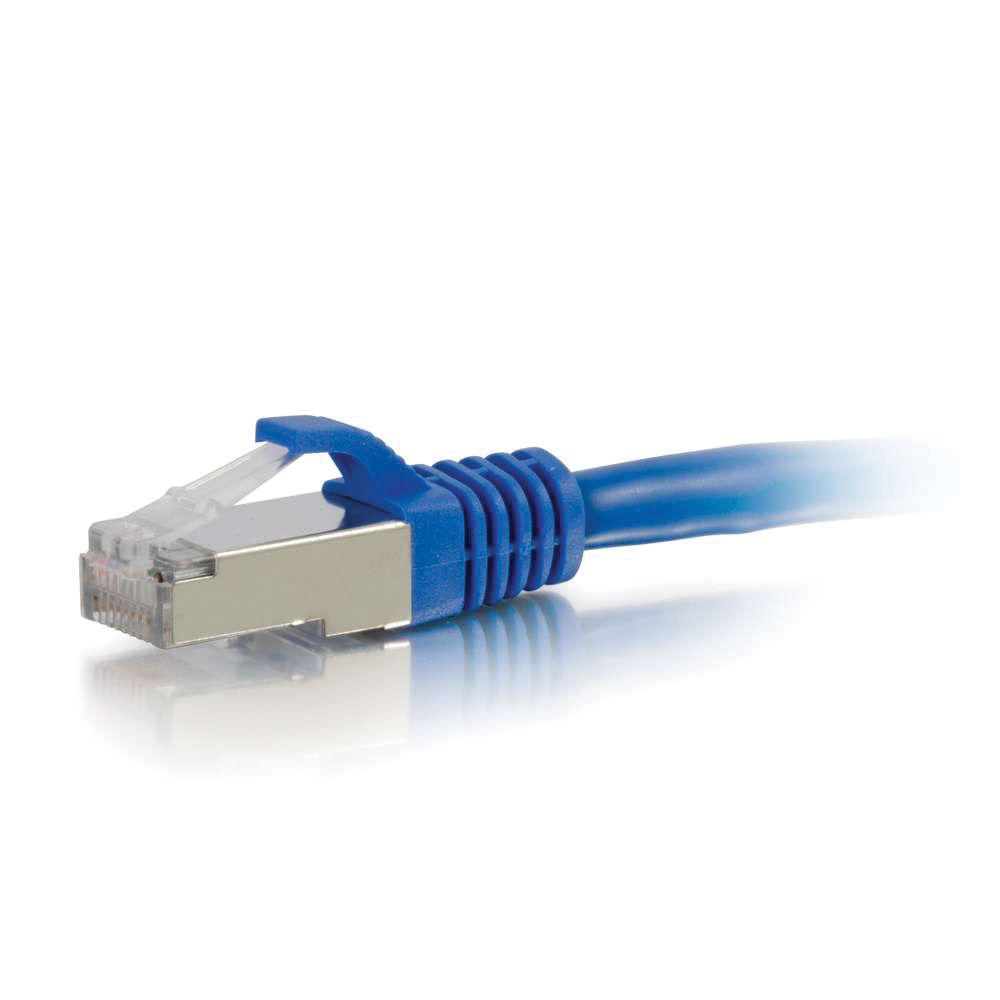

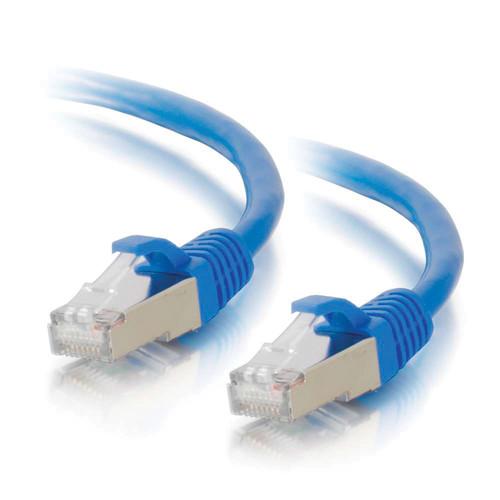

Product description The blue C2G 3' Cat6A Snagless Shielded (STP) Network Patch Cable from C2G is designed to work with 10GBase-T ports and equipment like routers, hubs, switches, network adapters, DSL/cable modems, and patch panels. It will protect high speed 10 Gigabit network connection from electromagnetic interference and noise. The cable can handle high bandwidth applications and reduce both structural return loss and impedance for voice/data/video distribution.
Each of the cable pairs is bonded to maintain the twist spacing from connector to connector. The cable is designed to minimize Near-End Crosstalk (NEXT) levels. The cable is tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. UPC: 757120006749 In the Box C2G 3' Cat6A Snagless Shielded (STP) Network Patch Cable (Blue) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 3' Cat6A Snagless Shielded Network Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 00674 Specs | Cable Type | Stranded SSTP | | Wiring Scheme | 568B | | Temperature Rating | 167°F (75.0°C) | | Testing Types | ANSI/TIA 568 C.2 Cat6a component tested | | Conductor (4 Pair) | Type: 26 AWG (7/0.16) (bare copper)
Insulation: FM-PE
Twist Pair: Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown | | | | Conductor DC Resistance | 9.38 Ω | | Impedance | 100 Ω | | Capacitance | 5600 pf / 100 m | | Propogation Delay | 545 ns / 100 m (maximum) | | Delay Skew | 45 ns / 100 m (maximum) | | | | Wiring Scheme | T568B | | Voltage Rating | 30 V | | Approvals | CE | | Package Type | Polybag | | | | Foil Shield | Aluminum foil (100% coverage) | | Braided Shield | Copper braid (40% coverage) | | Jacket | PVC | | OD | 6.2 ± 0.20 | | | | Connector 1 | 8P8C (RJ-45) Male | | Connector 2 | 8P8C (RJ-45) Male | | Shell | Nickel plated for shielding | | Housing | Polycarbonate, UL94V-0 | | Contacts | 50 µm Gold Plated | | Hood | Molded Snagless PVC, UL94V-0 | | Length | 3' / 0.9 m | | Dimensions | 1.5 x 0.5 x 0.6" / 38.2 x 11.6 x 15.1 mm | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 9.3 x 5.2 x 0.5" |
